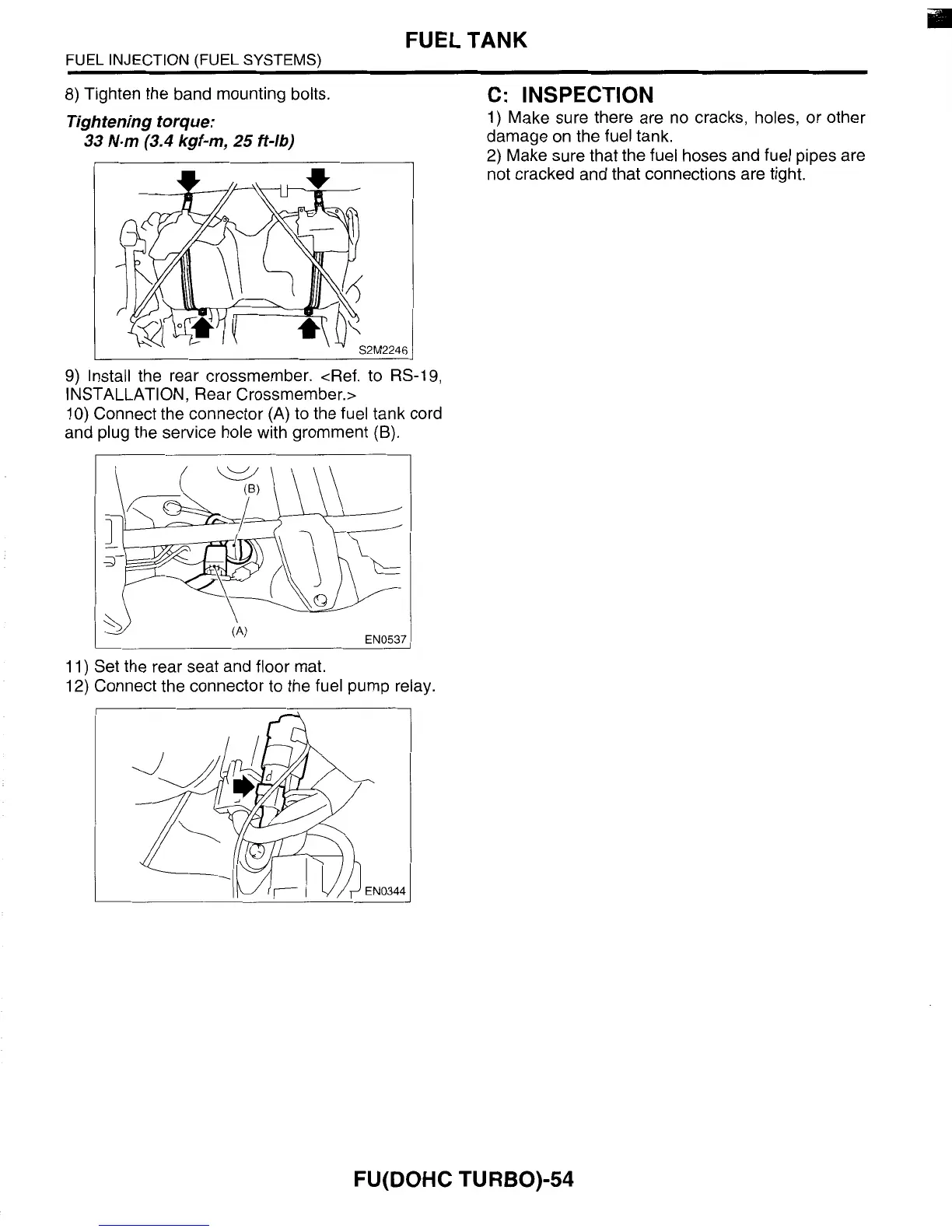

FUEL TANK
FUEL INJECTION (FUEL SYSTEMS)
8)
Tighten the band mounting
bolts.
Tightening torque:
33
N-m
(3.4
kgf-m,
25
ft-lb)
2M2246
9)
Install the rear crossmember. <Ref.
to
RS-19,
INSTALLATION, Rear Crossmember.>
10) Connect the connector (A)
to the fuel tank cord
and plug the service hole with gromment
(B).
EN053i
11)
Set the rear seat and floor mat.
12)
Connect the connector
to
the fuel pump relay.
C: INSPECTION
1)
Make sure there are no cracks, holes, or other
damage on the fuel tank.
2)
Make sure that the fuel hoses and fuel pipes are
not cracked and that connections are tight.
FU(D0HC TURBO)-54
