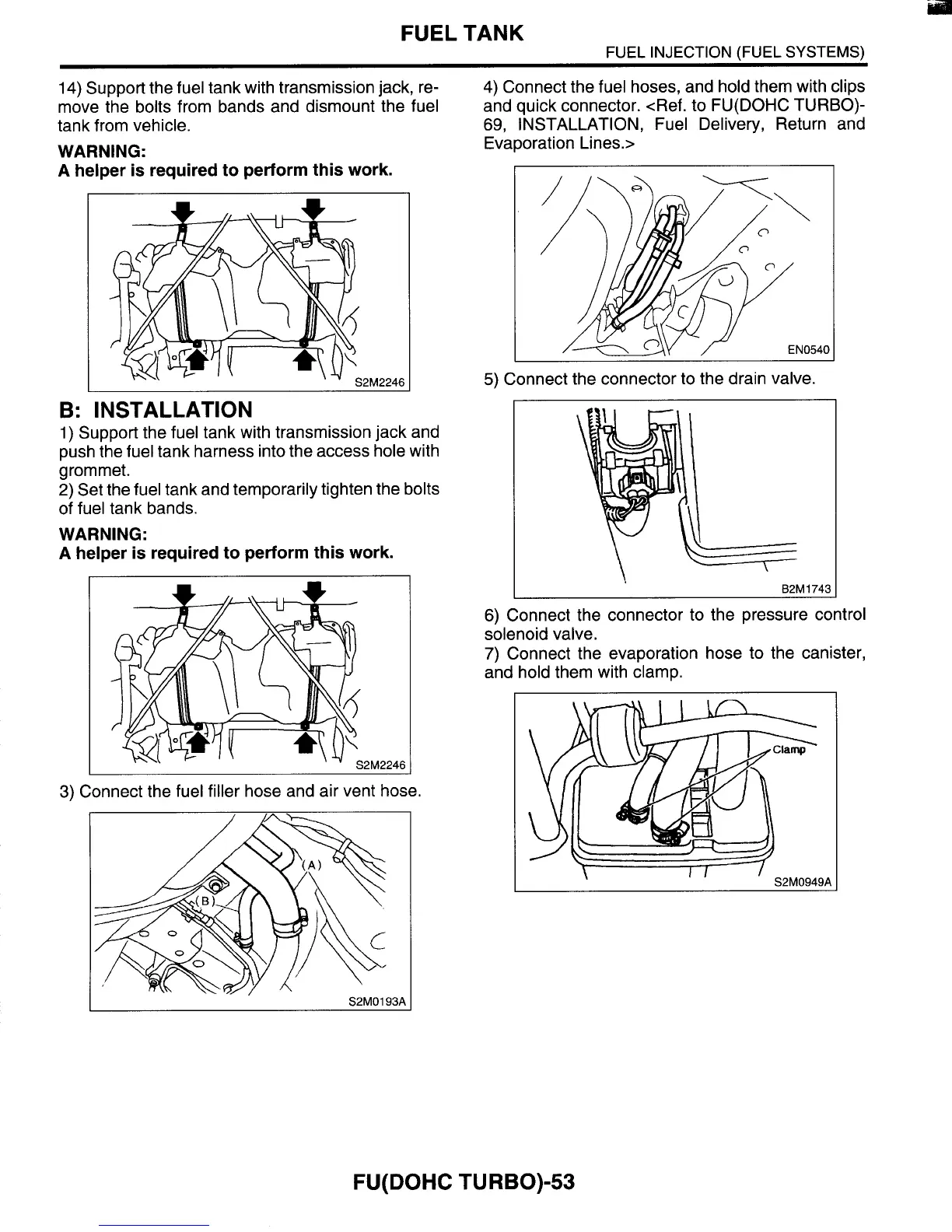

FUEL TANK
FUEL
INJECTION
(FUEL SYSTEMS)
14)
Support the fuel tank with transmission jack, re-
move the bolts from bands and dismount the fuel
tank from vehicle.
WARNING:
A
helper is required to perform this work.
4)
Connect the fuel hoses, and hold them with clips
and quick connector. <Ref. to FU(D0HC TURBO)-
69,
INSTALLATION, Fuel Delivery, Return and
Evaporation Lines.>
5)
Connect the connector
to
the drain valve.
B:
INSTALLATION
1)
Support the fuel tank with transmission jack and
push the fuel tank harness into the access hole with
grommet.
2)
Set the fuel tank and temporarily tighten the bolts
of fuel tank bands.
WARNING:
A
helper is required to perform this work.
02M
1743
3)
Connect the fuel filler hose and air vent hose.
S2M0193A
6)
Connect the connector to the pressure control
solenoid valve.
7)
Connect the evaporation hose to the canister,
and hold them with clamp.
I
S2M0949A
\
I/
FU(D0HC TURBO)-53
