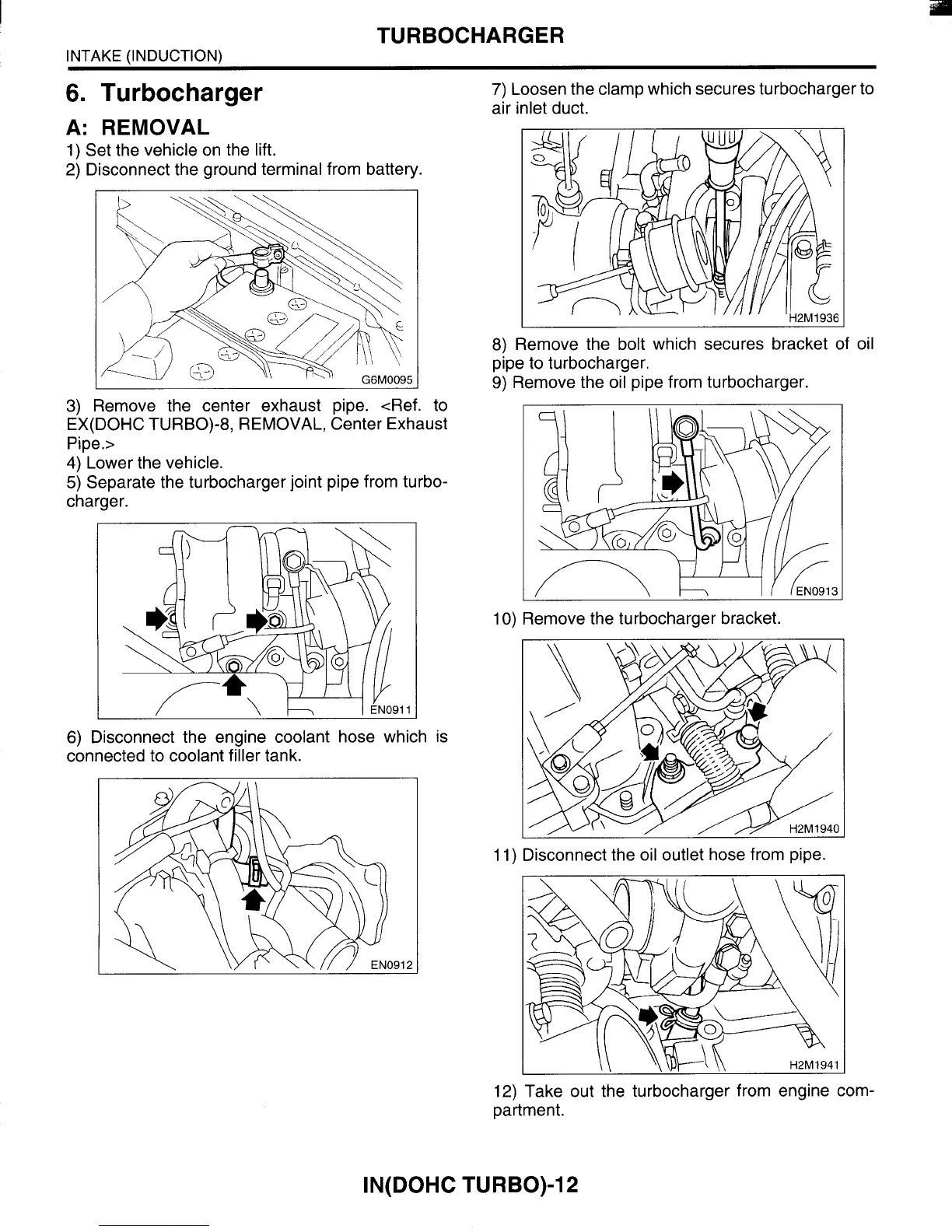

TURBOCHARGER
INTAKE
(INDUCTION)
6.
Turbocharger
A:
REMOVAL
1)
Set the vehicle on the lift.
2)
Disconnect the ground terminal from battery.
3)
Remove the center exhaust pipe. <Ref. to
EX(D0HC TURBO)-8, REMOVAL, Center Exhaust
Pipe.>
4)
Lower the vehicle.
5)
Separate the turbocharger joint pipe from turbo-
charger.
6)
Disconnect the engine coolant hose which is
connected to coolant filler tank.
7)
Loosen the clamp which secures turbocharger to
air inlet duct.
8) Remove the bolt which secures bracket of
oil
pipe to turbocharger.
9)
Remove the oil pipe from turbocharger.
3
10)
Remove the turbocharger bracket.
11)
Disconnect the oil outlet hose from pipe.
12)
Take out the turbocharger from engine com-
partment.
IN(D0HC TURBO)-12
