INTAKE (INDUCTION)
TURBOCHARGER
B:

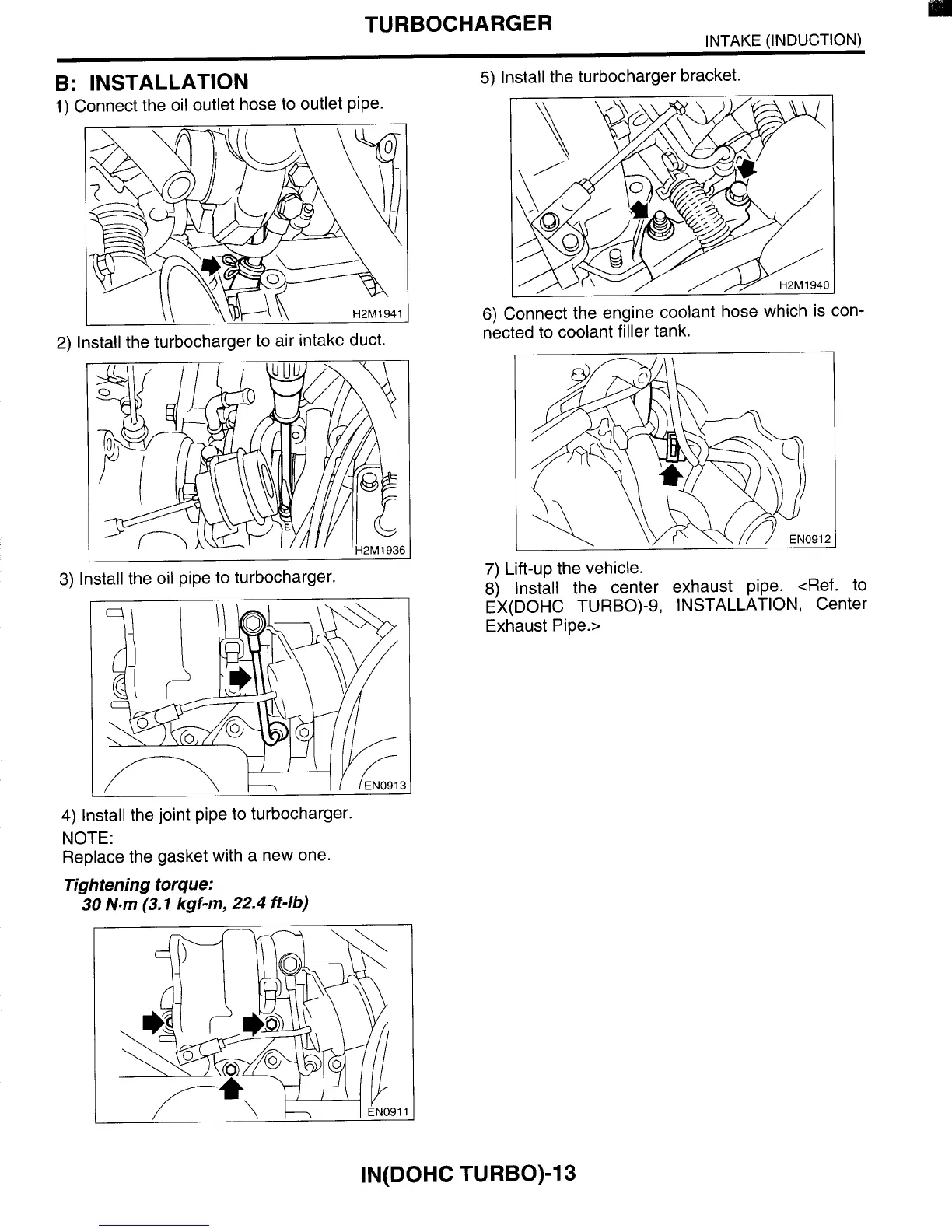

INSTALLATION
1)
Connect the oil outlet hose to outlet pipe.
2)
Install the turbocharger to air intake duct.
3)
Install the oil pipe to turbocharger
/
I
I
/ENOW:
4) Install the joint pipe to turbocharger.
NOTE:
Replace the gasket with a new one.
Tightening torque:
30
N.m
(3.1
kgf-m,
22.4
ft-lb)
I
EN0911
5)
Install the turbocharger bracket.
6)
Connect the engine coolant hose which is con-
nected to coolant filler tank.
I
.
7)
Lift-up the vehicle.
8) Install the center exhaust pipe. <Ref. to
EX(D0HC TURBO)-9, INSTALLATION, Center
Exhaust Pipe.>
