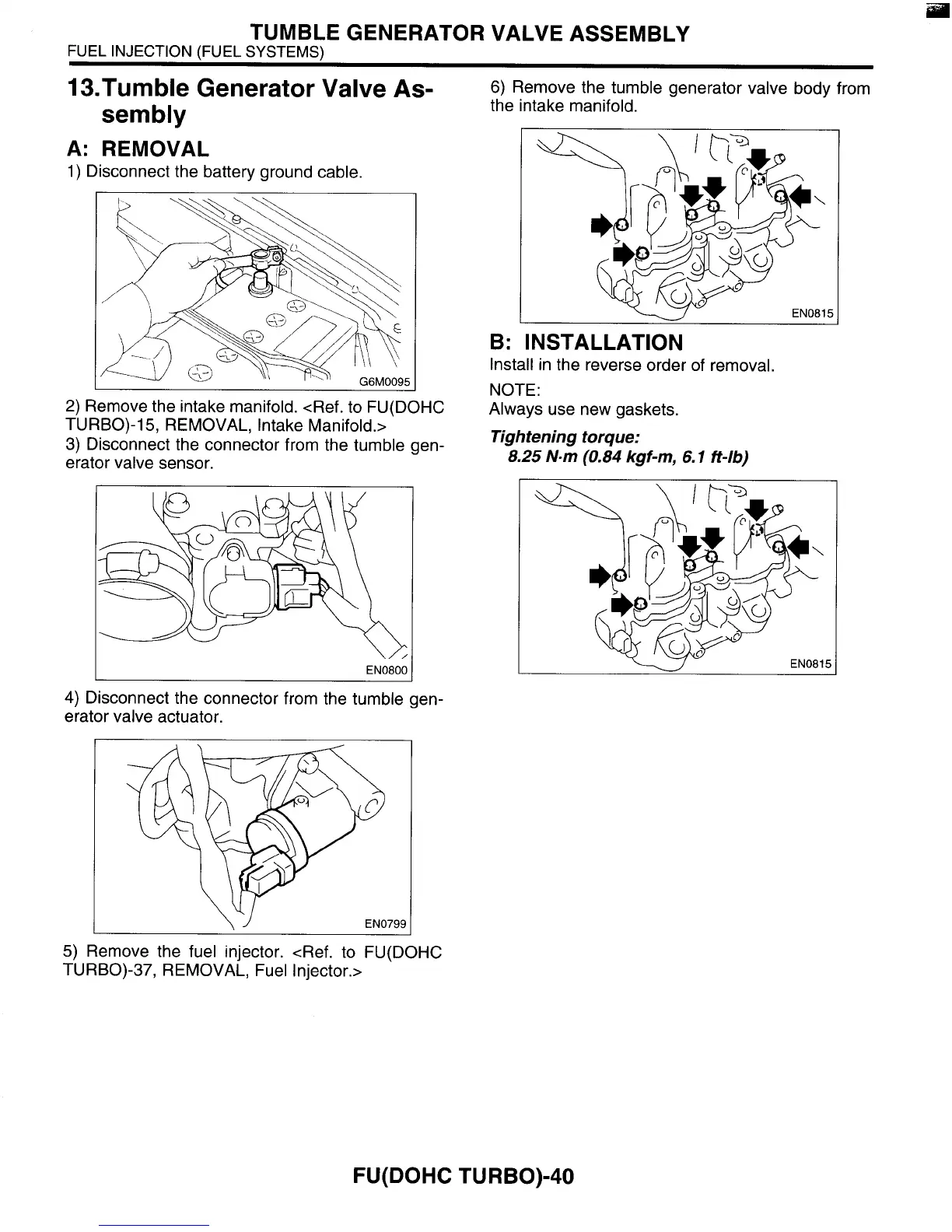

TUMBLE GENERATOR VALVE ASSEMBLY
FUEL INJECTION (FUEL SYSTEMS)
13.Tumble Generator Valve As-
sembly
A: REMOVAL
1) Disconnect the battery ground cable.
2) Remove the intake manifold. <Ref. to FU(D0HC
TURBO)-I
5, REMOVAL, Intake Manifold.>
3) Disconnect the connector from the tumble gen-
erator valve sensor.
EN0800
4) Disconnect the connector from the tumble gen-
erator valve actuator.
\J EN0799
5) Remove the fuel injector. <Ref. to FU(D0HC
TURBO)-37, REMOVAL, Fuel Injector.>
6) Remove the tumble generator valve body from
the intake manifold.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Always use new gaskets.
Tightening torque:
8.25 N.m (0.84 kgf-m, 6.1 ft-lb)
EN0815
FU(D0HC TURBO)-40
