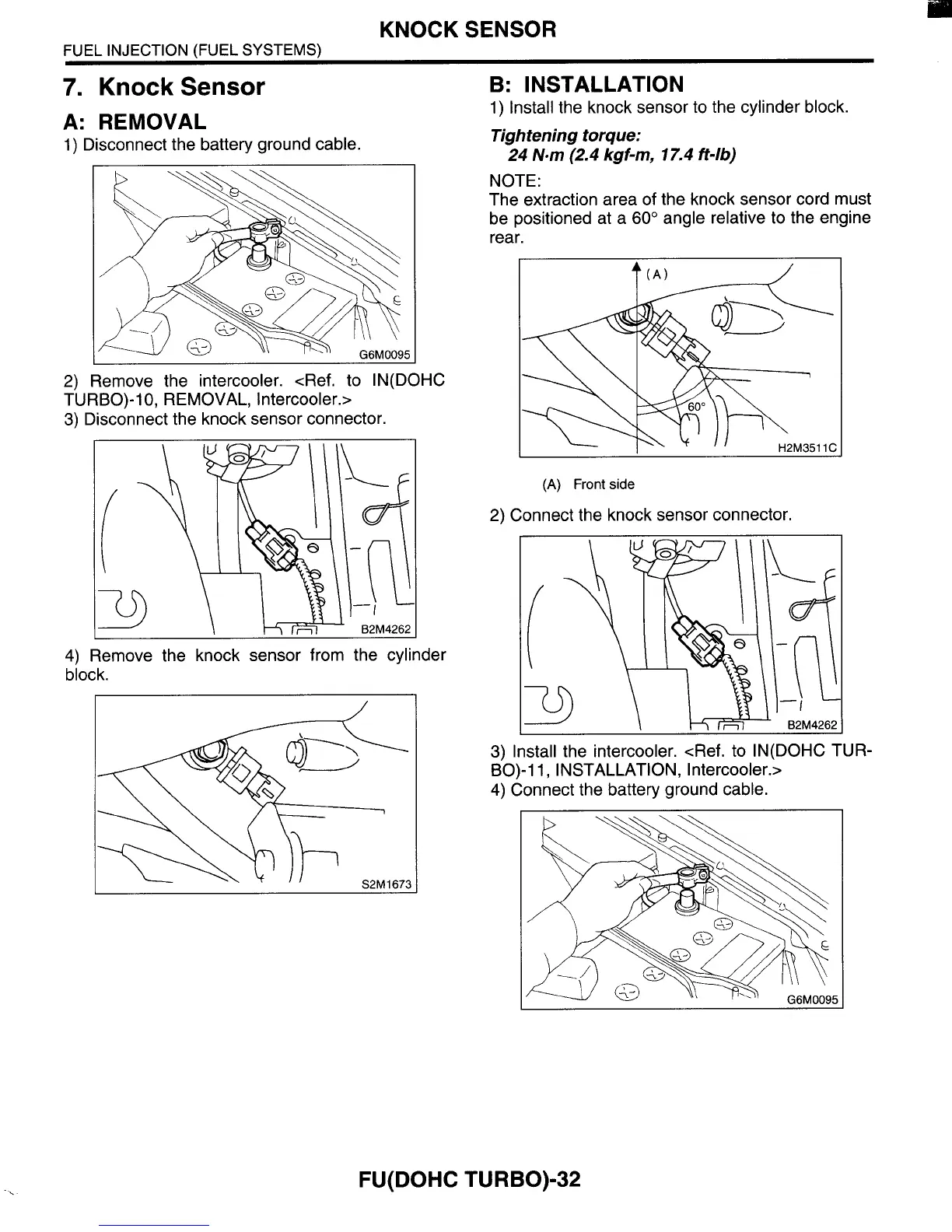

KNOCK SENSOR
FUEL INJECTION (FUEL SYSTEMS)
7.
Knock
Sensor
A:
REMOVAL
1)
Disconnect the battery ground cable.
2)
Remove the intercooler. <Ref.
to
IN(D0HC
TURBO)-1
0,
REMOVAL, Intercooler.>
3)
Disconnect the knock sensor connector.
4) Remove the knock sensor from the cylinder
block.
B:
INSTALLATION
1) Install the knock sensor to the cylinder block.
Tightening torque:
NOTE:
The extraction area of the knock sensor cord must
be positioned at a
60"
angle relative
to
the engine
rear.
24 N.m (2.4 kgf-m, 17.4
ft-lb)
~~
(A)
Front
side
2)
Connect the knock sensor connector
3)
Install the intercooler. <Ref. to IN(D0HC
TUR-
BO)-1
1,
INSTALLATION, Intercooler.>
4) Connect the battery ground cable.
