Subaru 2002 Impreza - Fuel Tank

FUEL TANK
FUEL INJECTION (FUEL SYSTEMS)

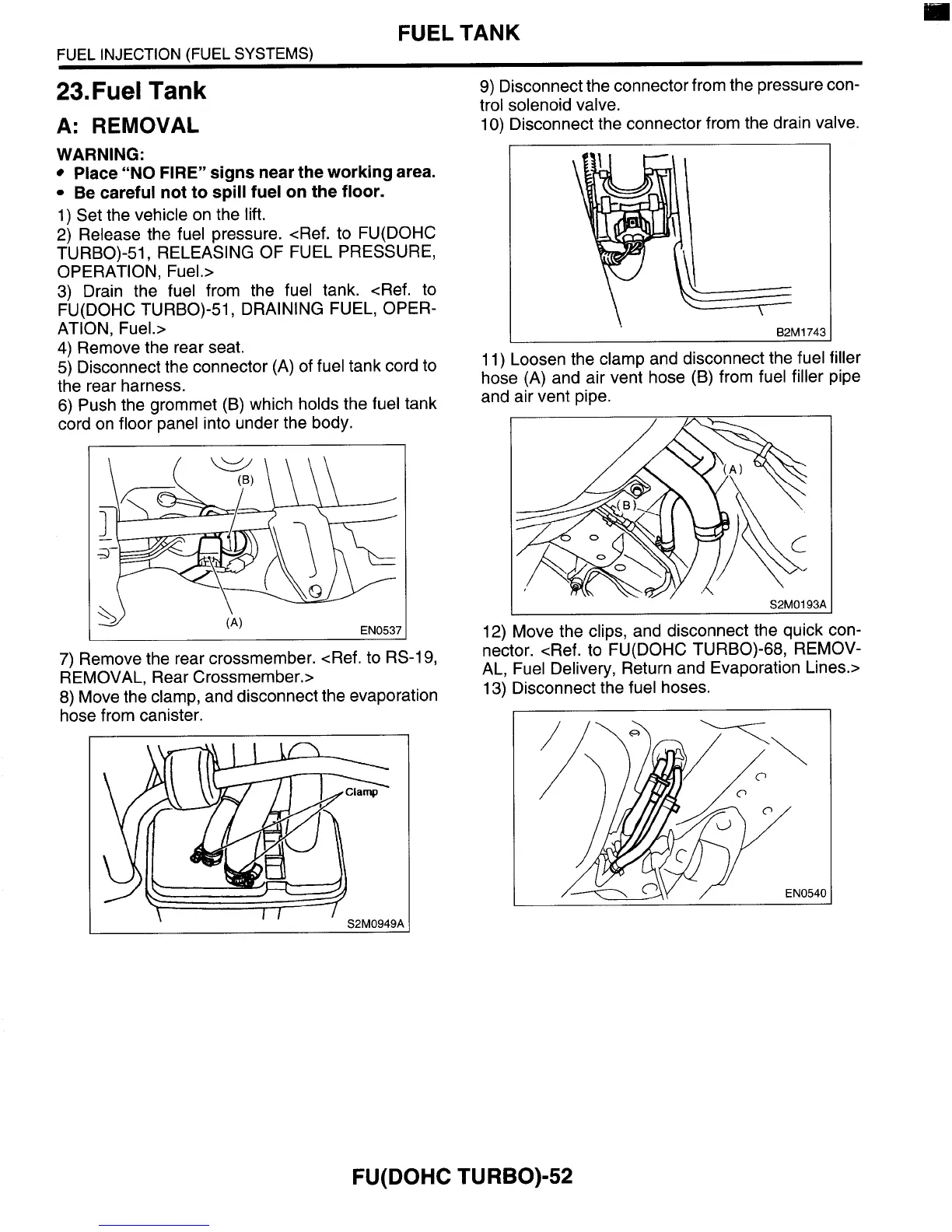

23.Fuel Tank
A: REMOVAL
WARNING:
Place “NO FIRE” signs near the working area.
Be careful not to spill fuel on the floor.
1) Set the vehicle on the lift.
2) Release the fuel pressure. <Ref. to FU(D0HC
OPERATION, Fuel.>
3) Drain the fuel from the fuel tank. <Ref. to
ATION, Fuel.>
4) Remove the rear seat.
5) Disconnect the connector (A) of fuel tank cord to
the rear harness.
6) Push the grommet (B) which holds the fuel tank
cord on floor panel into under the body.
TURBO)-51, RELEASING OF FUEL PRESSURE,
FU(D0HC TURBO)-51, DRAINING FUEL, OPER-
7) Remove the rear crossmember. <Ref. to RS-19,
REMOVAL, Rear Crossmember.>
8) Move the clamp, and disconnect the evaporation
hose from canister.
I
S2M0949j
\ II
9) Disconnect the connector from the pressure con-
trol solenoid valve.
10) Disconnect the connector from the drain valve.
B2M174:
11) Loosen the clamp and disconnect the fuel filler
hose (A) and air vent hose (B) from fuel filler pipe
and air vent pipe.
S2M0193A
12) Move the clips, and disconnect the quick con-
nector. <Ref. to FU(D0HC TURBO)-68, REMOV-
AL, Fuel Delivery, Return and Evaporation Lines.>
13) Disconnect the fuel hoses.
FU(D0HC TURBO)-52
