Subaru 2002 Impreza User Manual

FUEL INJECTOR
FUEL INJECTION (FUEL SYSTEMS)

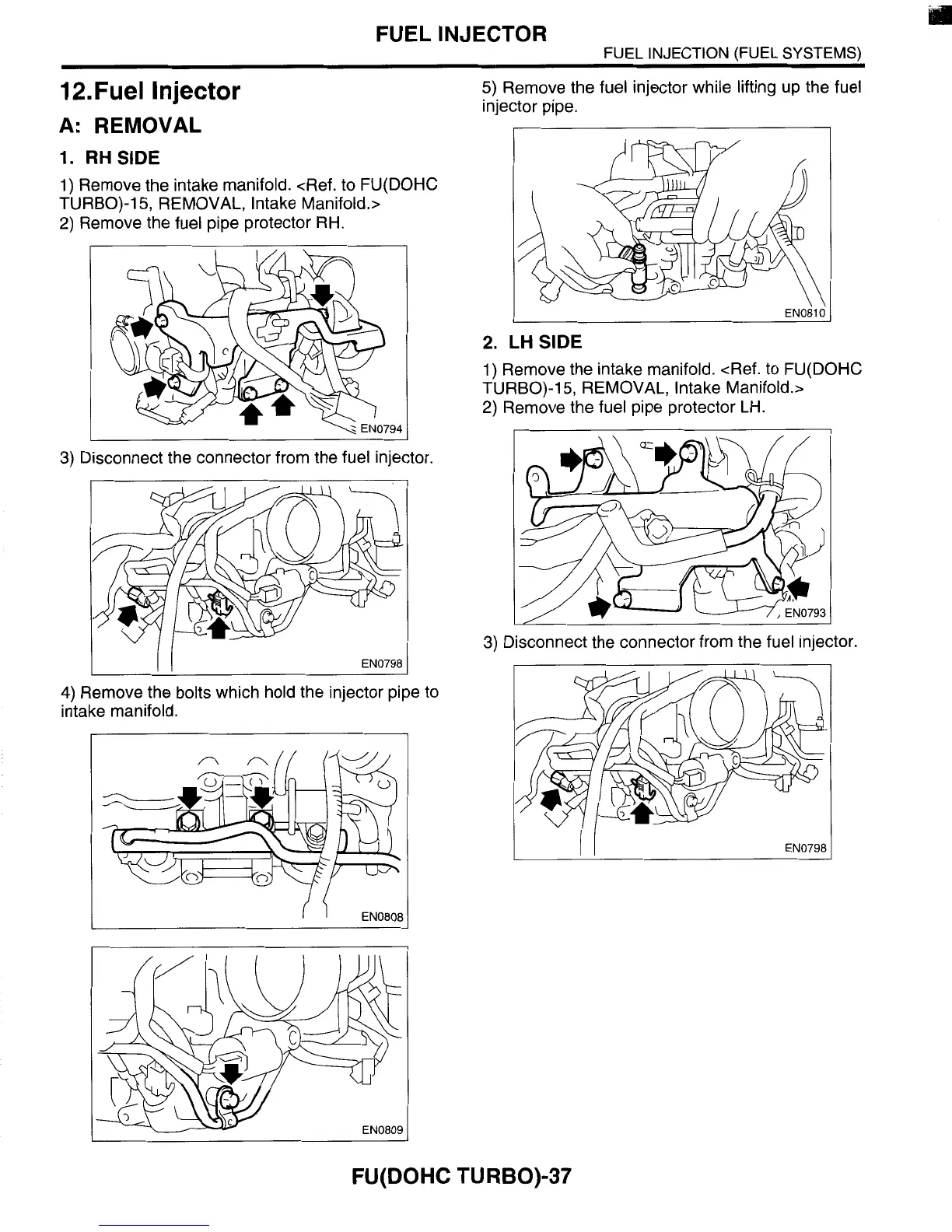

12.Fuel Injector
A: REMOVAL
1. RH SIDE
1) Remove the intake manifold. <Ref. to FU(D0HC
TURBO)-1
5, REMOVAL, Intake Manifold.>
2) Remove the fuel pipe protector RH.
5) Remove the fuel injector while lifting up the fuel
injector pipe.
2. LH SIDE
1) Remove the intake manifold. <Ref. to FU(D0HC
TURBO)-1
5, REMOVAL, Intake Manifold.>
2) Remove the fuel pipe protector LH.
I I
3) Disconnect the connector from the fuel injector.
3) Disconnect the connector from the fuel injector.
I II EN0798 1
4) Remove the bolts which hold the injector pipe to
intake manifold.
nn
EN0808
II EN0798
FU(D0HC TURBO)-37
