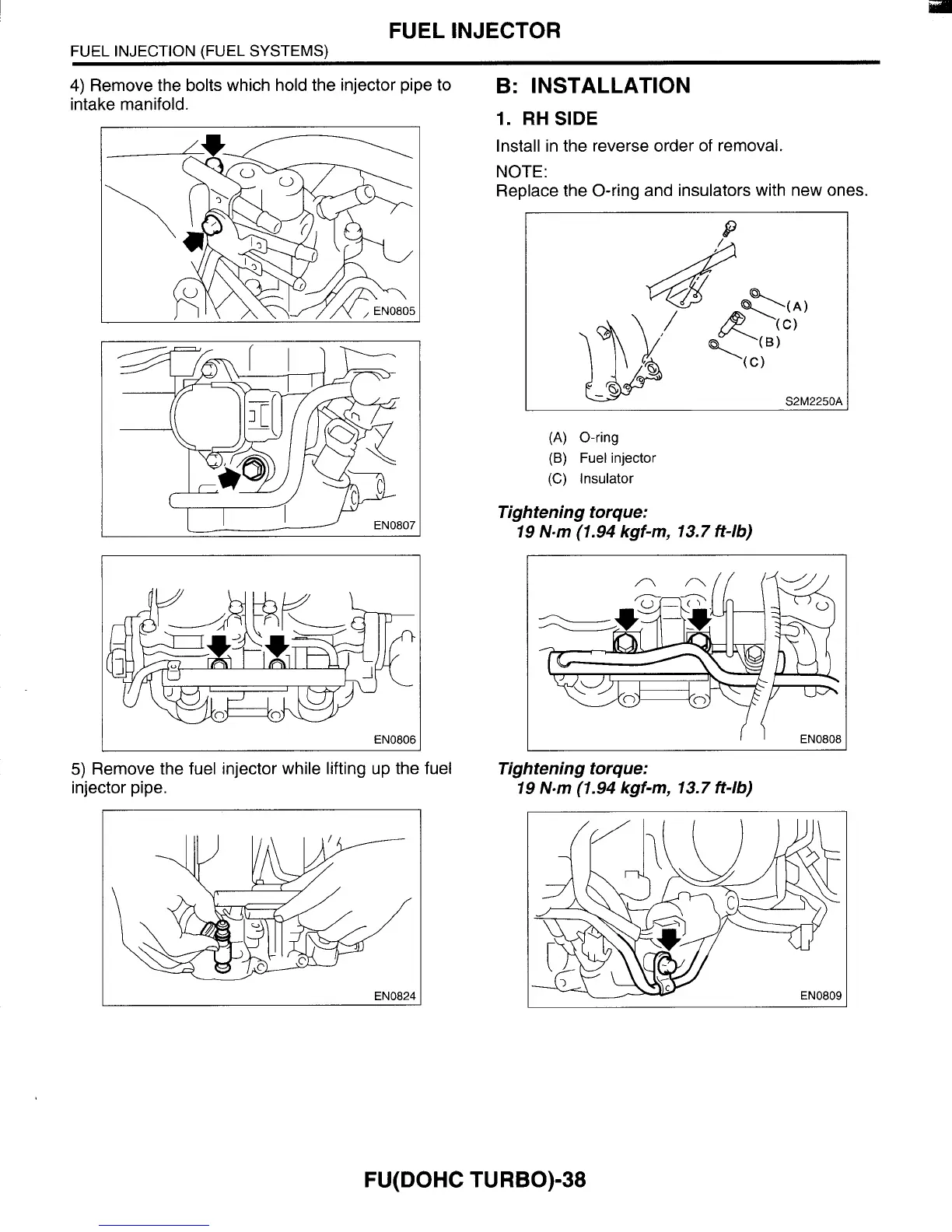

FUEL INJECTOR
FUEL INJECTION (FUEL SYSTEMS)
4) Remove the bolts which hold the injector pipe to
intake manifold.
B: INSTALLATION
I /J
EN0807
I EN0806 I
1. RH SIDE
Install in the reverse order of removal.
NOTE:
Replace the O-ring and insulators with new ones.
(A) O-ring
(B) Fuel injector
(C) insulator
Tightening torque:
19 N-m (1.94 kgf-m, 13.7
ff-lb)
EN0808
5) Remove the fuel injector while lifting up the fuel
injector pipe.
Tightening torque:
19 N.m (1.94 kgf-m, 13.7
ff-lb)
EN0824 EN0809
FU(D0HC TURBO)-38
