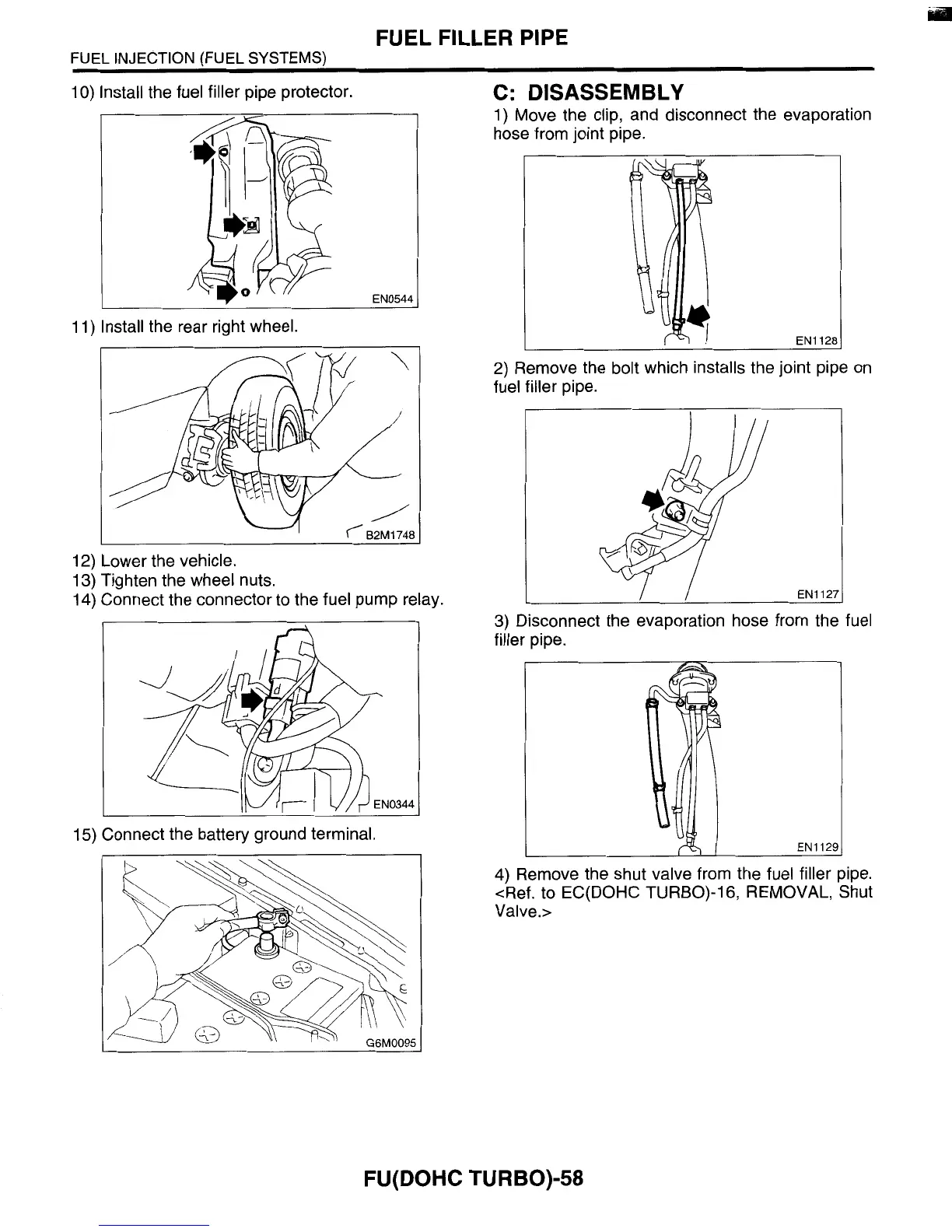

FUEL FILLER
PIPE
FUEL INJECTION (FUEL SYSTEMS)
10) Install the fuel filler pipe protector.
EN0544
I
11) Install the rear right wheel.
12) Lower the vehicle.
13) Tighten the wheel nuts.
14) Connect the connector to the fuel pump relay.
15) Connect the battery ground terminal.
C: DISASSEMBLY
1) Move the clip, and disconnect the evaporation
hose from joint pipe.
EN112E
2) Remove the bolt which installs the joint pipe on
fuel filler pipe.
3) Disconnect the evaporation hose from the fuel
filler pipe.
4) Remove the shut valve from the fuel filler pipe.
<Ref. to EC(D0HC TURBO)-1
6,
REMOVAL, Shut
Valve.>
FU(D0HC TURBO)-58
