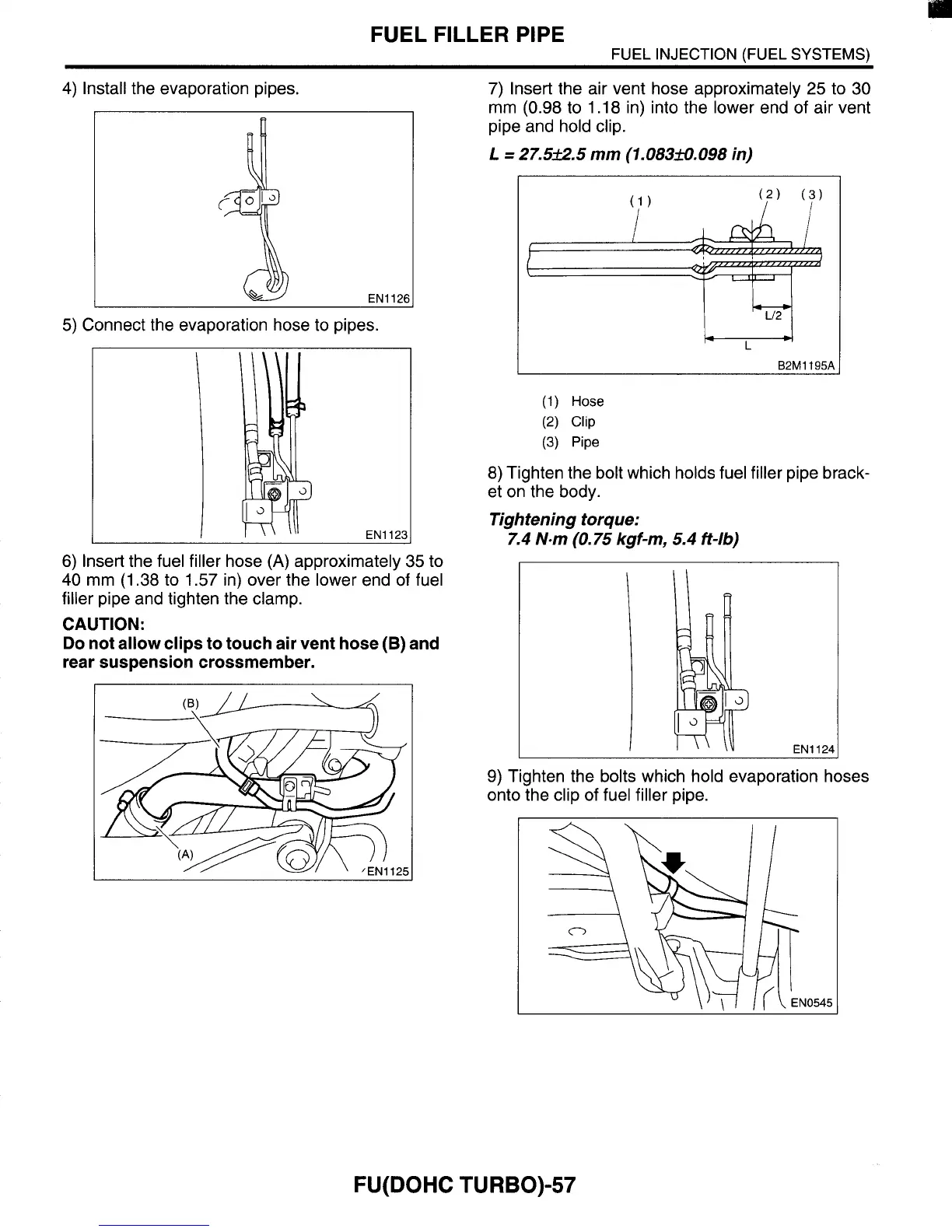

FUEL FILLER PIPE
FUEL INJECTION (FUEL SYSTEMS)
4) Install the evaporation pipes.
5) Connect the evaporation hose to pipes.
Ill
EN1123
6)
Insert the fuel filler hose
(A)
approximately 35 to
40
mm (1.38 to 1.57 in) over the lower end of fuel
filler pipe and tighten the clamp.
CAUTION:
Do not allow clips to touch air vent hose
(B)
and
rear suspension crossmember.
7) Insert the air vent hose approximately 25 to
30
mm (0.98 to 1.18 in) into the lower end of air vent
pipe and hold clip.
L
=
27.5e.5
mm
(1.083fo.098 in)
L
B2M1195A
(1)
Hose
(2)
Clip
(3)
Pipe
8) Tighten the bolt which holds fuel filler pipe brack-
et on the body.
Tightening torque:
7.4
N.m
(0.75 kgf-m, 5.4
ft-lb)
EN1124
9) Tighten the bolts which hold evaporation hoses
onto the clip of fuel filler pipe.
FU(
DOHC
TU RBO)-57
