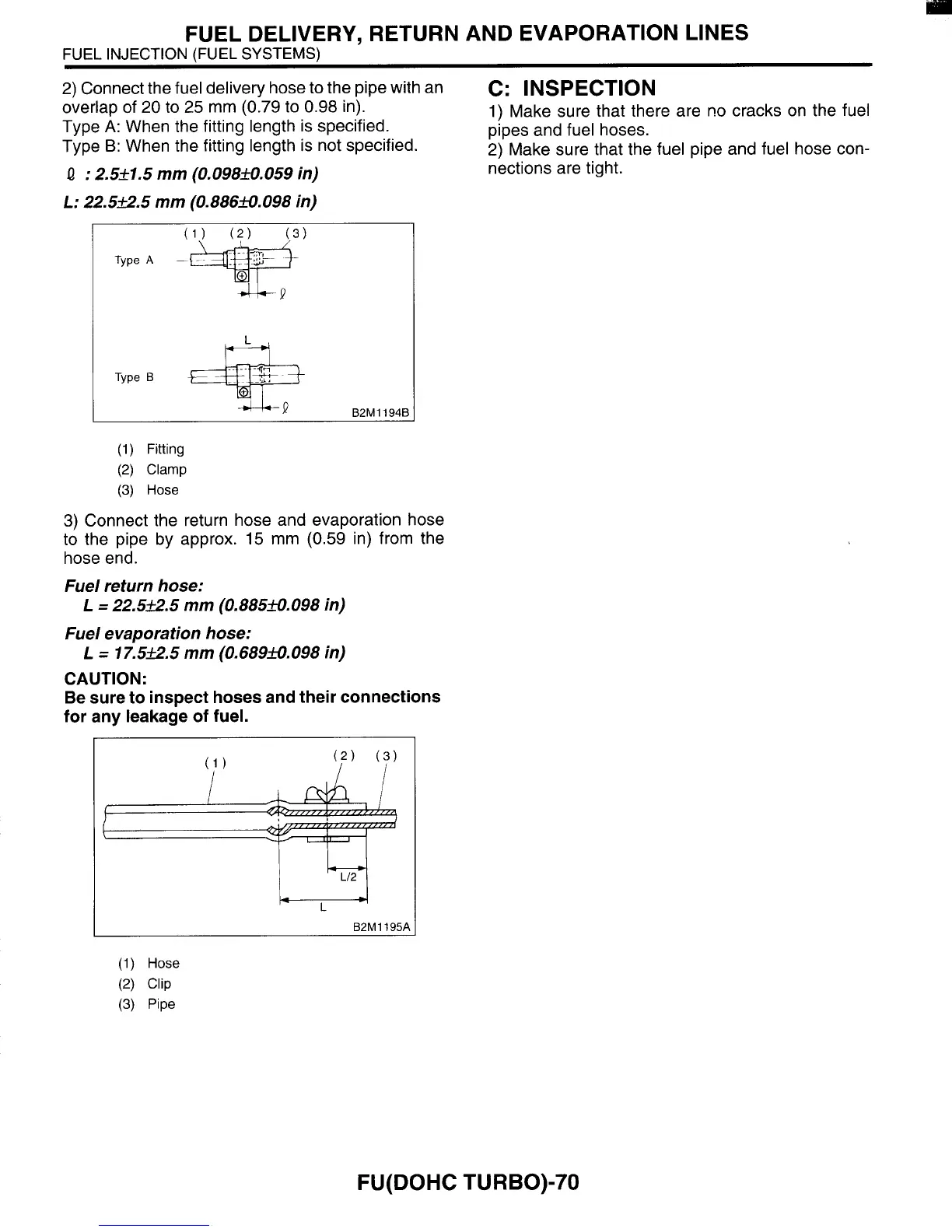

FUEL DELIVERY, RETURN AND EVAPORATION LINES
FUEL INJECTION (FUEL
SYSTEMS)
2)
Connect the fuel delivery hose to the pipe with an
overlap of
20 to
25
mm
(0.79
to
0.98
in).
Type
A:
When the fitting length is specified.
Type
B:
When the fitting length is not specified.
C: INSPECTION
1)
Make sure that there are no cracks on the fuel
pipes and fuel hoses.
2)
Make sure that the fuel pipe and fuel hose con-
Q
:
2.5H.5
mm
(0.098-M.059
in)
L:
22.5f2.5
mm
(0.886M.098
in)
*Y
B2M1194B
(1)
Fitting
(2)
Clamp
(3)
Hose
3)
Connect the return hose and evaporation hose
to the pipe by approx.
15
mm
(0.59
in) from the
hose end.
Fuel return hose:
Fuel evaporation hose:
CAUTION:
Be sure to inspect hoses and their connections
for
any leakage of fuel.
L
=
22.532.5
mm
(0.885-M.098
in)
L
=
17.5f2.5
mm
(0.689M.098
in)
I
B2M 1 195A
nections are tight.
(1)
Hose
(2)
Clip
(3)
Pipe
FU(D0HC TURBO)-7O
