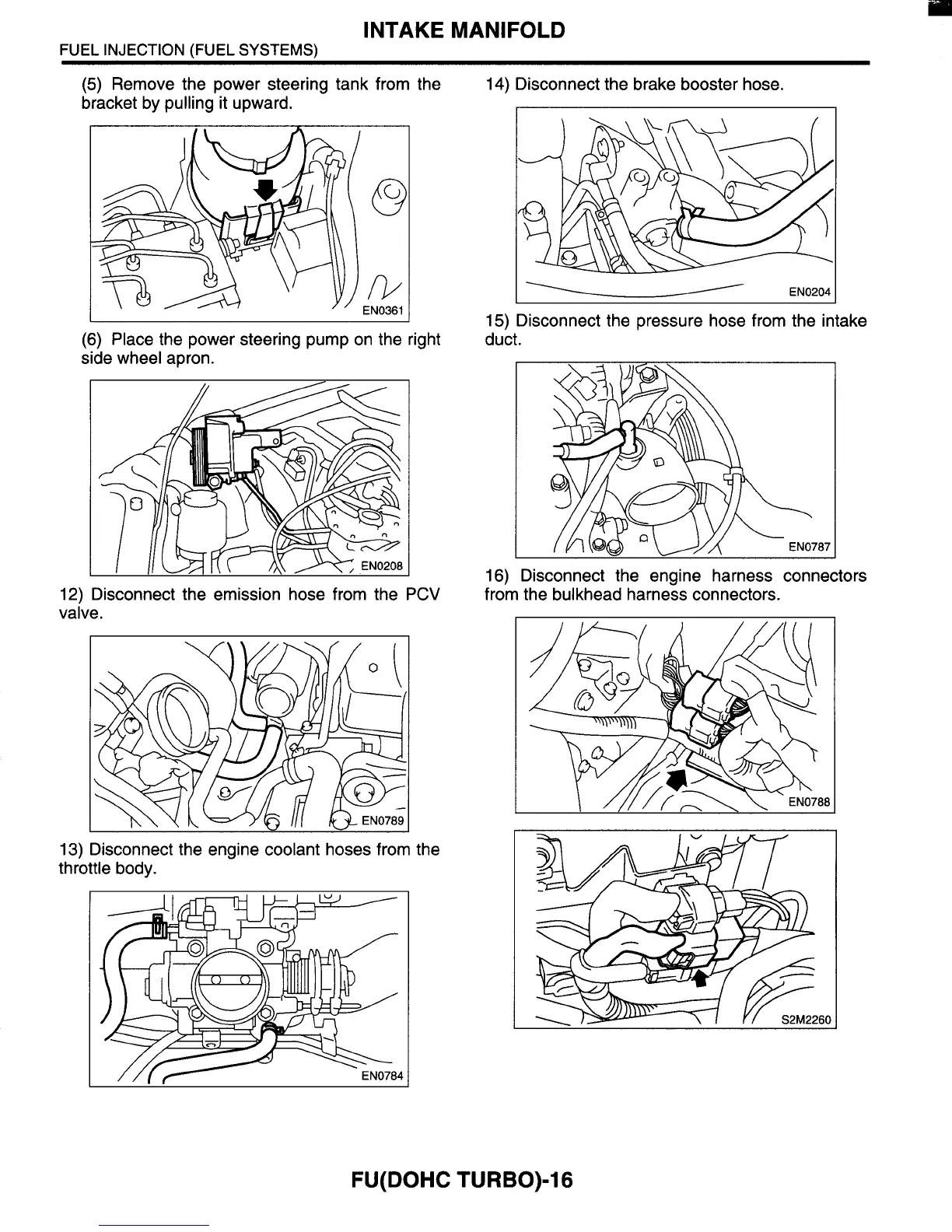

INTAKE MANIFOLD
FUEL INJECTION (FUEL SYSTEMS)
(5) Remove the power steering tank from the
bracket by pulling it upward.
(6) Place the power steering pump on the right
side wheel apron.
12) Disconnect the emission hose from the PCV
valve.
13) Disconnect the engine coolant hoses from the
throttle body.
14) Disconnect the brake booster hose.
-
EN0204
15) Disconnect the pressure hose from the intake
duct.
16) Disconnect the engine harness connectors
from the bulkhead harness connectors.
FU(D0HC TURBO)-16
