FUEL INJECTION (FUEL SYSTEMS)

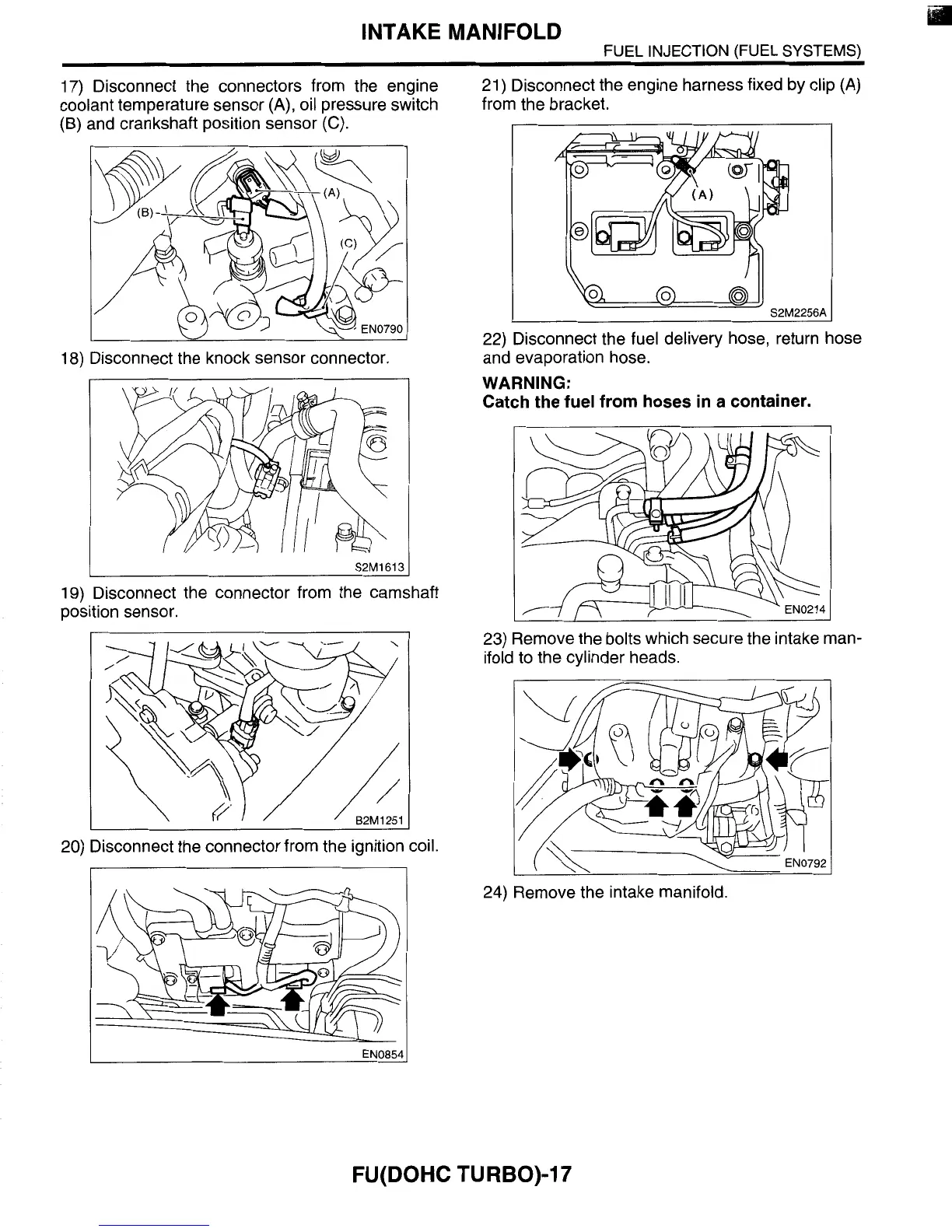

INTAKE MANIFOLD
17) Disconnect the connectors from the engine
coolant temperature sensor
(A), oil pressure switch
(B) and crankshaft position sensor (C).
v .
18) Disconnect the knock sensor connector.
S2M1613
19) Disconnect the connector from the camshaft
position sensor.
21) Disconnect the engine harness fixed by clip
(A)
from the bracket.
\\ I II
(6)
S2M2256A
22) Disconnect the fuel delivery hose, return hose
and evaporation hose.
WARNING:
Catch the fuel from hoses in a container.
23) Remove the bolts which secure the intake man-
ifold to the cylinder heads.
20) Disconnect the connector from the ignition coil.
24) Remove the intake manifold.
EN0854
FU(D0HC TURBO)-17
