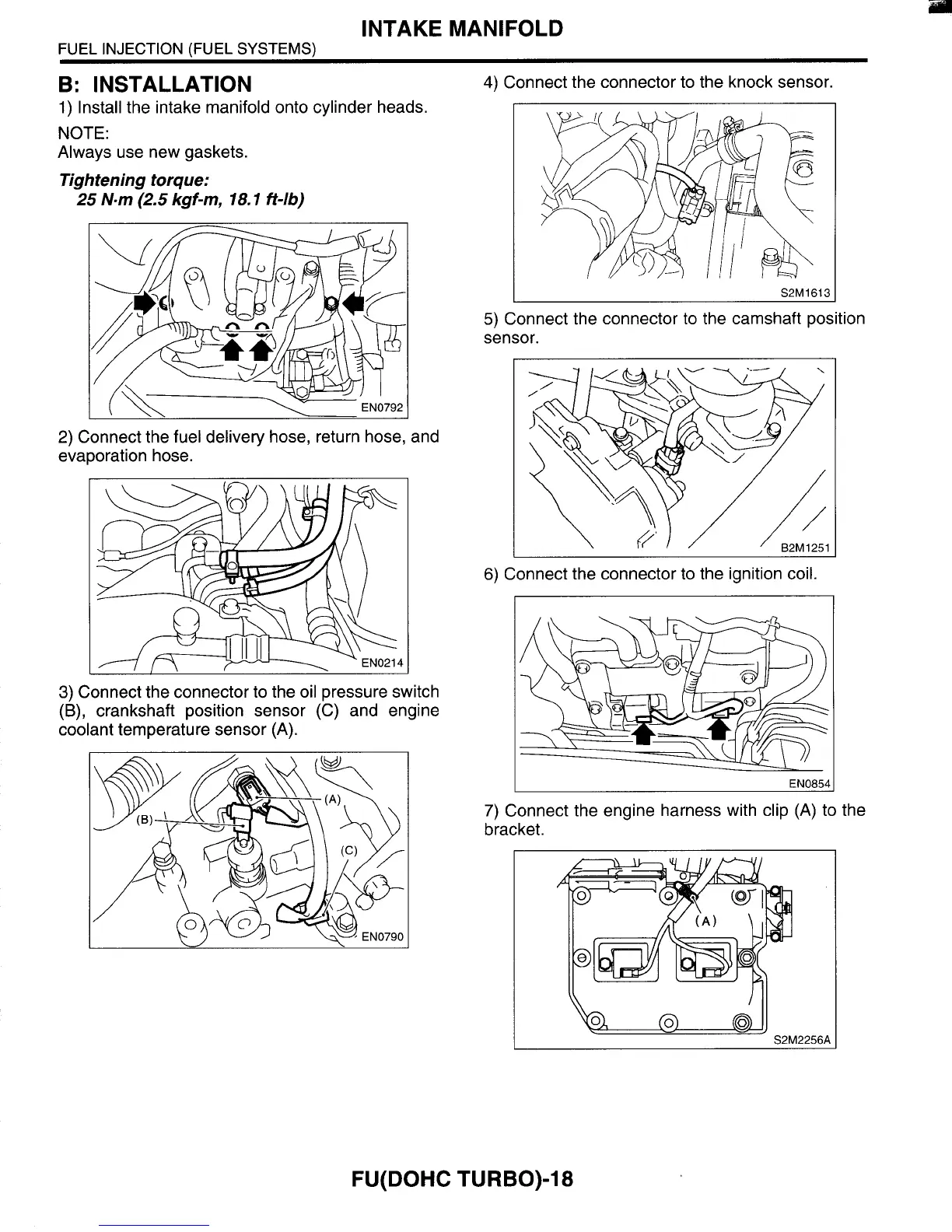

INTAKE MANIFOLD
FUEL INJECTION (FUEL SYSTEMS)
B: INSTALLATION
1)
Install the intake manifold onto cylinder heads.
NOTE:
Always use new gaskets.
Tightening torque:
25 N-m (2.5 kgf-m,
18.1
ft-16)
2)
Connect the fuel delivery hose, return hose, and
evaporation hose.
3)
Connect the connector to the oil pressure switch
(B),
crankshaft position sensor (C) and engine
coolant temperature sensor (A).
4) Connect the connector
to
the knock sensor.
S2M1613
5)
Connect the connector to the camshaft position
sensor.
6)
Connect the connector to the ignition coil.
EN0854
I
7)
Connect the engine harness with clip (A) to the
bracket.
FU(D0HC TURBO)-I8
To Next Page
