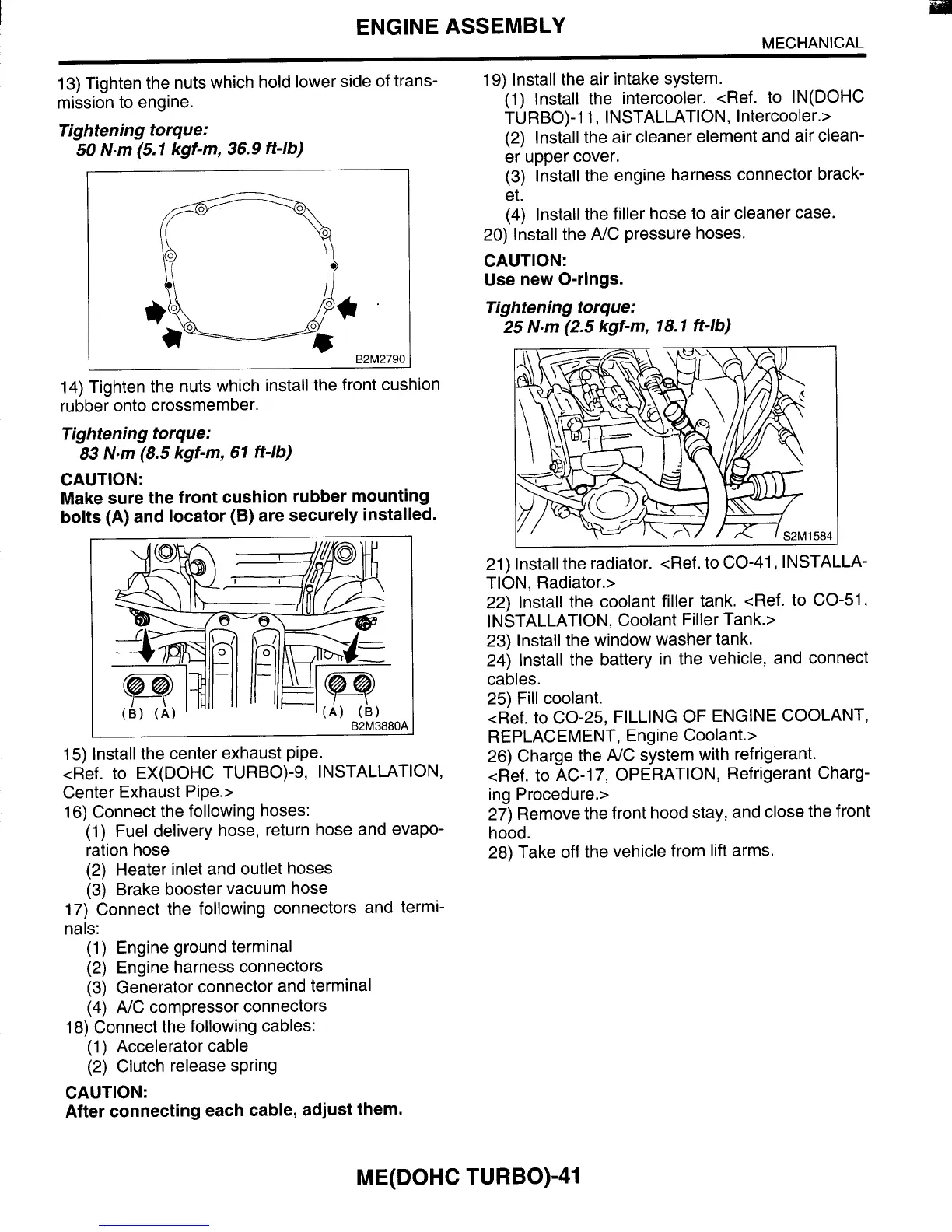

ENGINE ASSEMBLY
m
MECHANICAL
13) Tighten the nuts which hold lower side of trans-
mission to engine.
Tightening torque:
50
N.m (5.1 kgf-m, 36.9 ft-lb)
14) Tighten the nuts which install the front cushion
rubber onto crossmember.
Tightening torque:
CAUTION:
Make sure the front cushion rubber mounting
bolts (A) and locator
(B)
are securely installed.
83 N.m (8.5 kgf-m, 61 ft-lb)
15) Install the center exhaust pipe.
<Ref. to EX(D0HC TURBO)-9, INSTALLATION,
Center Exhaust Pipe.>
16) Connect the following hoses:
(1) Fuel delivery hose, return hose and evapo-
ration hose
(2) Heater inlet and outlet hoses
(3)
Brake booster vacuum hose
(1) Engine ground terminal
(2)
Engine harness connectors
(3) Generator connector and terminal
(4) A/C compressor connectors
(1) Accelerator cable
(2) Clutch release spring
17) Connect the following connectors and termi-
nals:
18) Connect the following cables:
CAUTION:
After connecting each cable, adjust them.
19)
Install the air intake system.
(1) Install the intercooler. <Ref. to IN(D0HC
TURBO)-1 1, INSTALLATION, Intercooler.>
(2) Install the air cleaner element and air clean-
er upper cover.
(3) Install the engine harness connector brack-
et.
(4) Install the filler hose to air cleaner case.
20) Install the A/C pressure hoses.
CAUTION:
Use new O-rings.
Tightening torque:
25 N-m
(2.5
kgf-m, 18.1 ft-lb)
21) Install the radiator. <Ref. to CO-41, INSTALLA-
TION, Radiator.>
22) Install the coolant filler tank. <Ref. to CO-51,
INSTALLATION, Coolant Filler Tank.>
23) Install the window washer tank.
24) Install the battery in the vehicle, and connect
cables.
25) Fill coolant.
<Ref. to CO-25, FILLING OF ENGINE COOLANT,
REPLACEMENT, Engine Coolant.>
26) Charge the A/C system with refrigerant.
<Ref. to AC-17, OPERATION, Refrigerant Charg-
ing Procedure.>
27) Remove the front hood stay, and close the front
hood.
28) Take off the vehicle from lift arms.
ME(D0HC TURBO)-41
