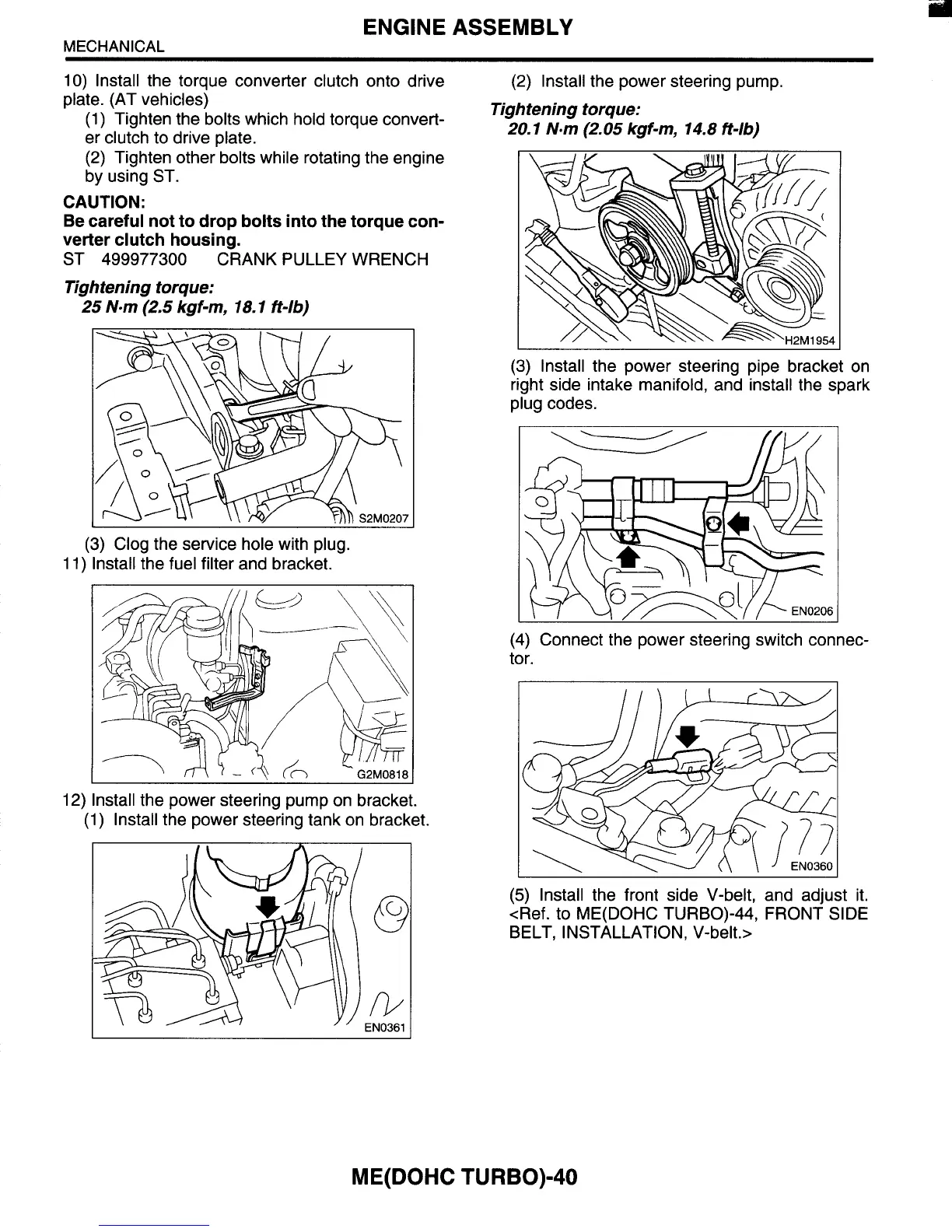

ENGINE ASSEMBLY
MECHANICAL
IO)
Install the torque converter clutch onto drive
plate. (AT vehicles)
(1)
Tighten the bolts which hold torque convert-
er clutch to drive plate.
(2)
Tighten other bolts while rotating the engine
by using ST.
CAUTION:
Be careful not to drop bolts into the torque con-
verter clutch housing.
ST 499977300 CRANK PULLEY WRENCH
Tightening torque:
25 N-m (2.5 kgf-m, 18.1 ft-lb)
(3)
Clog the service hole with plug.
11)
Install the fuel filter and bracket.
12)
Install the power steering pump on bracket.
(1)
Install the power steering tank on bracket.
n/
EN0361
(2)
Install the power steering pump.
20.1 N.m (2.05 kgf-m, 14.8 ft-lb)
Tightening torque:
(3) Install the power steering pipe bracket on
right side intake manifold, and install the spark
plug codes.
(4) Connect the power steering switch connec-
tor.
(5)
Install the front side V-belt, and adjust it.
<Ref. to ME(D0HC TURBO)-44, FRONT SIDE
BELT, INSTALLATION, V-belt.>
ME(D0HC TURBO)-40
