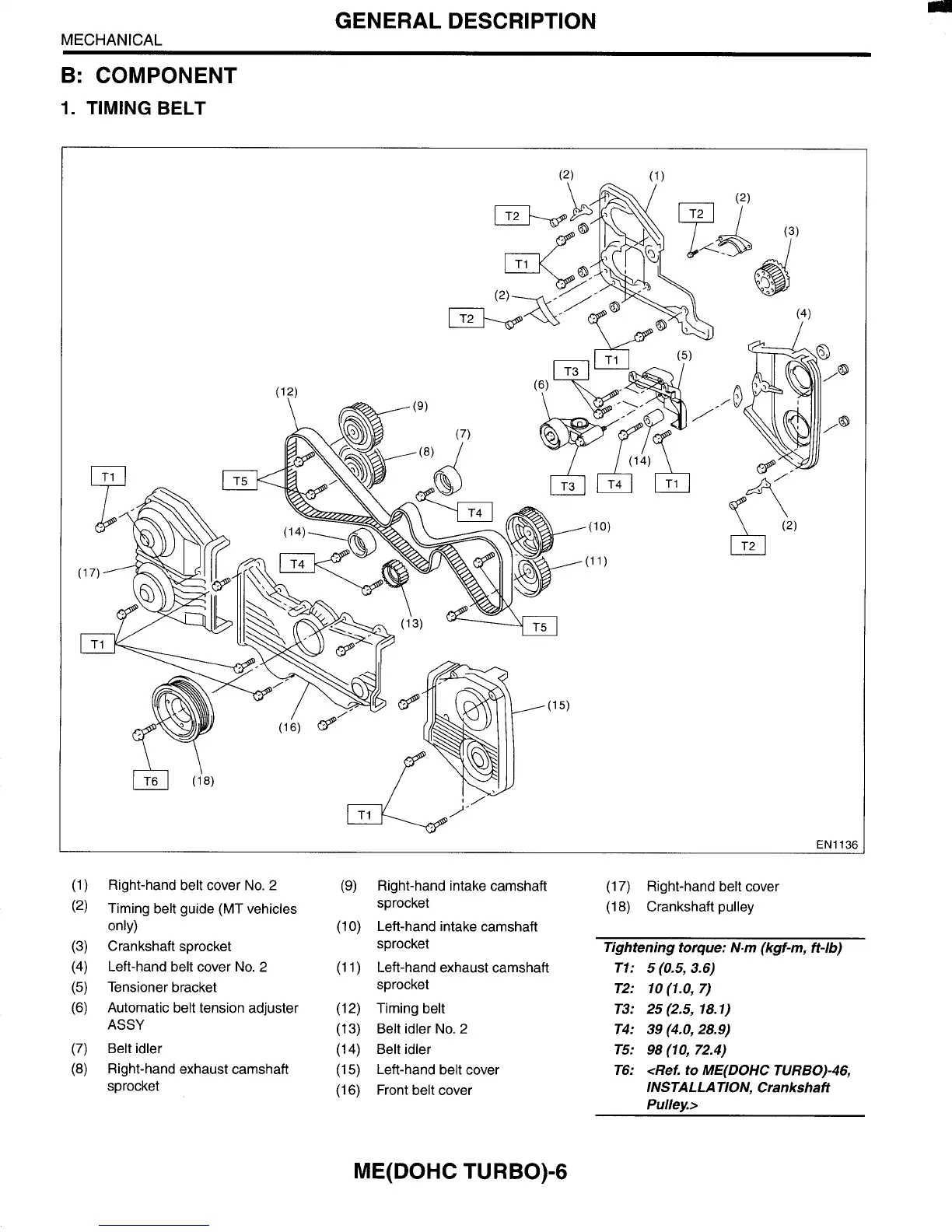

GENERAL DESCRIPTION
MECHANICAL
B:
COMPONENT
1.
TIMING
BELT
EN1136
(1)
Right-hand belt cover
No.
2
(9)
Right-hand intake camshaft (17) Right-hand belt cover
(2)
Timing belt guide (MT vehicles sprocket
(18) Crankshaft pulley
only)
(IO)
Left-hand intake camshaft
..
(3)
Crankshaft sprocket
(4)
Left-hand belt cover
No.
2
(5)
Tensioner bracket
(6) Automatic belt tension adjuster
(7) Belt idler
(8) Right-hand exhaust camshaft
sprocket
ASSY
sprocket
(1 1) Left-hand exhaust camshaft
sprocket
(12) Timing belt
(13)
Belt idler No.
2
(14) Belt idler
(1
5)
Left-hand belt cover
(16) Front belt cover
Tightening torque: N.m (kgf-m,
ff-lb)
Tl: 5 (0.5, 3.6)
T2:
lO(1.0,
7)
T3: 25 (2.5, 18.1)
T4: 39 (4.0, 28.9)
T5: 98
(10,
72.4)
T6: <Ref.
to
ME(D0HC
TURBO)-46,
INSTAL LA TION, Crankshaft
Pullev.>
ME(D0HC TURBO)-6
