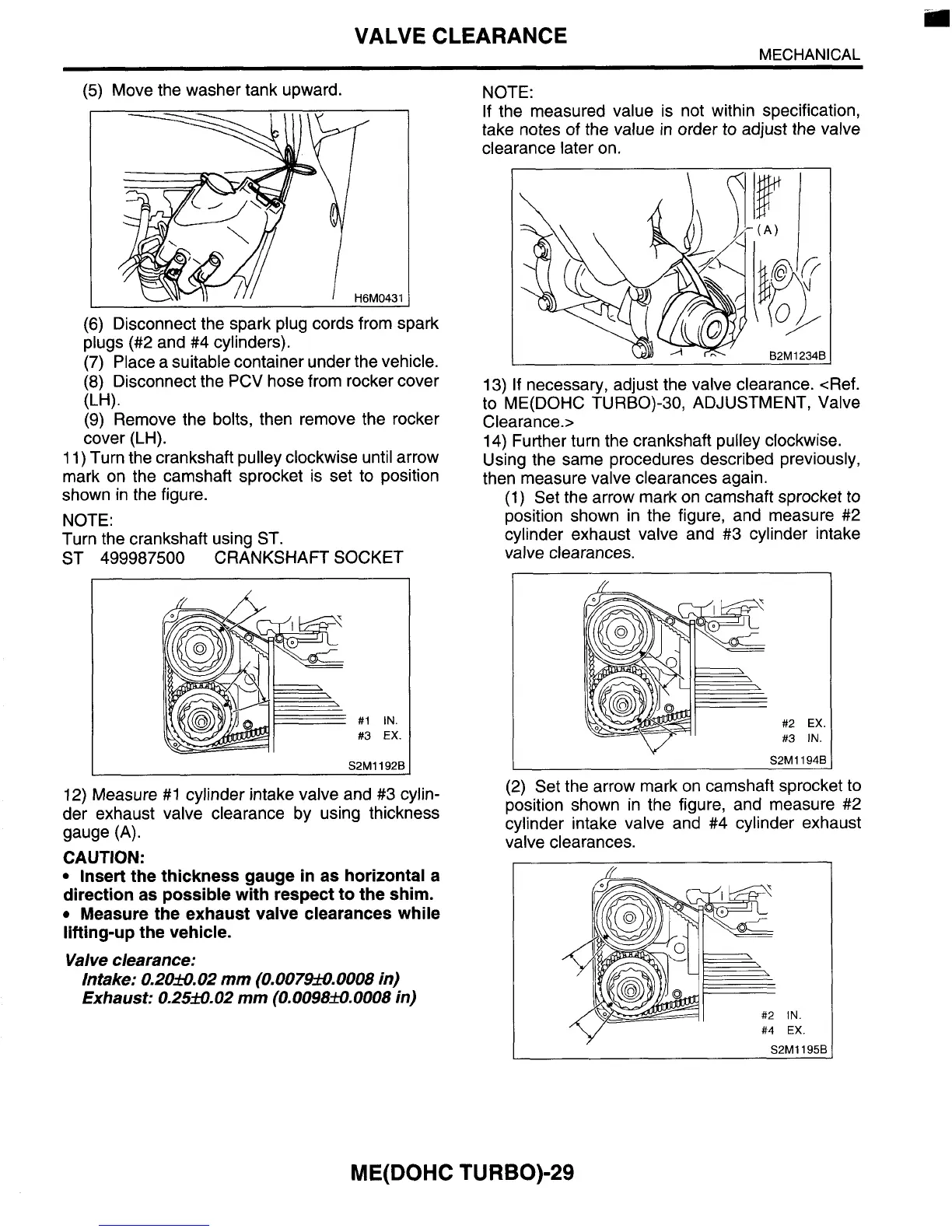

VALVE CLEARANCE
m
MECHANICAL
(5)
Move the washer tank upward.
(6)
Disconnect the spark plug cords from spark
plugs
(#2
and #4 cylinders).
(7)
Place a suitable container under the vehicle.
(8) Disconnect the PCV hose from rocker cover
(9) Remove the bolts, then remove the rocker
cover (LH).
11)
Turn the crankshaft pulley clockwise until arrow
mark on the camshaft sprocket is set to position
shown in the figure.
NOTE:
Turn the crankshaft using ST.
ST 499987500 CRANKSHAFT SOCKET
w-0.
#I
#3
IN.
EX.
S2M1192B
I
12)
Measure
#1
cylinder intake valve and
#3
cylin-
der exhaust valve clearance by using thickness
CAUTION:
Insert the thickness gauge in as horizontal a
direction as possible with respect to the shim.
Measure the exhaust valve clearances while
lifting-up the vehicle.
Valve clearance:
gauge (A).
Intake:
0.20fo.02
mm
(0.0079H0008
in)
Exhaust:
0.25fo.02
mm
(0.0098M.0008
in)
NOTE:
If
the measured value is not within specification,
take notes of the value in order to adjust the valve
clearance later on.
13)
If
necessary, adjust the valve clearance. <Ref.
to
ME(D0HC TURBO)-30, ADJUSTMENT, Valve
Clearance.>
14) Further turn the crankshaft pulley clockwise.
Using the same procedures described previously,
then measure valve clearances again.
(1)
Set the arrow mark on camshaft sprocket to
position shown in the figure, and measure
#2
cylinder exhaust valve and
#3
cylinder intake
valve clearances.
\J
#2
EX.
#3
IN.
r
S2M1194B
I
(2)
Set the arrow mark on camshaft sprocket to
position shown in the figure, and measure
#2
cylinder intake valve and #4 cylinder exhaust
valve clearances.
#2
IN
#4
EX.
II
S2M1195B
ME(D0HC
TURBO)-29
