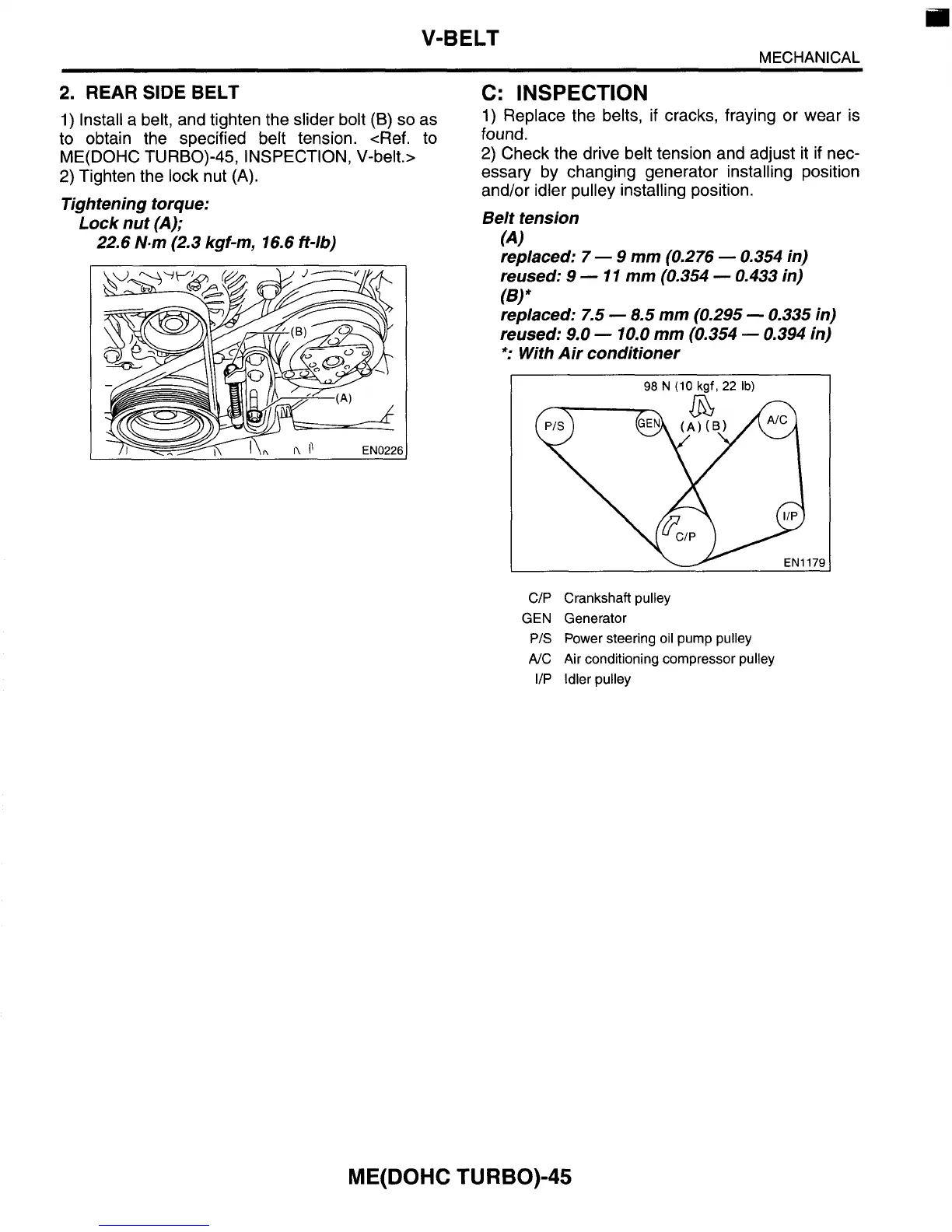

V-BELT
MECHANICAL
2.
REAR
SIDE
BELT C: INSPECTION
1)
Install a belt, and tighten the slider bolt (B)
so
as
to obtain the specified belt tension. <Ref.
to
ME(D0HC TURBO)-45, INSPECTION, V-belt.>
1)
Replace the belts, if cracks, fraying Or Wear is
found.
2)
Check the drive belt tension and adjust it if nec-
2)
Tighten the lock nut
(A).
Tightening torque:
Lock nut
(A);
22.6 Nom (2.3 kgf-m,
16.6
ff-lb)
6
essary by changing generator installing position
and/or idler pulley installing position.
Belt tension
(A)
(B)
*
replaced: 7
-
9
mm (0.276
-
0.354 in)
reused:
9
-
11
mm (0.354
-
0.433 in)
replaced: 7.5
-
8.5
mm (0.295
-
0.335 in)
reused: 9.0
-
10.0
mm (0.354
-
0.394 in)
*:
With Air conditioner
I
98
N
(10
kgf,
22
Ib)
C/P
Crankshaft pulley
P/S
Power steering oil pump pulley
NC
Air conditioning compressor pulley
I/P
Idler pulley
GEN Generator
ME(D0HC TURBO)-&
