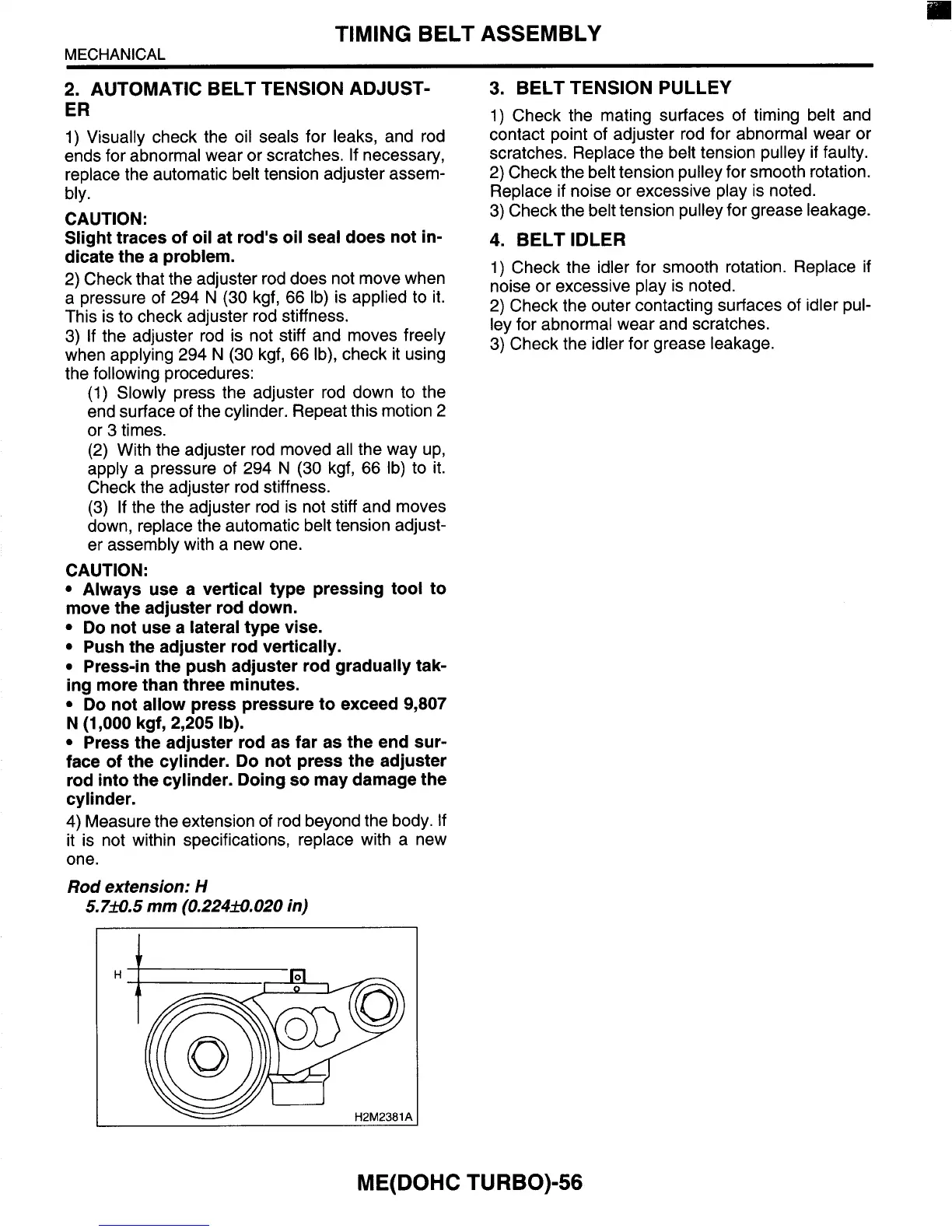

TIMING BELT ASSEMBLY
MECHANICAL
2. AUTOMATIC BELT TENSION ADJUST-
ER
1) Visually check the oil seals for leaks, and rod
ends for abnormal wear or scratches.
If necessary,
replace the automatic belt tension adjuster assem-
bly.
CAUTION:
Slight traces of oil at rod's
oil seal does not in-
dicate the a problem.
2) Check that the adjuster rod does not move when
a pressure of 294
N (30 kgf, 66 Ib) is applied to it.
This is to check adjuster rod stiffness.
3) If the adjuster rod is not stiff and moves freely
when applying 294
N (30 kgf, 66 Ib), check it using
the following procedures:
(1) Slowly press the adjuster rod down to the
end surface of the cylinder. Repeat this motion 2
or
3 times.
(2) With the adjuster rod moved all the way up,
apply a pressure of 294
N (30 kgf, 66 Ib) to it.
Check the adjuster rod stiffness.
(3) If the the adjuster rod is not stiff and moves
down, replace the automatic belt tension adjust-
er assembly with a new one.
CAUTION:
Always use a vertical type pressing tool to
move the adjuster
rod down.
Do not use a lateral type vise.
Push the adjuster rod vertically.
Press-in the push adjuster rod gradually tak-
ing more than three minutes.
Do not allow press pressure to exceed 9,807
N (1,000 kgf, 2,205 Ib).
Press the adjuster rod as far as the end sur-
face of the cylinder.
Do not press the adjuster
rod
into the cylinder. Doing so may damage the
cylinder.
4) Measure the extension of rod beyond the body.
If
it is not within specifications, replace with a new
one.
Rod extension: H
5.7fo.5 mm (0.224fo.020 in)
3. BELT TENSION PULLEY
1) Check the mating surfaces of timing belt and
contact point of adjuster rod for abnormal wear or
scratches. Replace the belt tension pulley
if faulty.
2) Check the belt tension pulley for smooth rotation.
Replace if noise or excessive play is noted.
3) Check the belt tension pulley for grease leakage.
4. BELTIDLER
1) Check the idler for smooth rotation. Replace if
noise or excessive play is noted.
2) Check the outer contacting surfaces of idler pul-
ley for abnormal wear and scratches.
3) Check the idler for grease leakage.
H
ME(D0HC TURBO)-56
