CYLINDER HEAD ASSEMBLY
MECHANICAL

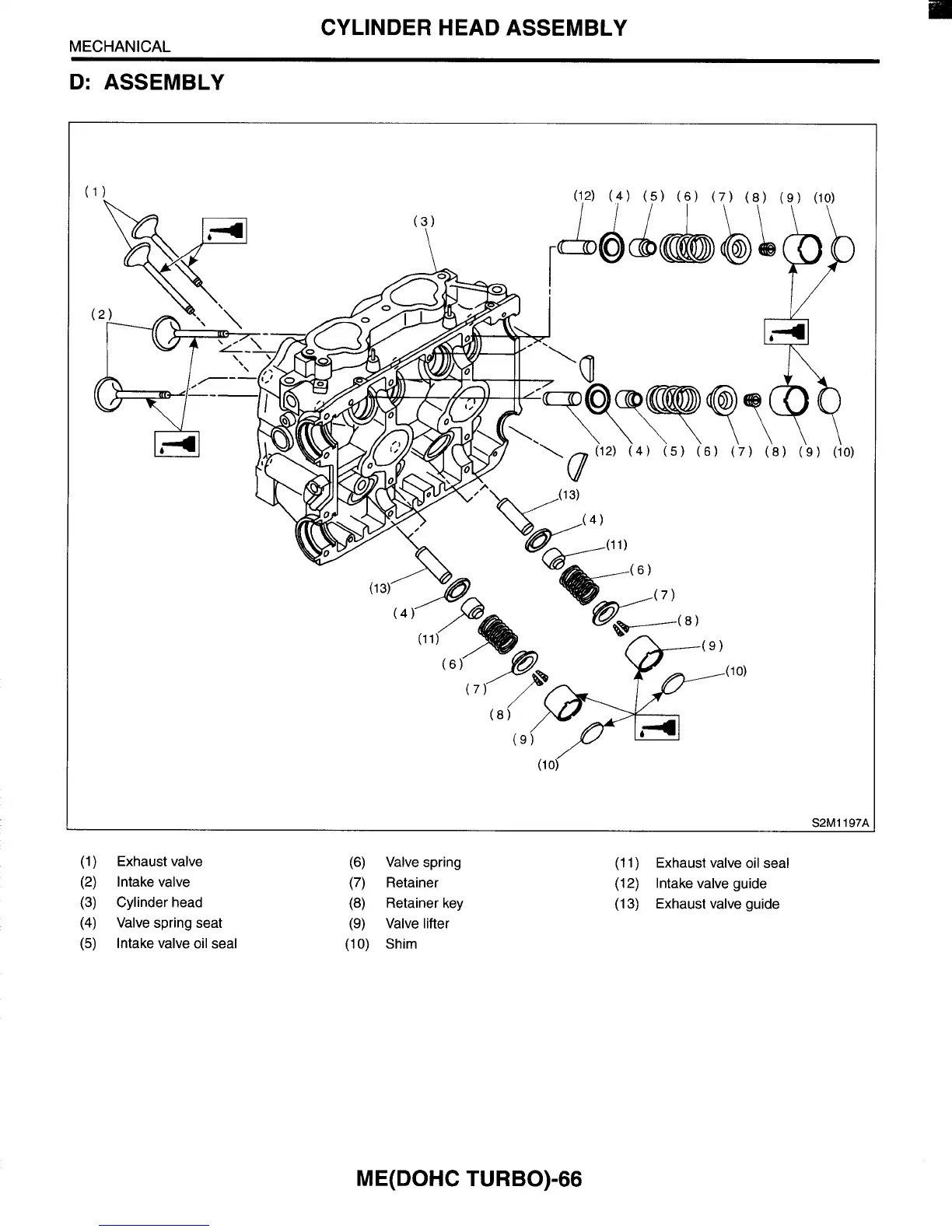

D: ASSEMBLY
S2M1197A
(1) Exhaust valve
(2) Intake valve
(3) Cylinder head
(4) Valve spring seat
(5) Intake valve oil seal
(6) Valve spring
(7) Retainer
(8) Retainer key
(9) Valve lifter
(10) Shim
(1 1)
(1 2) Intake valve guide
(1 3) Exhaust valve guide
Exhaust valve oil seal
ME(D0HC TURBO)-66
