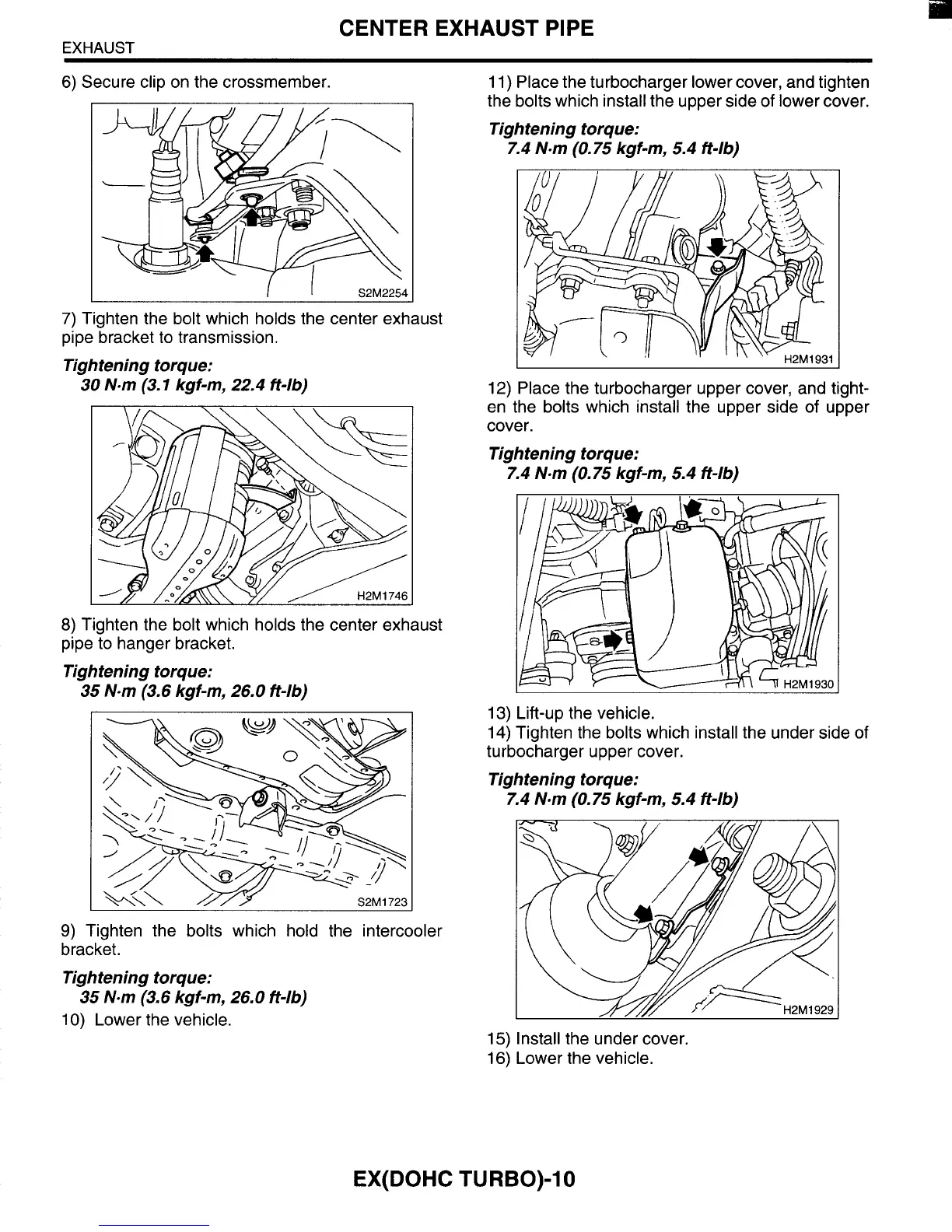

CENTER EXHAUST PIPE
EXHAUST
6) Secure clip on the crossmember.
I I S2M2254
7) Tighten the bolt which holds the center exhaust
pipe bracket to transmission.
Tightening torque:
30 N-m (3.1 kgf-m, 22.4 ff-lb)
8) Tighten the bolt which holds the center exhaust
pipe to hanger bracket.
Tightening torque:
35 N-m (3.6 kgf-m, 26.0
ff-lb)
9) Tighten the bolts which hold the intercooler
bracket
.
Tightening torque:
10) Lower the vehicle.
35 N-m (3.6 kgf-m, 26.0 ff-lb)
11) Place the turbocharger lower cover, and tighten
the bolts which install the upper side
of lower cover.
Tightening torque:
7.4 N.m (0.75 kgf-m, 5.4 ff-lb)
12) Place the turbocharger upper cover, and tight-
en the bolts which install the upper side of upper
cover.
Tightening torque:
7.4 Nom (0.75 kgf-m, 5.4
ff-lb)
13) Lift-up the vehicle.
14) Tighten the bolts which install the under side
of
turbocharger upper cover.
Tightening torque:
7.4 N-m (0.75 kgf-m, 5.4
ff-lb)
15) Install the under cover.
16) Lower the vehicle.
EX(D0HC TURBO)-I 0
