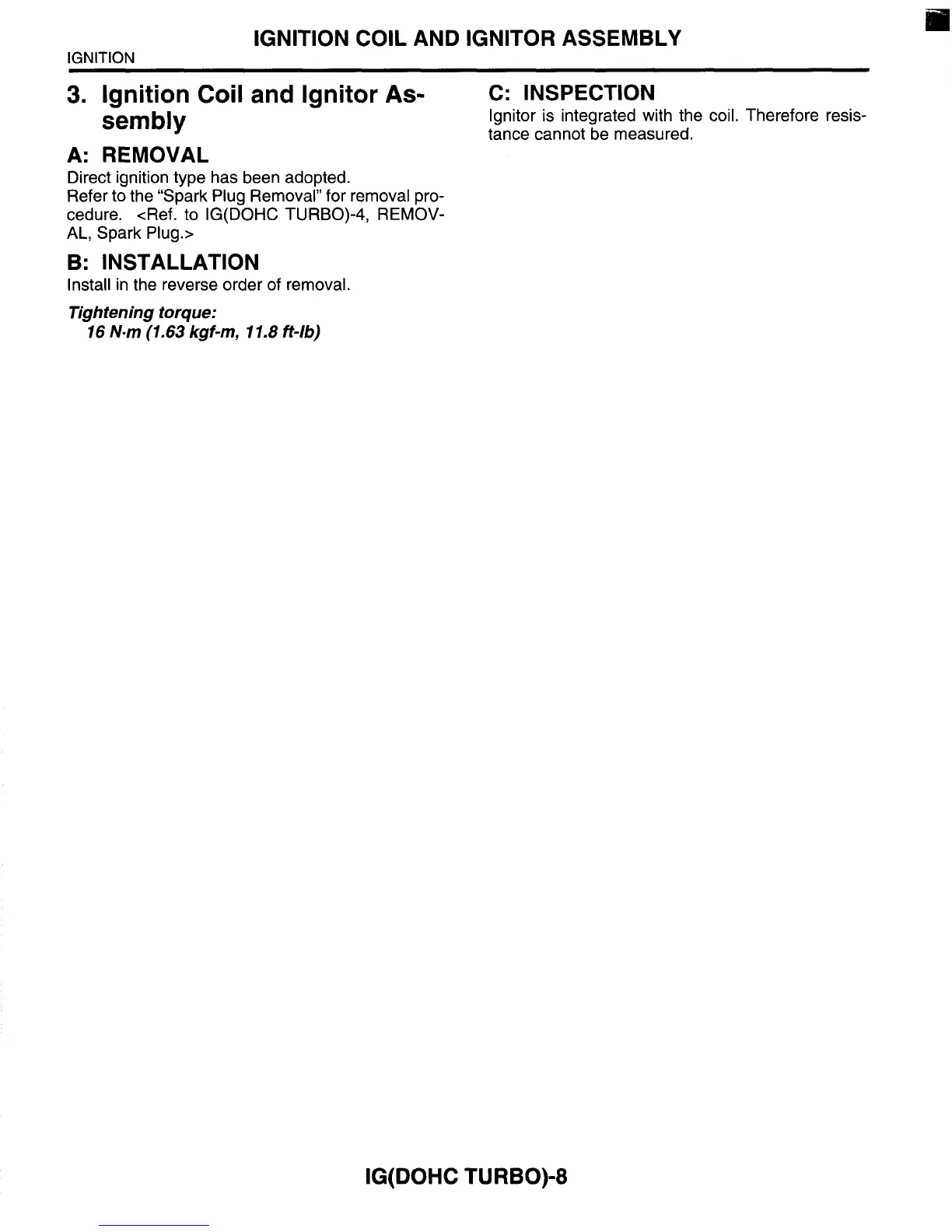

IGNITION COIL AND IGNITOR ASSEMBLY
IGNITION
3.
Ignition
Coil
and Ignitor
As-
sembly
A:
REMOVAL
Direct ignition type has been adopted.
Refer to the “Spark Plug Removal” for removal pro-
cedure. <Ref. to
IG(D0HC
TURBO)-4,
REMOV-
AL,
Spark Plug.>
B:
INSTALLATION
Install in the reverse order of removal.
Tightening torque:
76
N-m
(7.63
kgf-m,
7
7.8
ft-lb)
C: INSPECTION
Ignitor is integrated with the coil. Therefore resis-
tance cannot be measured.
IG(D0HC
TURBO)-8
