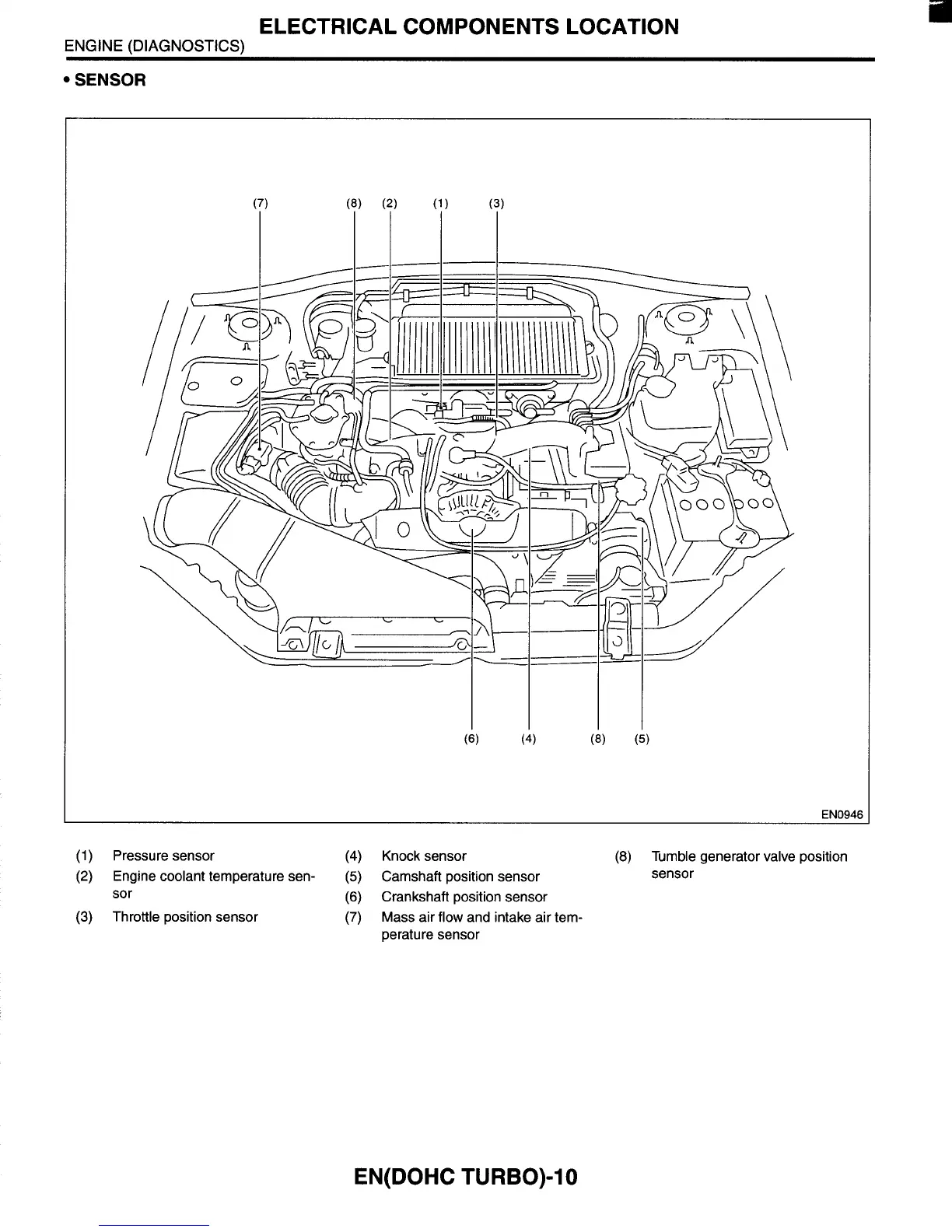

ELECTRICAL COMPONENTS LOCATION
ENGINE (DIAGNOSTICS)
SENSOR
(1) Pressure sensor
(4) Knock sensor (8) Tumble generator valve position
(2) Engine coolant temperature sen- (5) Camshaft position sensor sensor
sor
(6) Crankshaft position sensor
(3) Throttle position sensor (7) Mass air flow and intake air tem-
perature sensor
EN(D0HC TURBO)-IO
