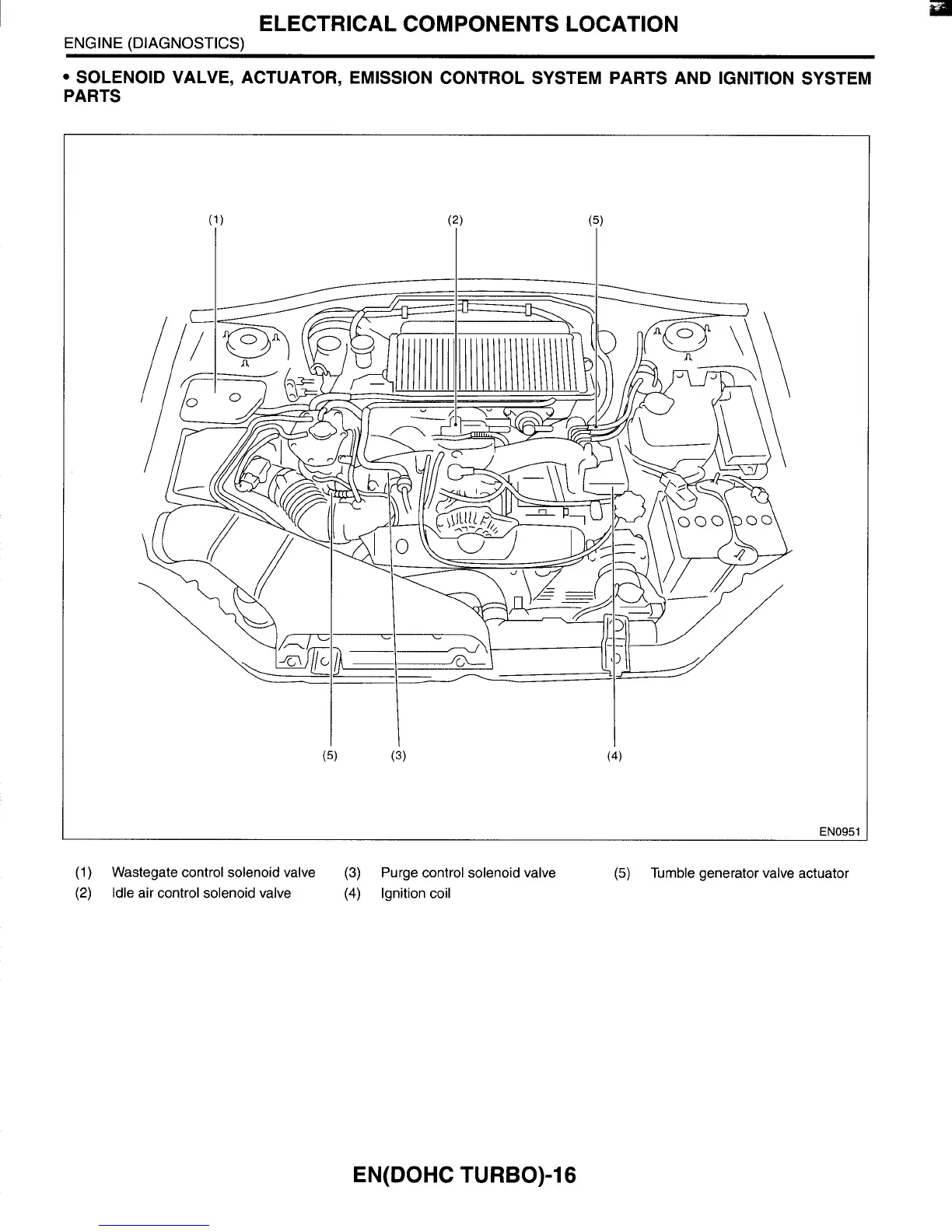

ELECTRICAL COMPONENTS LOCATION
ENGINE
(DIAGNOSTICS)
SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM
PARTS
EN0951
(1)
Wastegate control solenoid valve
(3)
Purge control solenoid valve
(5)
Tumble generator valve actuator
(2)
Idle air control solenoid valve
(4)
Ignition coil
EN(D0HC TURBO)-1
6
