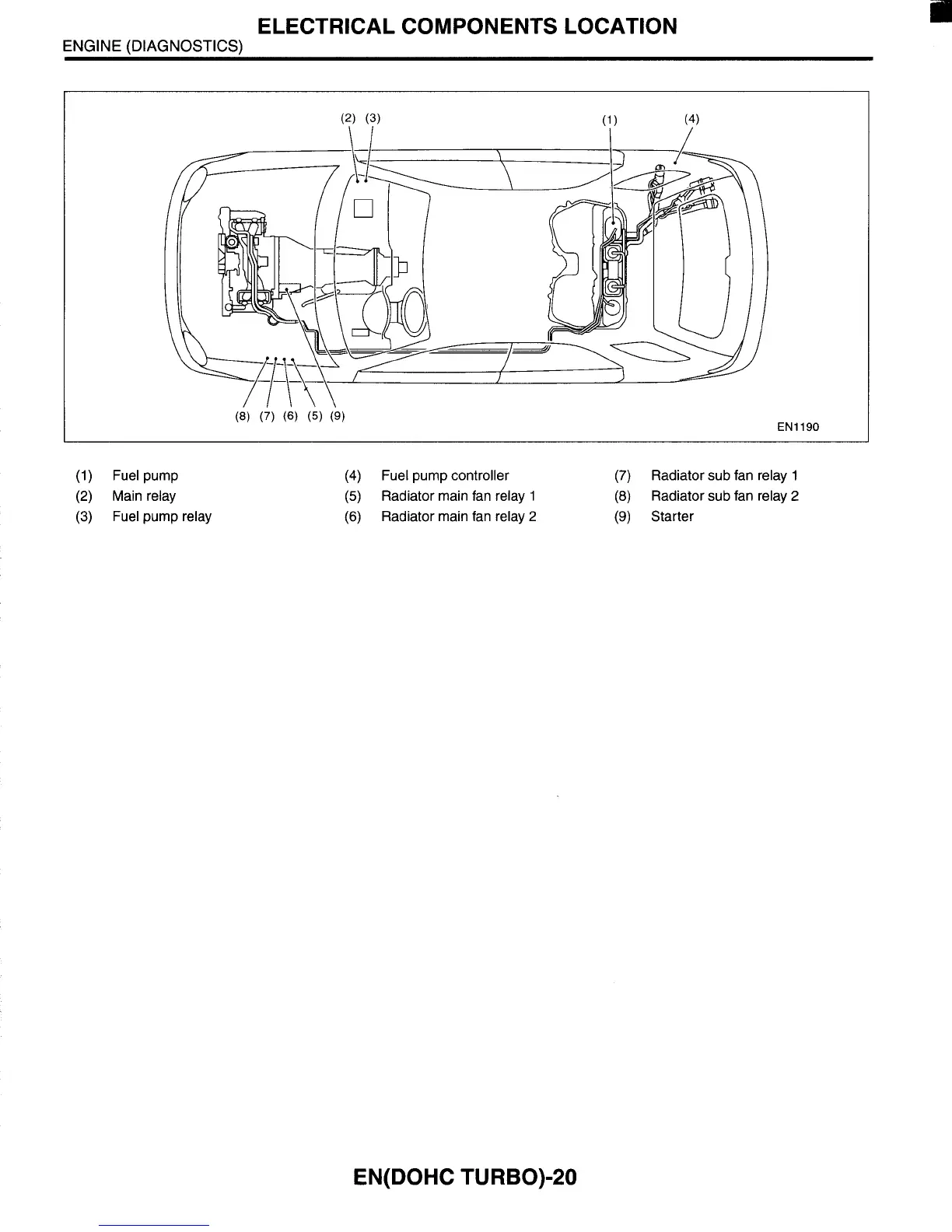

ELECTRICAL COMPONENTS LOCATION
ENGINE (DIAGNOSTICS)
(1) Fuel pump
(2) Main relay
(3) Fuel pump relay
(4) Fuel pump controller (7) Radiator sub fan relay 1
(5) Radiator main fan relay 1 (8) Radiator sub fan relay 2
(6) Radiator main fan relay 2 (9) Starter
EN(D0HC TURBO)-20
