ELECTRICAL COMPONENTS LOCATION
ENGINE (DIAGNOSTICS)

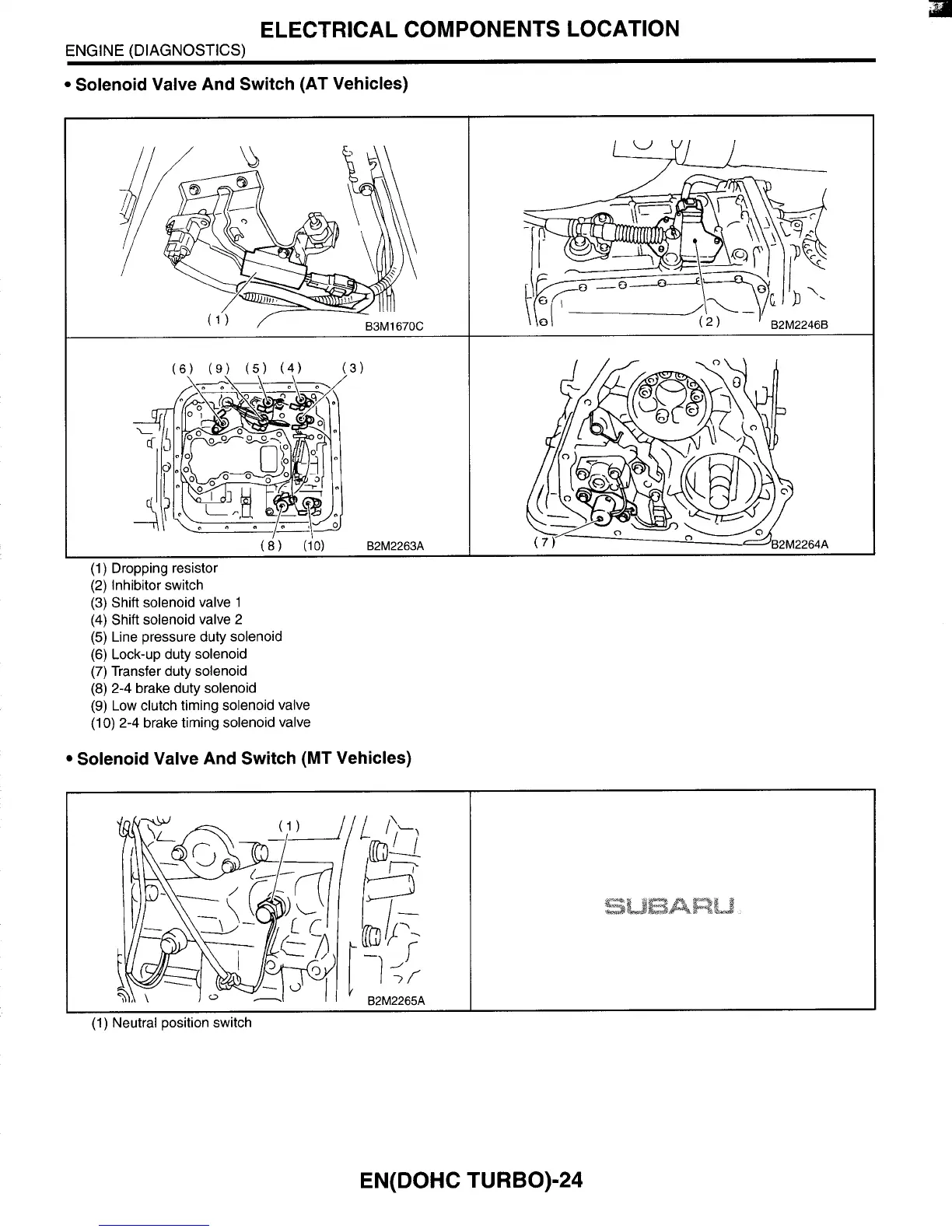

Solenoid Valve And Switch (AT Vehicles)
(8)
(1’0)
02M2263A
(1)
Dropping resistor
(2)
Inhibitor switch
(3)
Shift solenoid valve
1
(4)
Shift solenoid valve
2
(5)
Line pressure duty solenoid
(6)
Lock-up duty solenoid
(7)
Transfer duty solenoid
(8)
2-4
brake duty solenoid
(9)
Low clutch timing solenoid valve
(10)
2-4
brake timing solenoid valve
Solenoid Valve And Switch (MT Vehicles)
2264A
(1)
Neutral position switch
EN( DOHC TU RB0)-24
