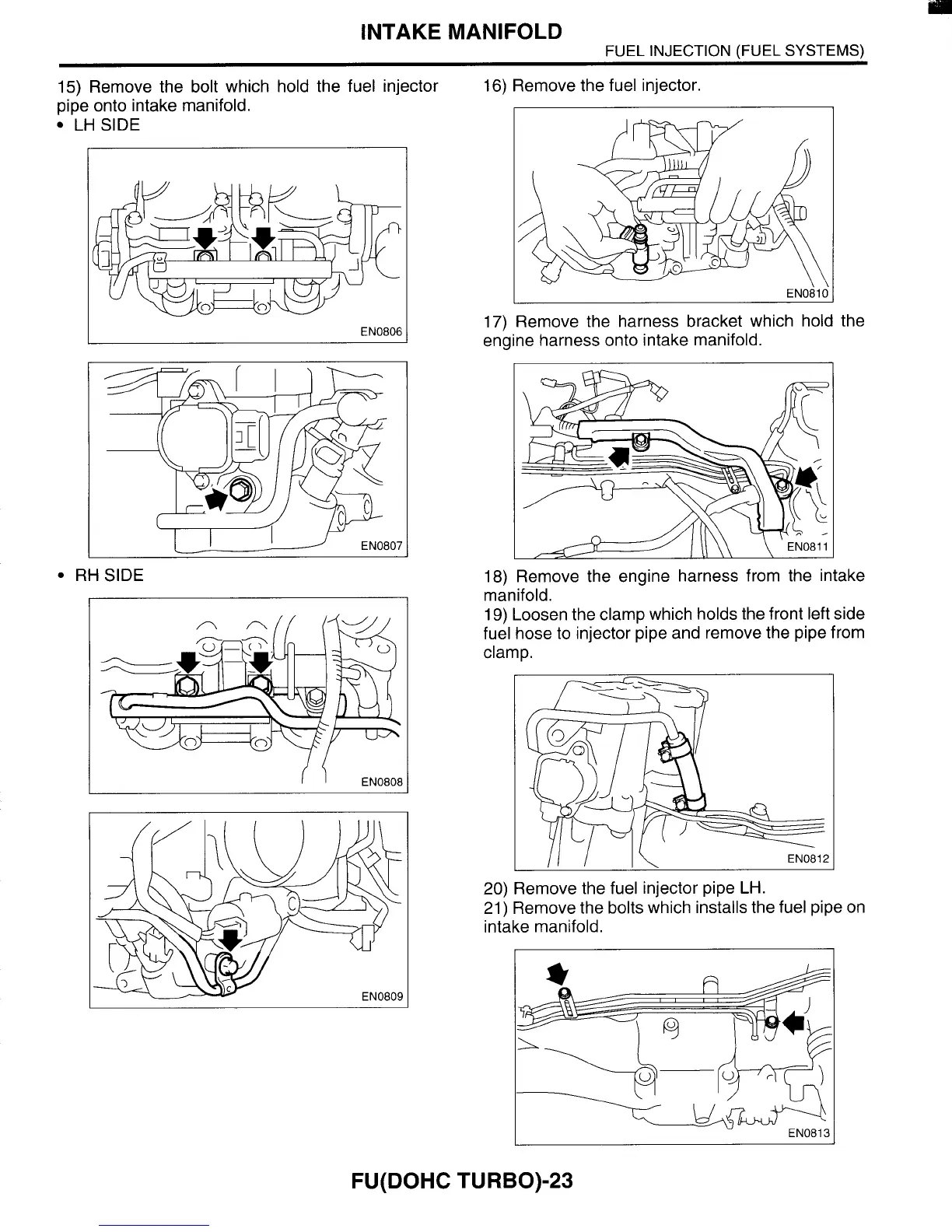

INTAKE MANIFOLD
FUEL
INJECTION
(FUEL
SYSTEMS)
15)
Remove the bolt which hold the fuel injector
pipe onto intake manifold.
LH
SIDE
EN0806
I
EN0807
I
I’
RH
SIDE
I
EN0808
16)
Remove the fuel injector.
17)
Remove the harness bracket which hold the
engine harness onto intake manifold.
18)
Remove the engine harness from the intake
manifold.
19) Loosen the clamp which holds the front left side
fuel hose
to
injector pipe and remove the pipe from
clamp.
I
II
I
I\
EN081
2
20)
Remove the fuel injector pipe
LH.
21)
Remove the bolts which installs the fuel pipe on
intake manifold.
