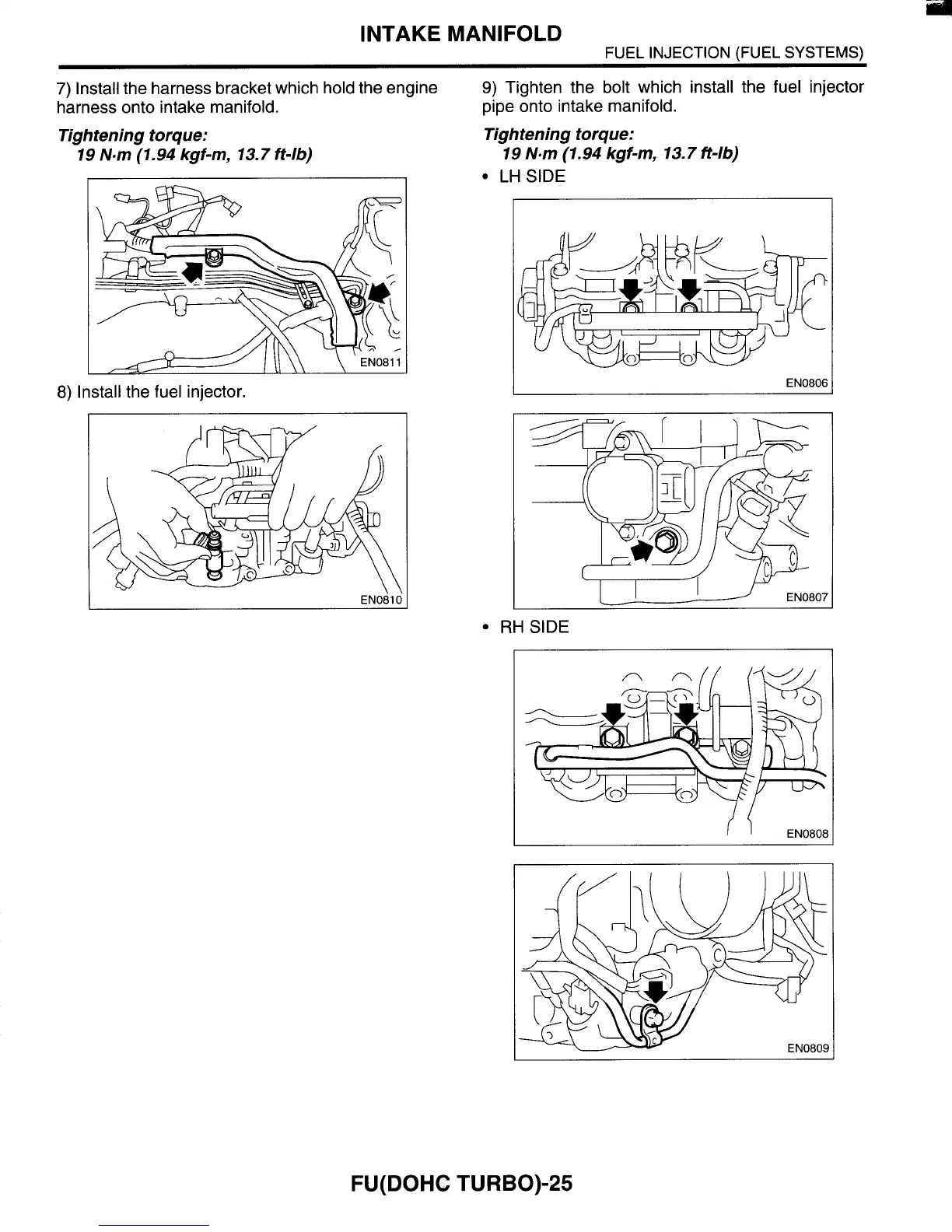

INTAKE MANIFOLD
FUEL INJECTION (FUEL SYSTEMS)
____~
7) Install the harness bracket which hold the engine
9) Tighten the bolt which install the fuel injector
harness onto intake manifold.
Tightening torque:
-
19 N.m (1.94 kgf-m, 13.7 ft-lb)
.-
pipe onto intake manifold.
Tightening torque:
LH SIDE
19 N.m (1.94 kgf-m, 13.7 fi-lb)
8)
Install the fuel injector
EN0806
I
EN0807
ENO~IO
RH SIDE
FU(D0HC TURBO)-25
