DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)
AQ:DTC PO341
-
CAMSHAFT POSITION SENSOR CIRCUIT RANGE/PERFOR-
MANCE PROBLEM
-
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
Engine stalls.
Failure
of
engine to start
CAUTION:
After repair
or
replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(D0HC TURBO)-
49,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(D0HC TURBO)-46, Inspec-
tion Mode.>.

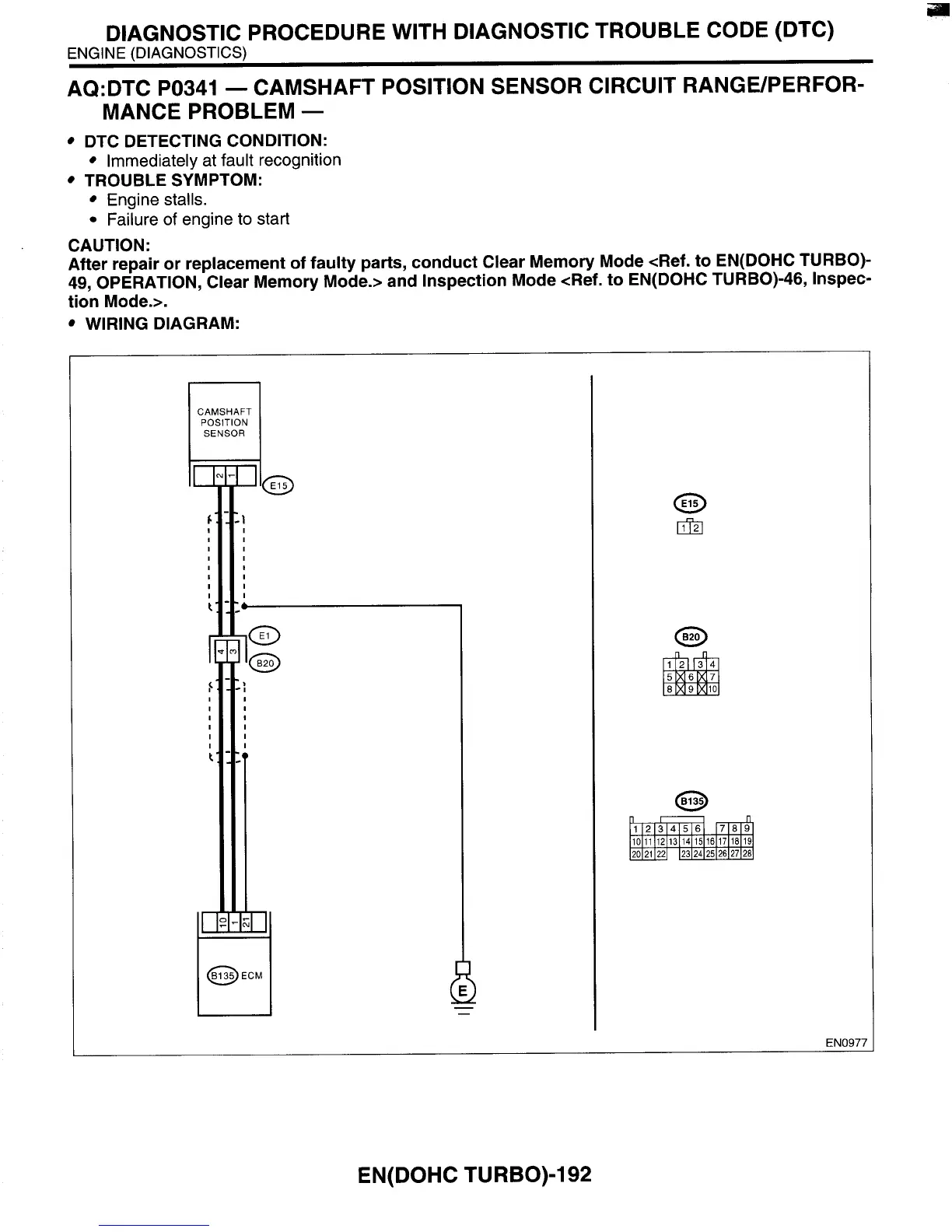

WIRING DIAGRAM:
h
E
I
I
I
I
I
I
I
I
t
1
F
I
I
I
I
I
I
t
IC
CAMSHAFT
POSITION
SENSOR
@
ECM
I
ENO97;
EN(D0HC TURBO)-I92
