Generally, it is not recommended to use them as input pins. If you wish to use these pins, consider
the potential impact on the booting process. For more details, please refer to the Strapping Pins
section.

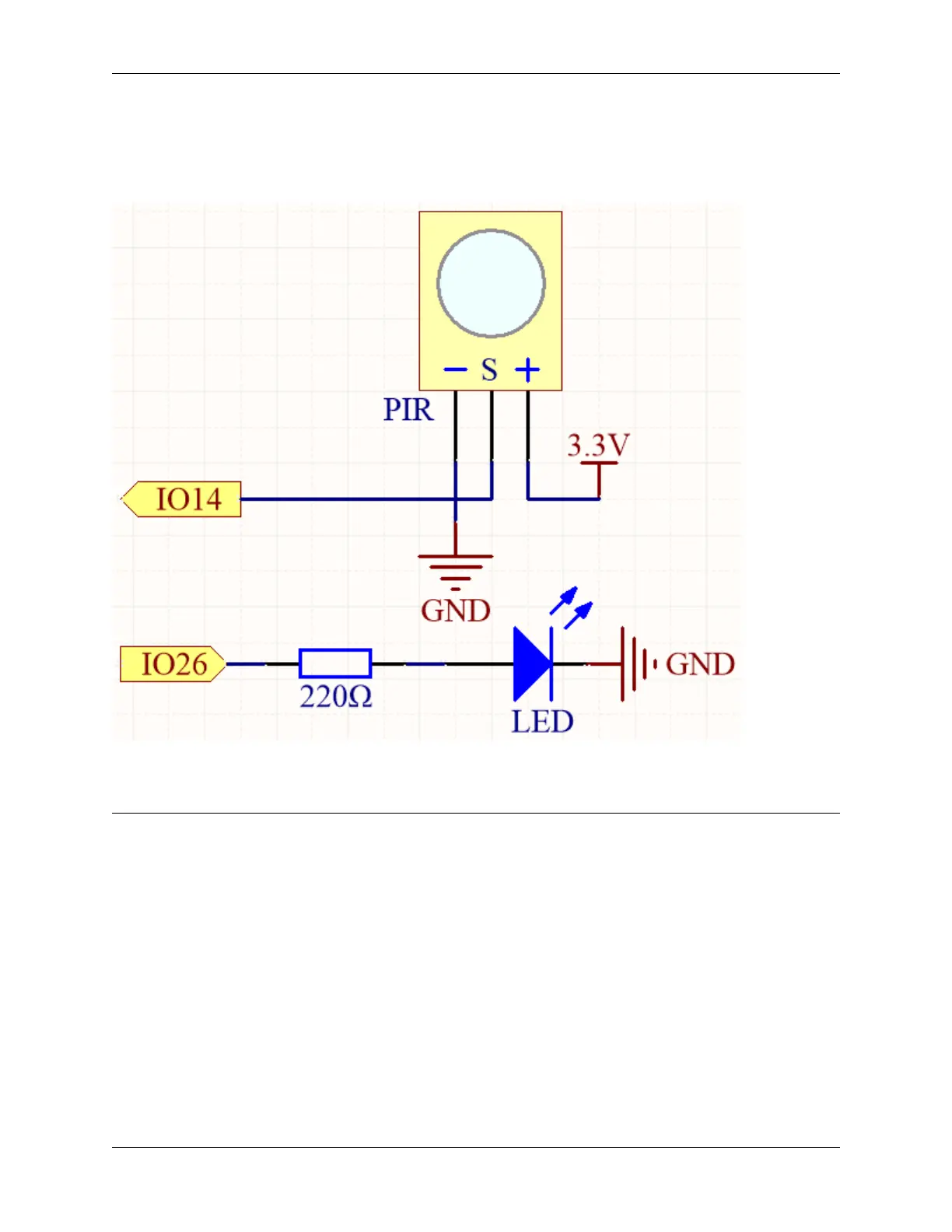

Schematic
When the PIR module detects motion, IO14 will go high, and the LED will be lit. Otherwise, when no motion is
detected, IO14 will be low, and the LED will turn off.
Note: The PIR module has two potentiometers: one adjusts sensitivity, the other adjusts detection distance. To make
the PIR module work better, you need to turn both of them counterclockwise to the end.
1.21. 5.5 Detect Human Movement 75
