4-6 ELECTRICAL
ELECTRIC STARTER SYSTEM
OUTLINE

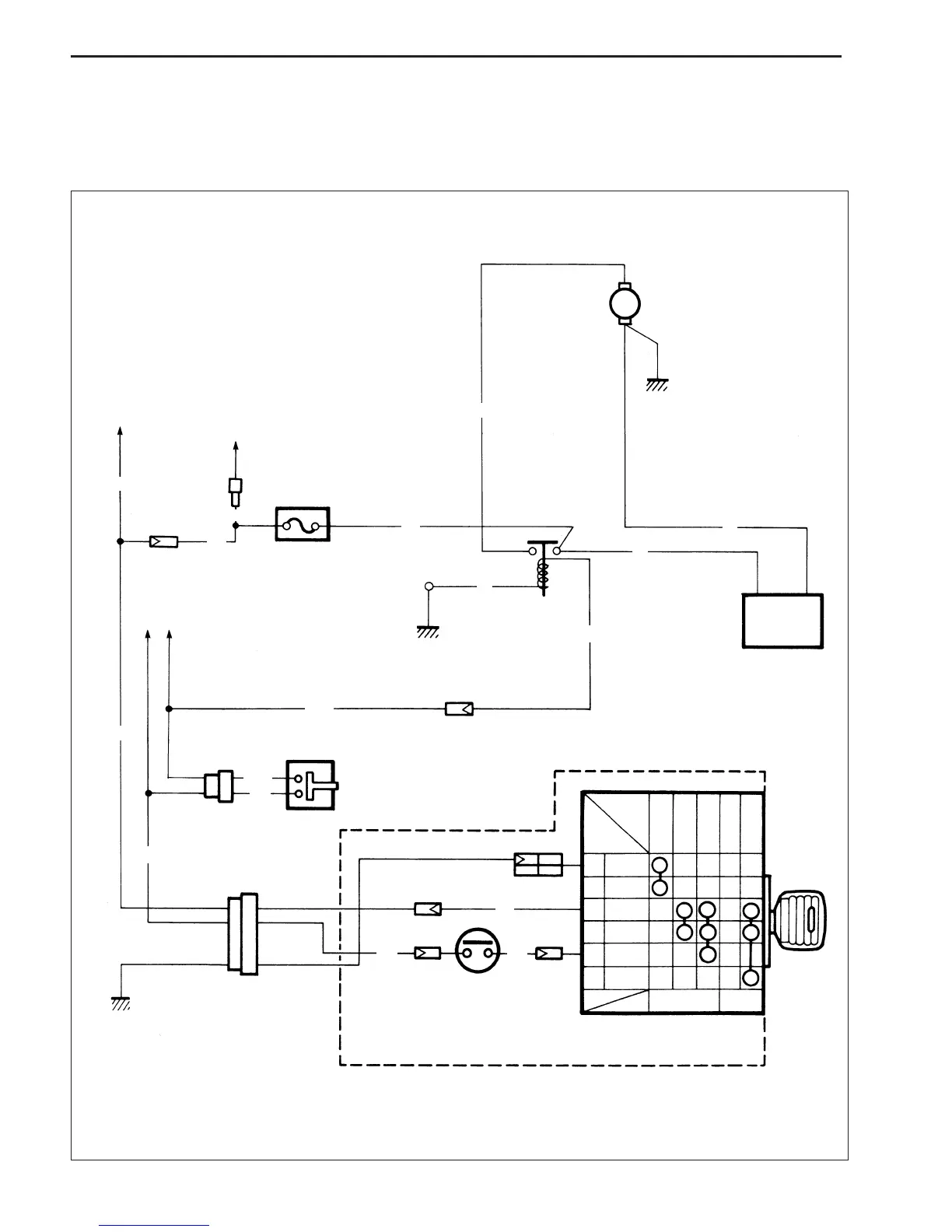

The electric starter system circuit is illustrated below. It is mainly composed of the battery, the starter motor,
the relay, the neutral switches and the ignition switch.
To ECM
main relay
To Rectifier
& regulator
30A Fuse
To ECM
Neutral switch
Neutral switch
Remote control box
Ignition
switch
Battery
-+
Starter motor
M
B
W
Br
GND
BATT
START
OFF ON START FREE PUSH
Br
Br
W
W
W
W
W
R
B
R
B
W
Br
Br
Y/G
Y/G
Y/G

Suzuki DF 60 Specifications

General

Cylinders	3
Steering	Remote
Starting System	Electric
Max Power Output	60 hp
Trim Method	Power Trim and Tilt
Engine Type	4-stroke
Displacement	941 cc
Fuel Delivery System	Sequential Multi Point Fuel Injection
Maximum Output	60 HP
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Recommended Fuel	Unleaded gasoline
Exhaust	Through propeller hub
Cooling System	Water-cooled
Warranty	3-year limited warranty
