POWER UNIT 6-15
DISASSEMBLY

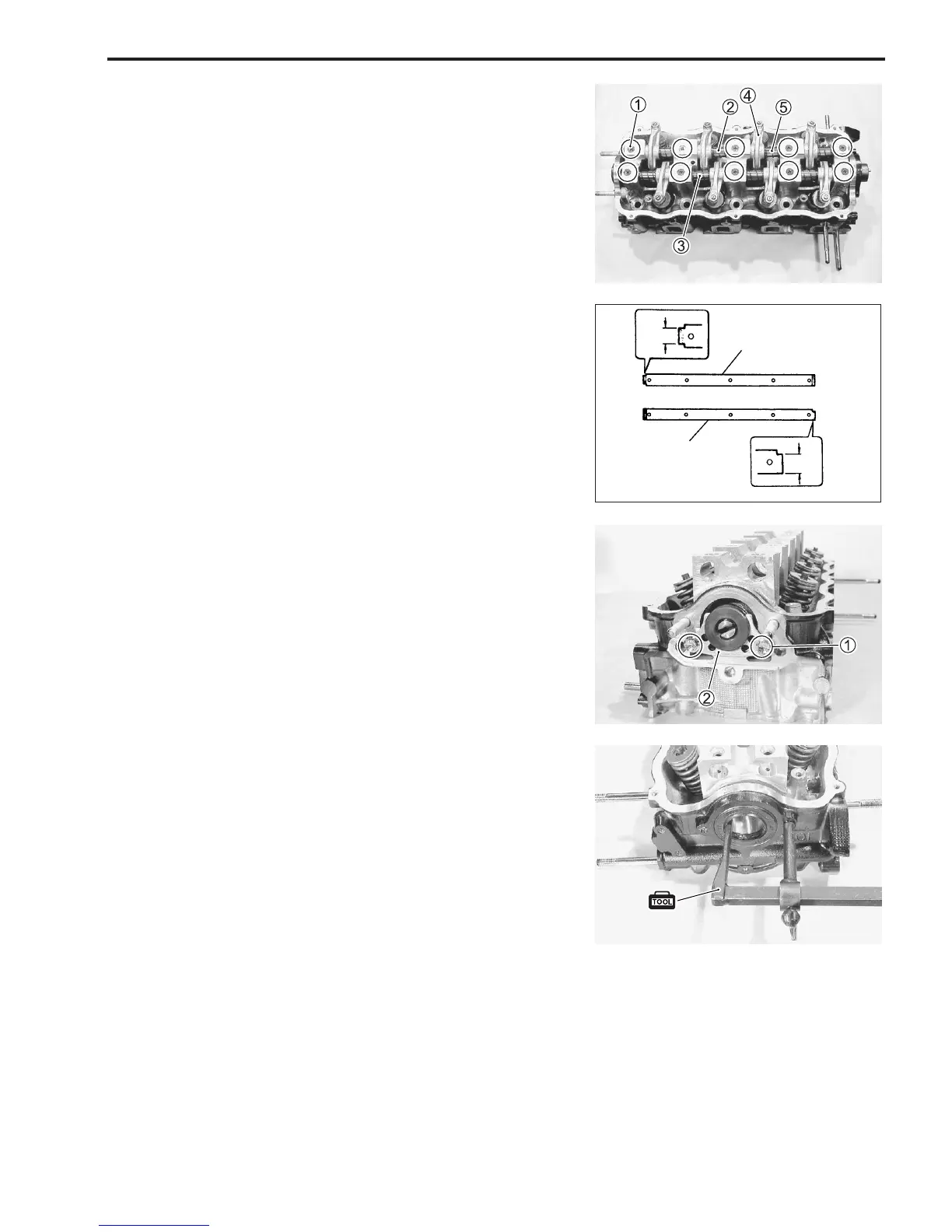

1. Remove the ten screws 1.
2. Remove the intake rocker arm shaft 2 and the exhaust rocker
arm shaft 3.
3. Remove all rocker arms 4 and all springs 5.
NOTE:
The intake rocker arm shaft differs from the exhaust one in shape
as shown.
4. Remove the two bolts 1 and the camshaft thrust plate 2.
5. Remove the oil seal using the special tool.
$ 09913-50121: Oil seal remover
6. Remove the camshaft pulling toward the pulley side.
