Suzuki DF 60 Service Manual

7-16 MID UNIT
REASSEMBLY
Reassembly is reverse order of removal with the special attention to the following steps.
50 N·m
5.0 kgf-m
36.0 lb-ft
23 N·m
2.3 kgf-m
16.5 lb-ft
27 N·m
2.7 kgf-m
19.5 lb-ft
70 N·m
7.0 kgf-m
50.5 lb-ft
23 N·m
2.3 kgf-m
16.5 lb-ft
23 N·m
(2.3 kgf-m, 16.5 lb-ft)

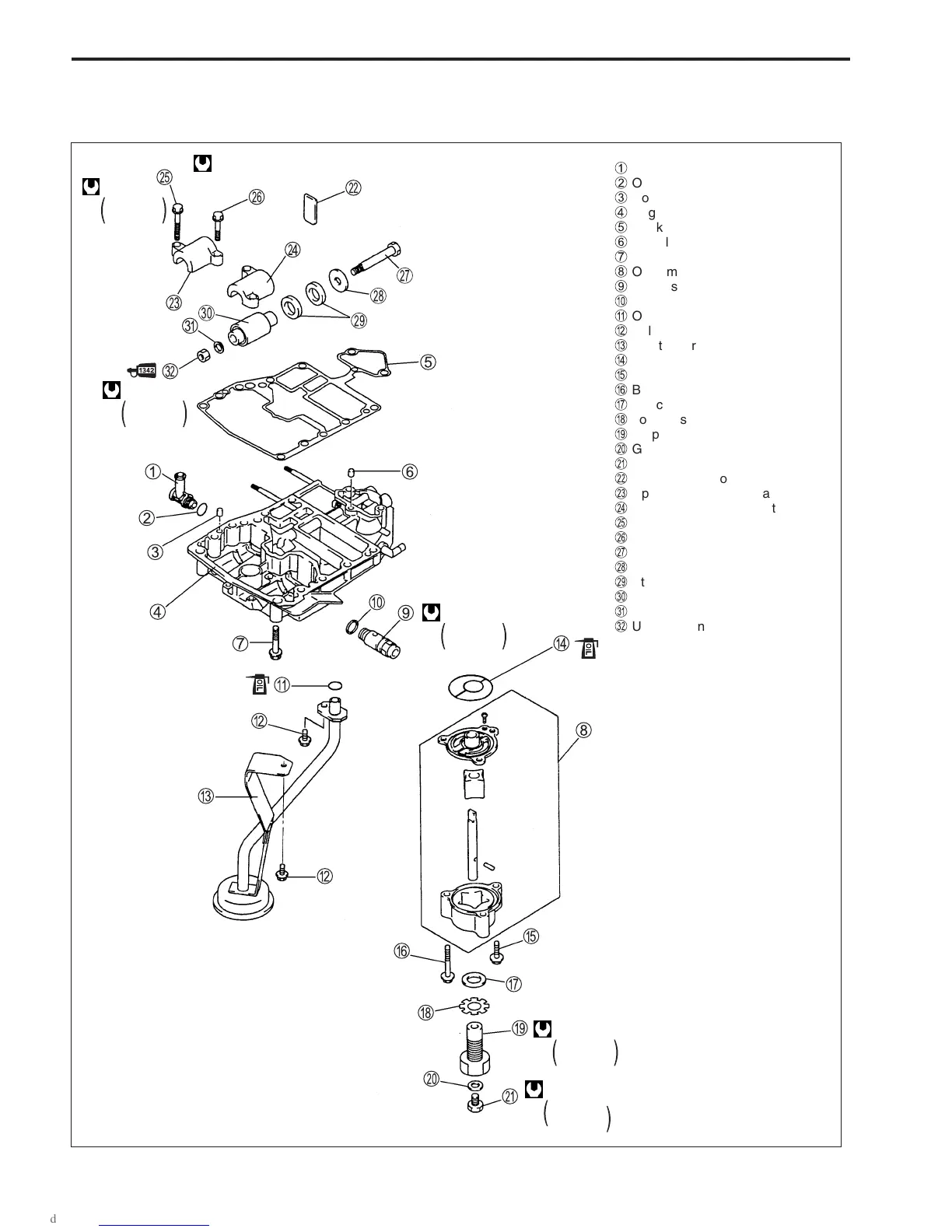

1 Water pipe
2 O-ring
3 Dowel pin
4 Engine holder
5 Gasket
6 Dowel pin
7 Bolt
8 Oil pump assy
9 Oil pressure regulator
0 Gascket
A O-ring
B Bolt
C Oil strainer
D O-ring
E Bolt
F Bolt
G Gascket
H Lock washer
I Oil pump stopper
J Gascket
K Bolt
L Upper thrust mount
M Upper mount cover (starboard)
N Upper mount cover (port)
O Bolt
P Bolt
Q Bolt
R Washer
S Stopper
T Upper mount
U Washer
V Upper mount nut

Suzuki DF 60 Specifications

General

Cylinders	3
Steering	Remote
Starting System	Electric
Max Power Output	60 hp
Trim Method	Power Trim and Tilt
Engine Type	4-stroke
Displacement	941 cc
Fuel Delivery System	Sequential Multi Point Fuel Injection
Maximum Output	60 HP
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Recommended Fuel	Unleaded gasoline
Exhaust	Through propeller hub
Cooling System	Water-cooled
Warranty	3-year limited warranty
