PERIODIC MAINTENANCE 2-11
TIMING BELT
• Inspect every 200 hours (12 months).
• Replace every 800 hours or 4 years.
If wear, crack or other damage is found, replace the timing belt.

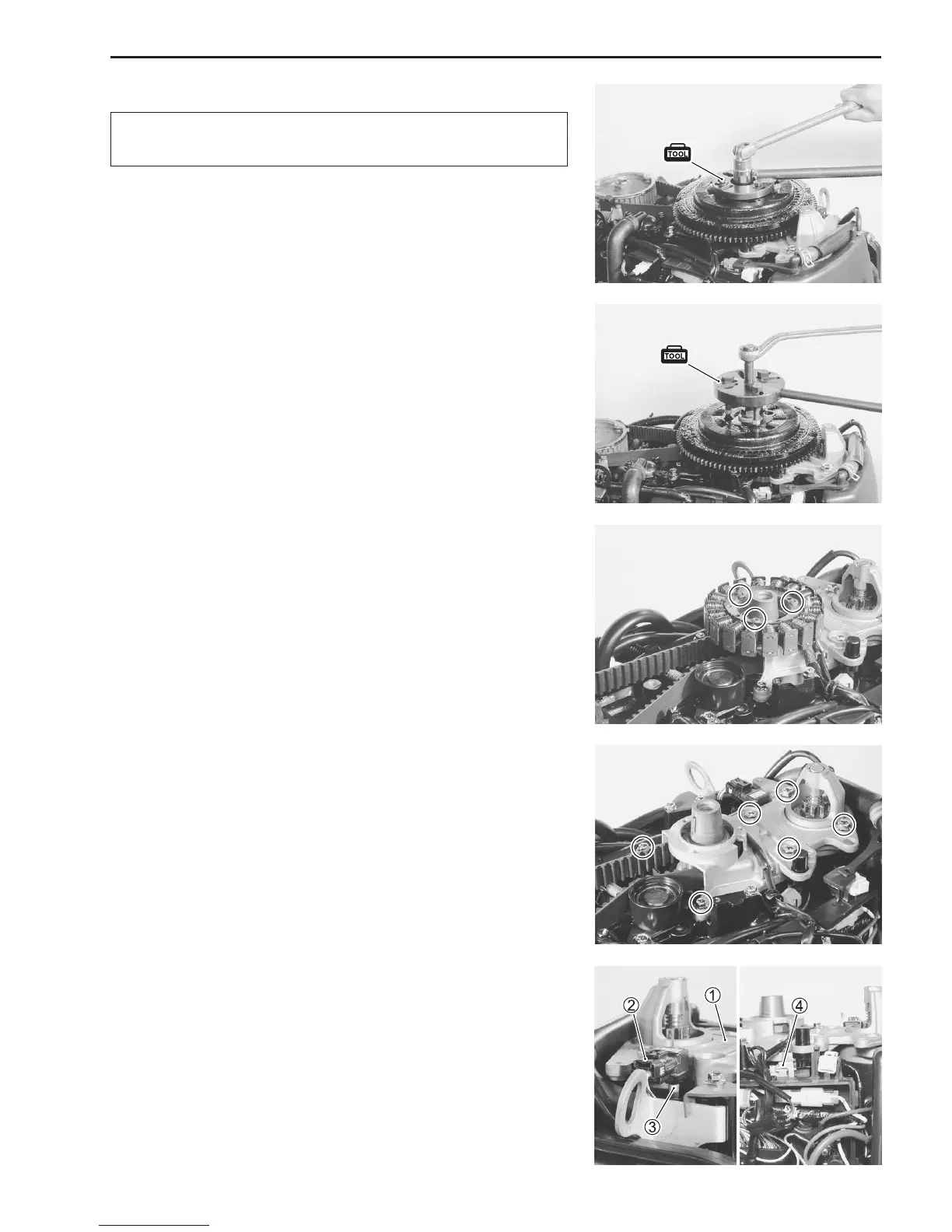

1. Replace the following parts.
• Flywheel cover
• Spark plugs
• Flywheel (See the page 3-52)
• Battery charge coil (See the page 4-4)
! 09930-48720: Flywheel holder
09930-39411: Flywheel remover
09930-39420: Flywheel remover bolt
2. Remove the six bolts.
3. Disconnect the wire 2 and the hose 3 from the MAP sen-
sor.
4. Disconnect the wire 4 from the CKP sensor.
5. Remove the bracket 1.
To Next Page
