Suzuki DF 60 - Pinion Bearing

LOWER UNIT 9-7
REMOVAL

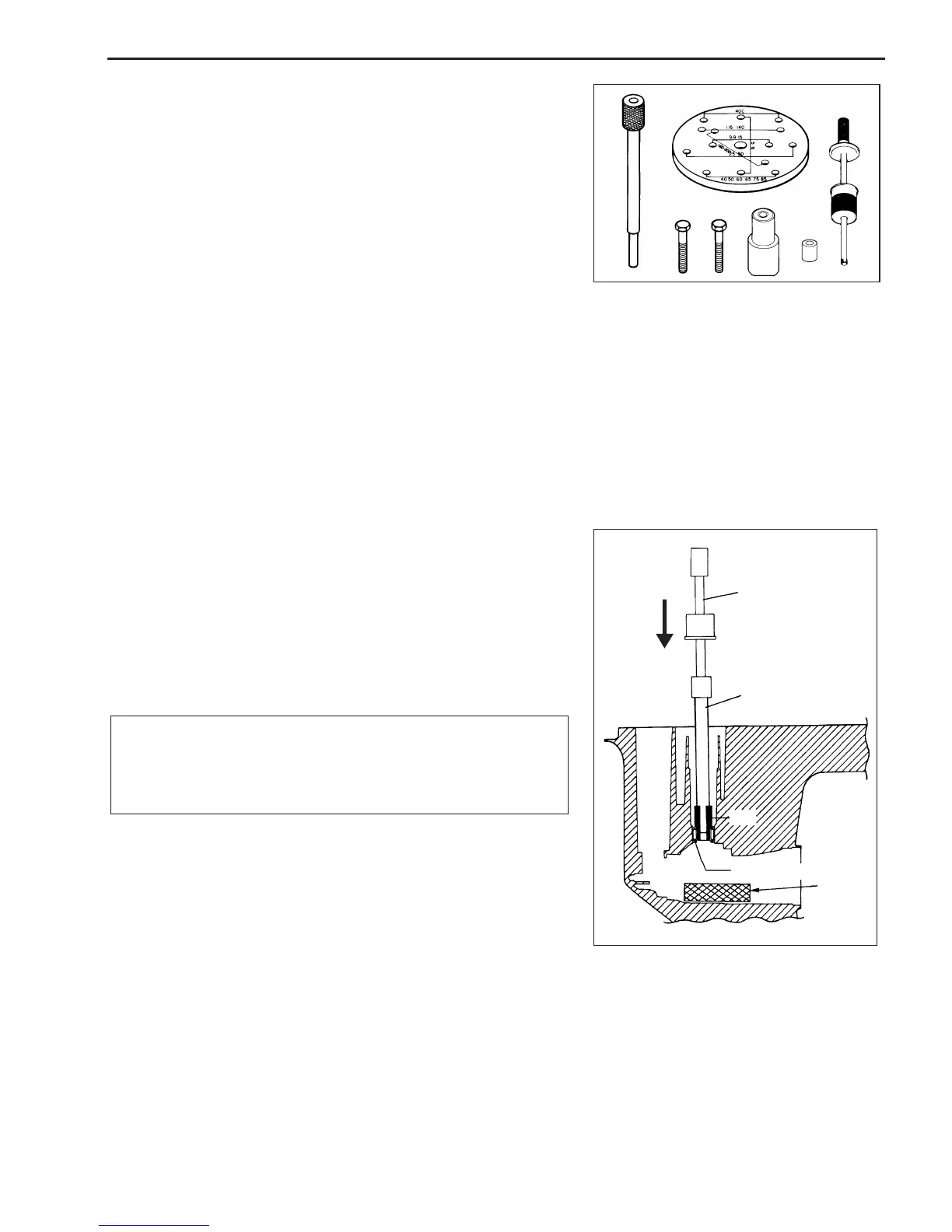

1. Place the attachment 4 inside the pinion bearing.
2. Insert the shaft 1 into the attachment 4.
3. Thread the sliding hammer 6 into the top of the shaft 1.
4. Put a wood block under the pinion bearing.
5. Drive the pinion bearing out downward by striking the top of
the shaft 1 with the sliding hammer 6.
#
• When removing the pinion bearing, use care to avoid
damaging the gearcase.
• Do not re-use the pinion bearing once removed.
Always use a new pinion bearing.
1
4
Pinion bearing
Wood
block
1
3
4
6
PINION BEARING
Removal / installation is in the following procedure.
Removal & Installation Tools
" 09951-59910: Shaft (removal & installation) 1
09551-39914: plate 2
01500-08403: Bolt 3
09951-19421: Attachment 4
09917-98221: Spacer (Attachment) 5
09930-30104: Sliding hammer 6
6
2
5
