Suzuki DF 60 Service Manual

7-4 MID UNIT
TILLER HANDLE
REMOVAL / DISASSEMBLY
REMOVAL

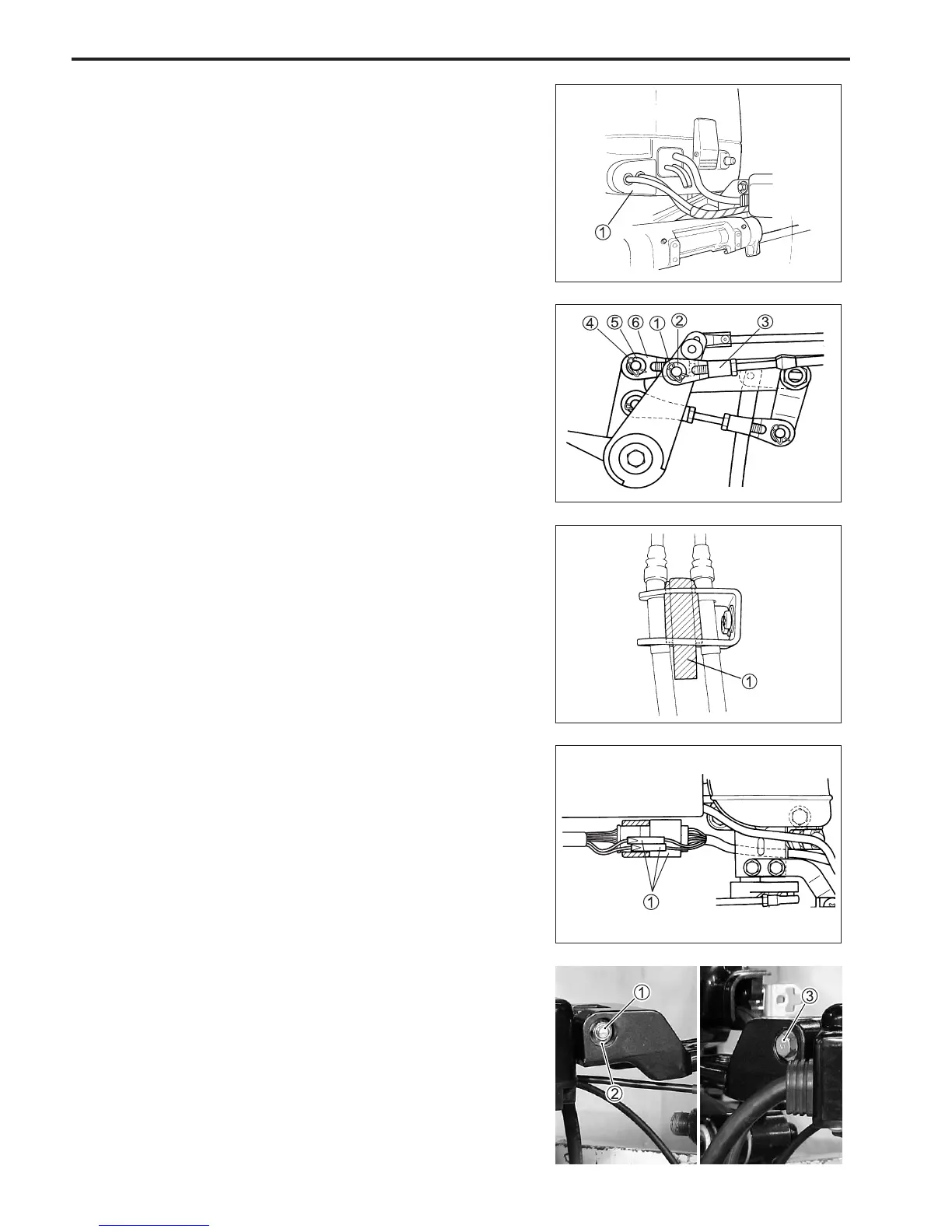

1. Remove the rigging port grommet 1 from the front panel.
2. Remove both side covers. (See the page 7-2.)
3. Remove the snap pin 1, the washer 2 and the throttle cable
connector 3 from the throttle control arm.
4. Unthread the connector from the throttle cable.
5. Remove the snap pin 4, the washer 5 and the shift cable
connector 6 from the clutch control arm.
6. Unthread the connector from the shift cable.
7. Remove the cable stopper 1 from between the cables.
8. Disconnect the handle wire harness connectors 1 from the
engine wiring harness.
9. Remove the nut 1 and the washer 2.
10. Loosen and remove the handle pivot bolt 3.
11. Remove the tiller handle assembly.
12. Account for the three washers and the spring.
