Suzuki DF 60 Service Manual

10-2 ROUTING AND DIAGRAM

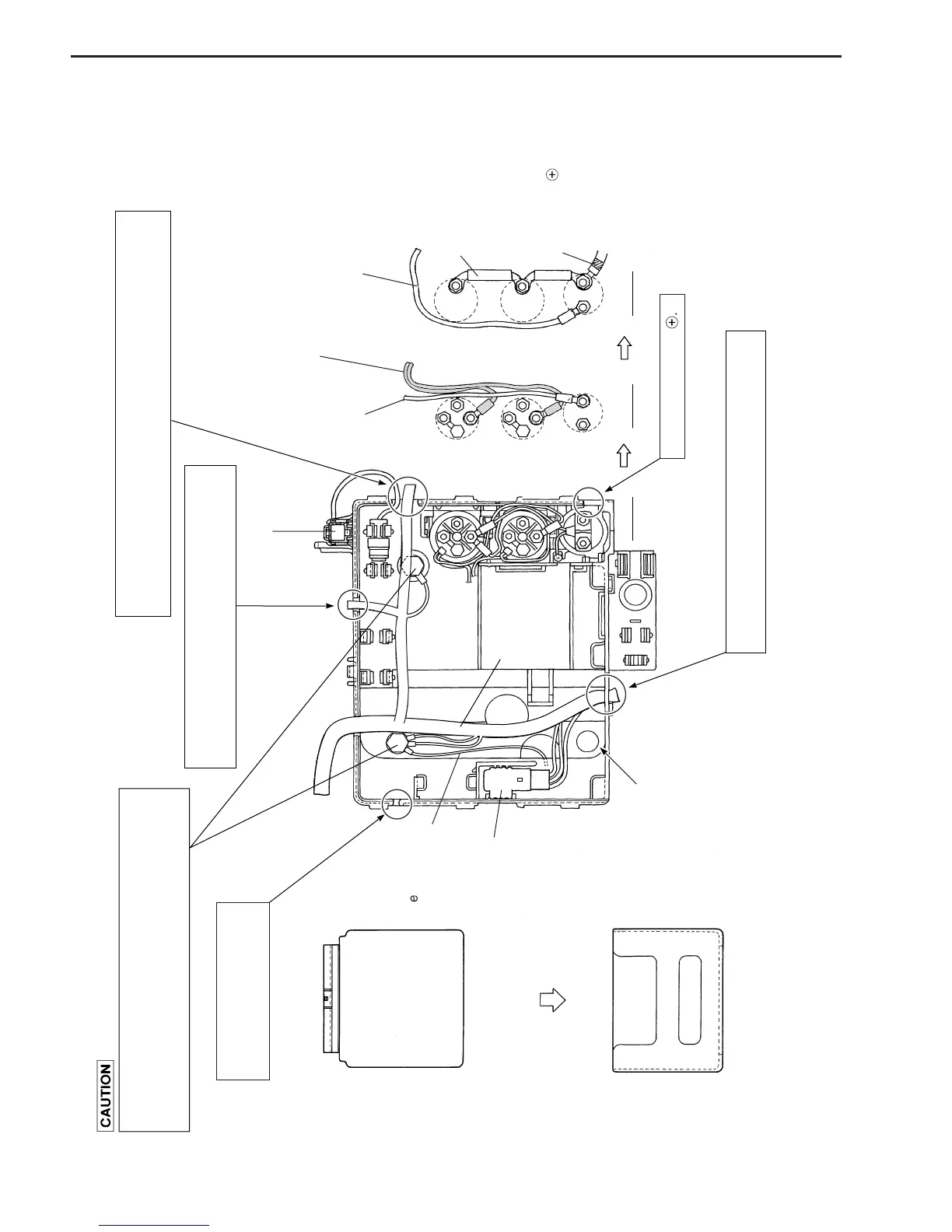

WIRE ROUTING
ECM
Cushion
PTT motor relay ground wire (B)
30A fuse case
Route wire harness (connected to MAP sensor), CKP sensor wire, CMP sensor wire and battery charge coil wire.
Route cylinder temperature sensor wire and exhaust manifold temp. sensor wire.
Fuse case wire (W)
Route wire harness (connected to remo-con/meter), neutral switch wire and CTP switch wire.
Route battery cable
+
.
Cushion (4-places)
Step 1
Step 2
Step 3
Route wire harness (connected to IAC valve/IAT sensor/fuse case/ communication connector), PTT cable (Bl and G), PTT motor relay ground wire (B) and starter motor sub cable (R).
Starter motor sub cable (R)
Relay terminal plate
Battery cable
+
Rectifier & regulator GND wire
ECM main relay /Holder
Engine wire harness
These ground points are most important for engine control system. After wiping off any dirt using a cloth dipped with thinner, tighten bolts with ground wires securely.

Suzuki DF 60 Specifications

General

Cylinders	3
Steering	Remote
Starting System	Electric
Max Power Output	60 hp
Trim Method	Power Trim and Tilt
Engine Type	4-stroke
Displacement	941 cc
Fuel Delivery System	Sequential Multi Point Fuel Injection
Maximum Output	60 HP
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Recommended Fuel	Unleaded gasoline
Exhaust	Through propeller hub
Cooling System	Water-cooled
Warranty	3-year limited warranty
