Suzuki DF 60 Service Manual

MID UNIT 7-25

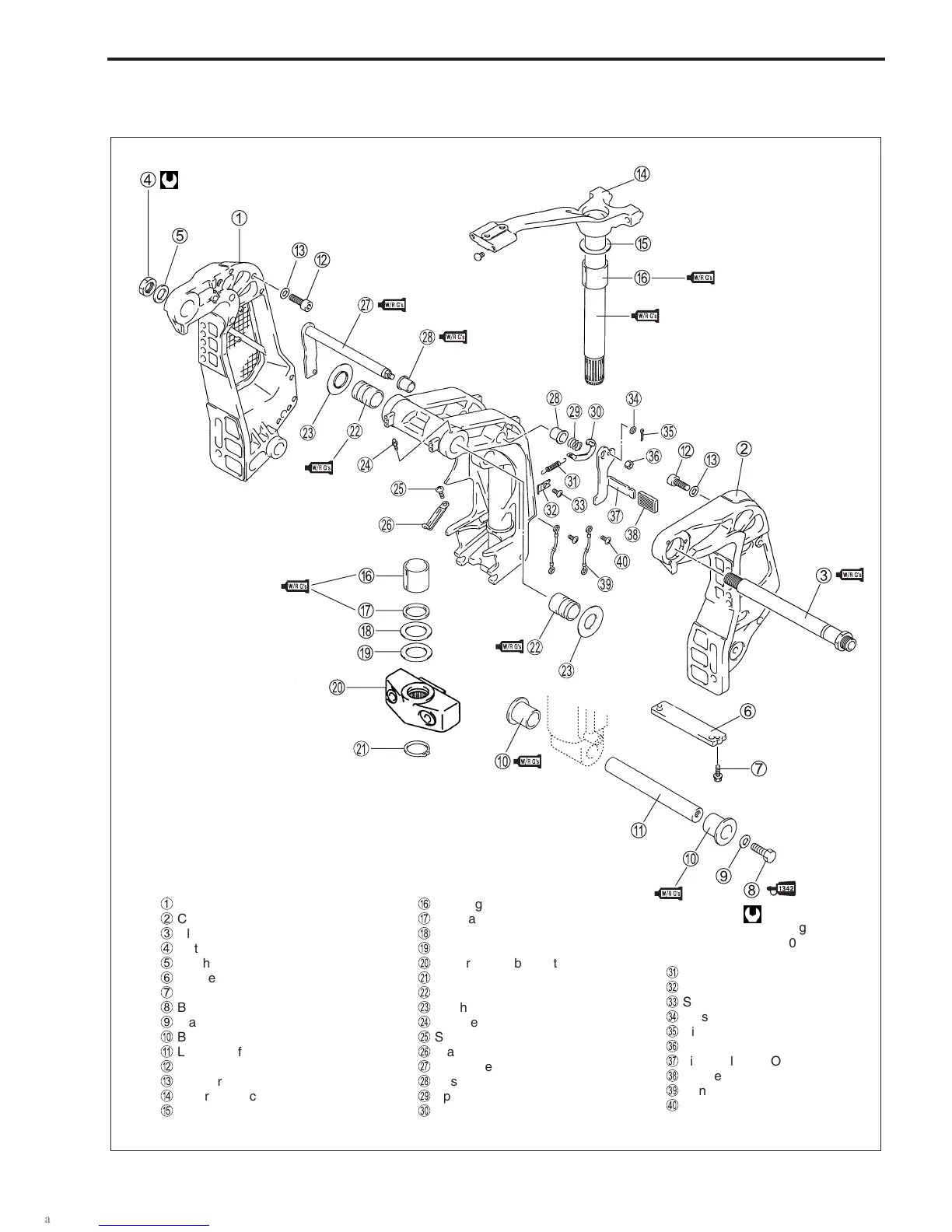

REASSEMBLY
Reassembly is reverse order of removal with the special attention to the following steps.
43 N
.
m (4.3 kg-m, 31.0 lb-ft)
1 Clamp bracket STBD
2 Clamp bracket PORT
3 Clamp bracket shaft
4 Nut
5 Washer
6 Anobe
7 Bolt
8 Bolt
9 Washer
0 Bushing
A Lower shaft
B Bolt
C Washer
D Steering bracket
E Washer
F Bushing
G Oil seal
H Washer
I Shim
J Lower mount bracket
K Circlip
L Bushing
M Washer
N Grease nipple
O Screw
P Clapm
Q Tilt lock lever
R Bushing
S Spring
T Link
U Spring
V Bracket
W Screw
X Washer
Y Pin
Z Nut
[ Tilt lock lever PORT
\ Rubber
] Bonding wire
^ Screw
50 N
.
m
(5.0 kg-m,
36.0 lb-ft)

Suzuki DF 60 Specifications

General

Cylinders	3
Steering	Remote
Starting System	Electric
Max Power Output	60 hp
Trim Method	Power Trim and Tilt
Engine Type	4-stroke
Displacement	941 cc
Fuel Delivery System	Sequential Multi Point Fuel Injection
Maximum Output	60 HP
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Recommended Fuel	Unleaded gasoline
Exhaust	Through propeller hub
Cooling System	Water-cooled
Warranty	3-year limited warranty
