9-6 LOWER UNIT

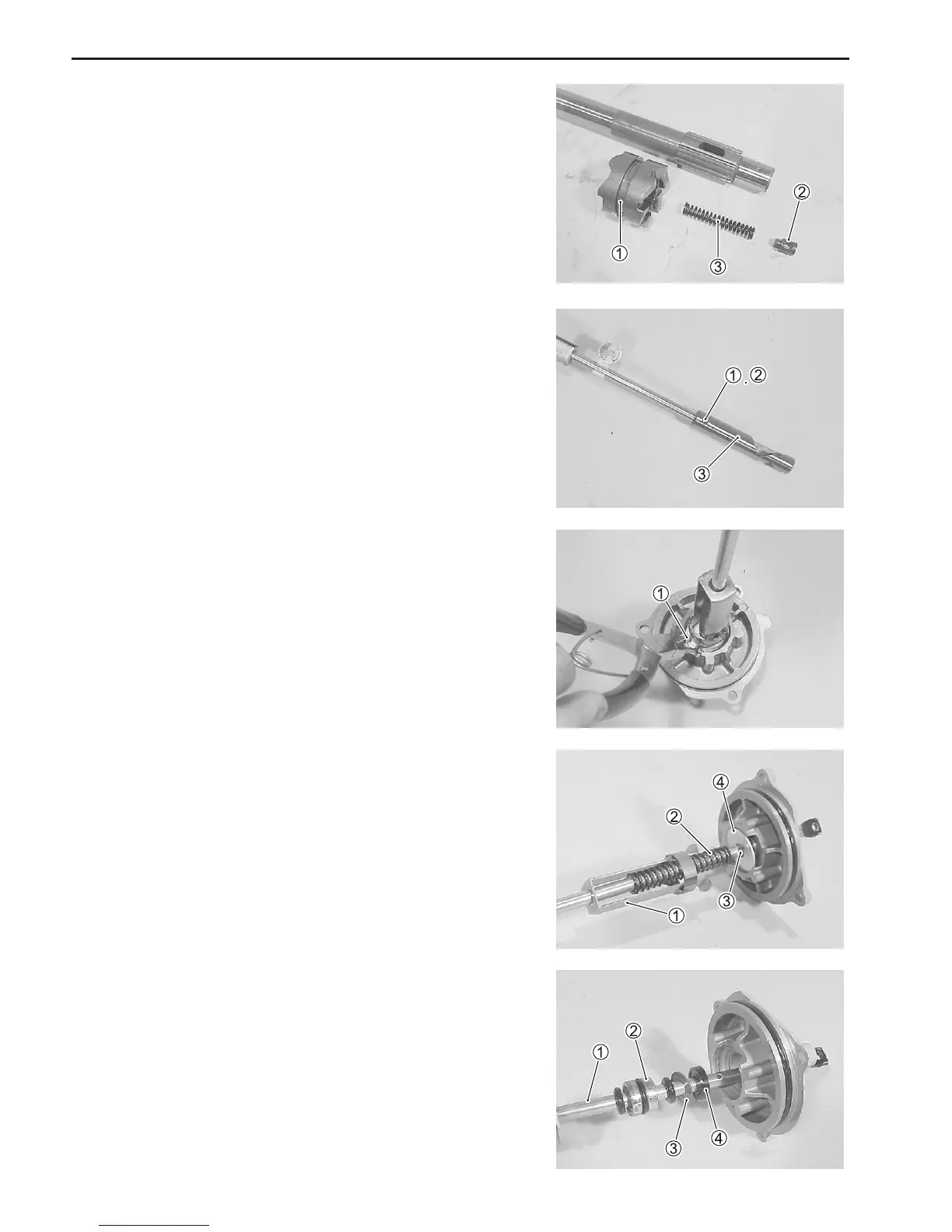

5. Remove the clutch dog shifter 1.
Remove the push pin 2 and the spring 3.
Dissasembly of shift rod components
1. Push the pin 1 and 2 out and remove the clutch cam 3.
2. Remove the circlip 1.
3. Remove the shift rod spring collar 1 by turning it.
Remove the spring 2, the pin 3 and the washer 4.
4. Remove the shift rod 1 from the housing.
Remove the shift rod guide 2 (with the O-ring), the washer
3 and the dust seal 4.
