ELECTRICAL 4-11

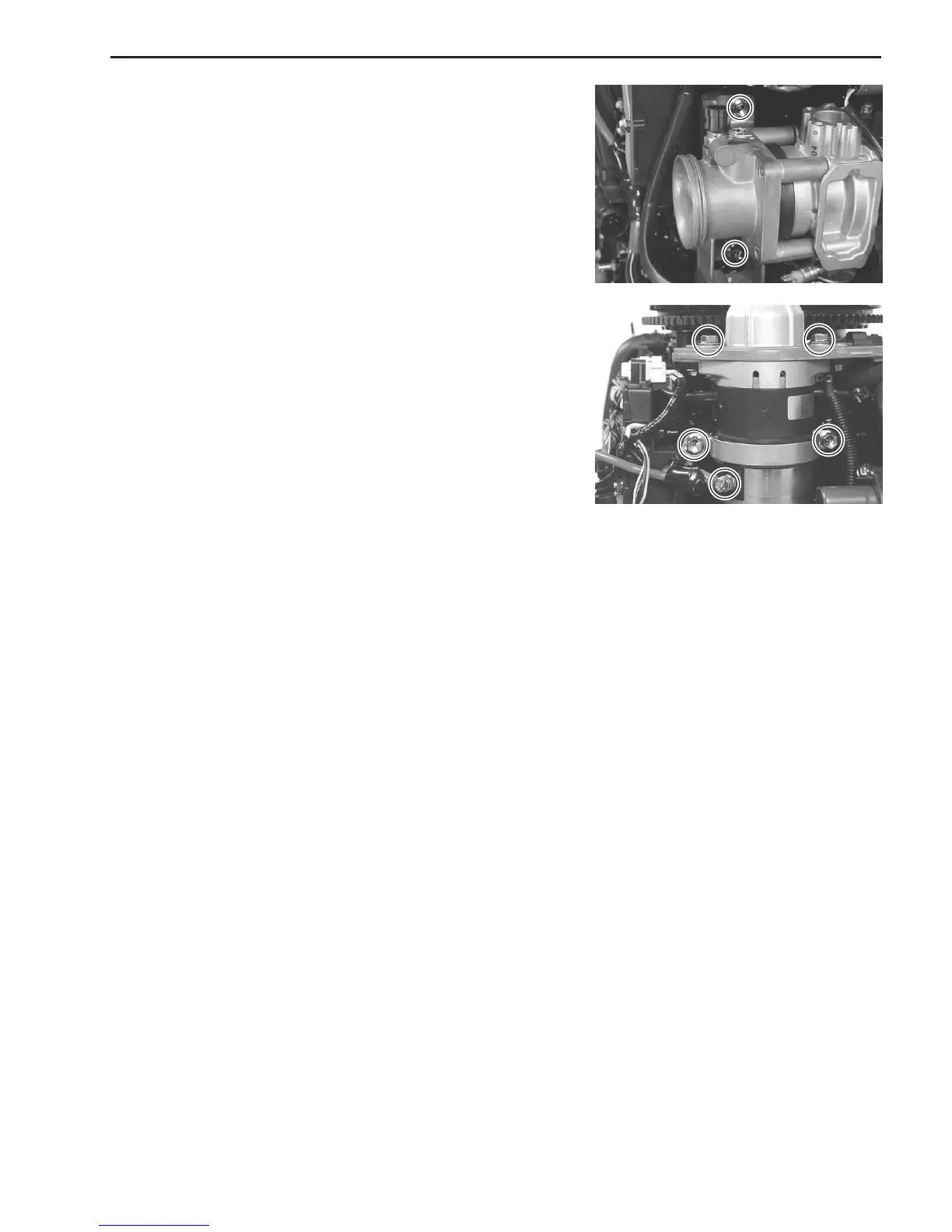

8. Loosen the two silencer bracket bolts.
9. Remove the silencer and the throttle body.
10. Remove the starter motor sub cable.
11. Remove the four bolts, the motor band and the starter motor
assy.
INSTALLATION
Installation is reverse order of removal with the special attention
to the following steps.
• Install the starter motor and tighten the four starter motor mount-
ing bolts securely.
$ Starter motor mounting bolt:
23 N
.
m (2.3 kg-m, 16.5 Ib-ft)
• Install the silencer and the throttle body to the intake manifold
with the six bolts first, then tighten the two silencer bracket
bolts.
To Next Page
