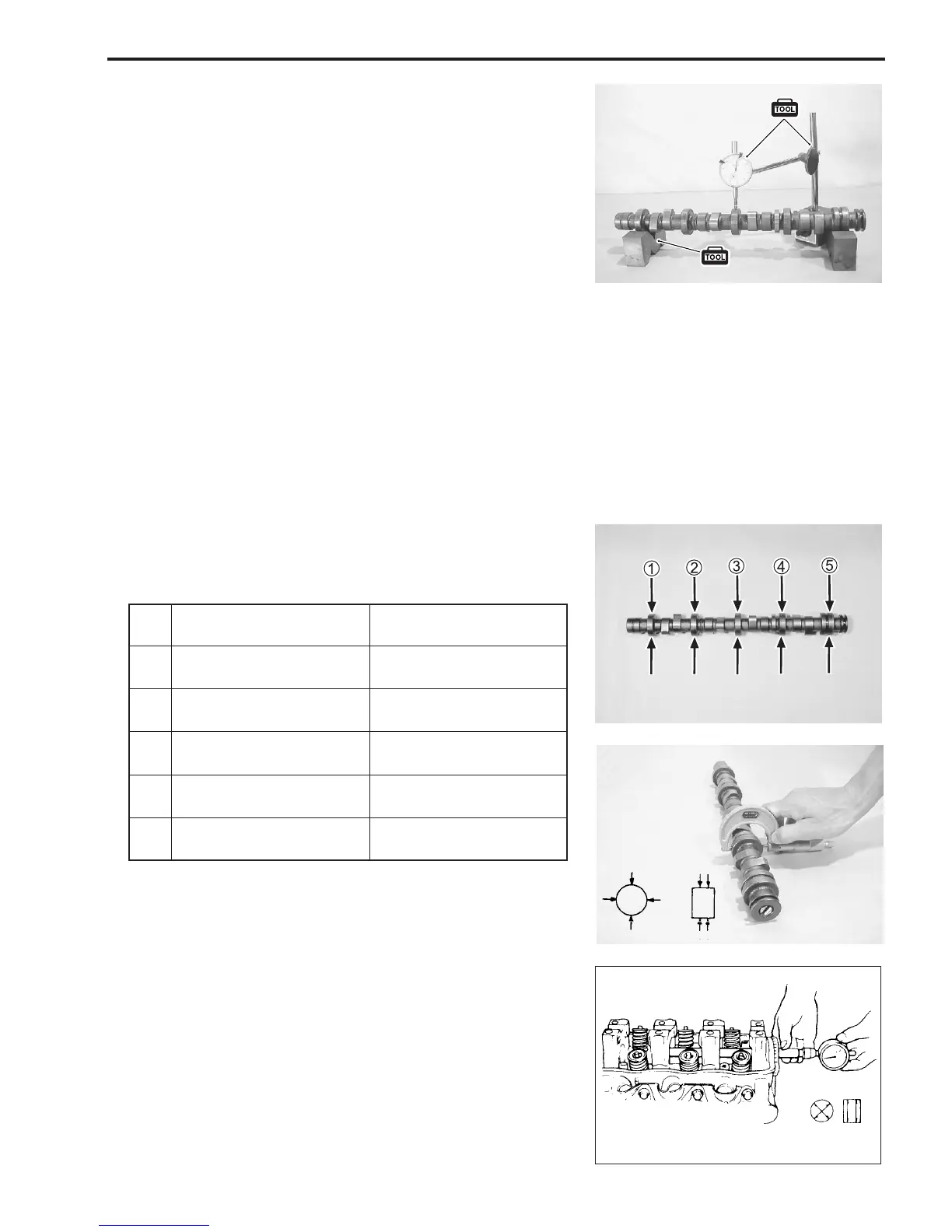

Camshaft runout
Measure the camshaft runout.
$ 09900-20602: Dial gauge
09900-20701: Magnetic stand
09900-21304: Steel “V” block set
Service limit: 0.10 mm (0.004 in)
If the measurement exceeds the service limit, replace the cam-
shaft.
Camshaft journal oil clearance
Standard : 0.050 – 0.091 mm (0.0020 – 0.0036 in)
Service limit: 0.150 mm (0.0059 in)
If the measurement exceeds the service limit, replace the cam-
shaft and/or the cylinder head.
To check the clearance, measure the following items:
• Camshaft journal outside diameter (5 locations)
• Camshaft holder inside diameter (5 locations)
$ 09900-20202: Micrometer
Small bore gauge or Dial calipers
Standard:
Camshaft journal Camshaft holder
outside diameter inside diameter
44.925 – 44.950 mm 45.000 – 45.016 mm
(1.7687 – 1.7697 in) (1.7717 – 1.7723 in)
44.725 – 44.750 mm 44.800 – 44.816 mm
(1.7608 – 1.7618 in) (1.7638 – 1.7644 in)
44.525 – 44.550 mm 44.600 – 44.616 mm
(1.7530 – 1.7539 in) (1.7559 – 1.7565 in)
44.325 – 44.350 mm 44.400 – 44.416 mm
(1.7451 – 1.7461 in) (1.7480 – 1.7487 in)
44.125 – 44.150 mm 44.200 – 44.216 mm
(1.7372 – 1.7382 in) (1.7402 – 1.7408 in)
11
11
1
22
22
2
33
33
3
44
44
4
55
55
5
Posi-
tion
