MID UNIT 7-23

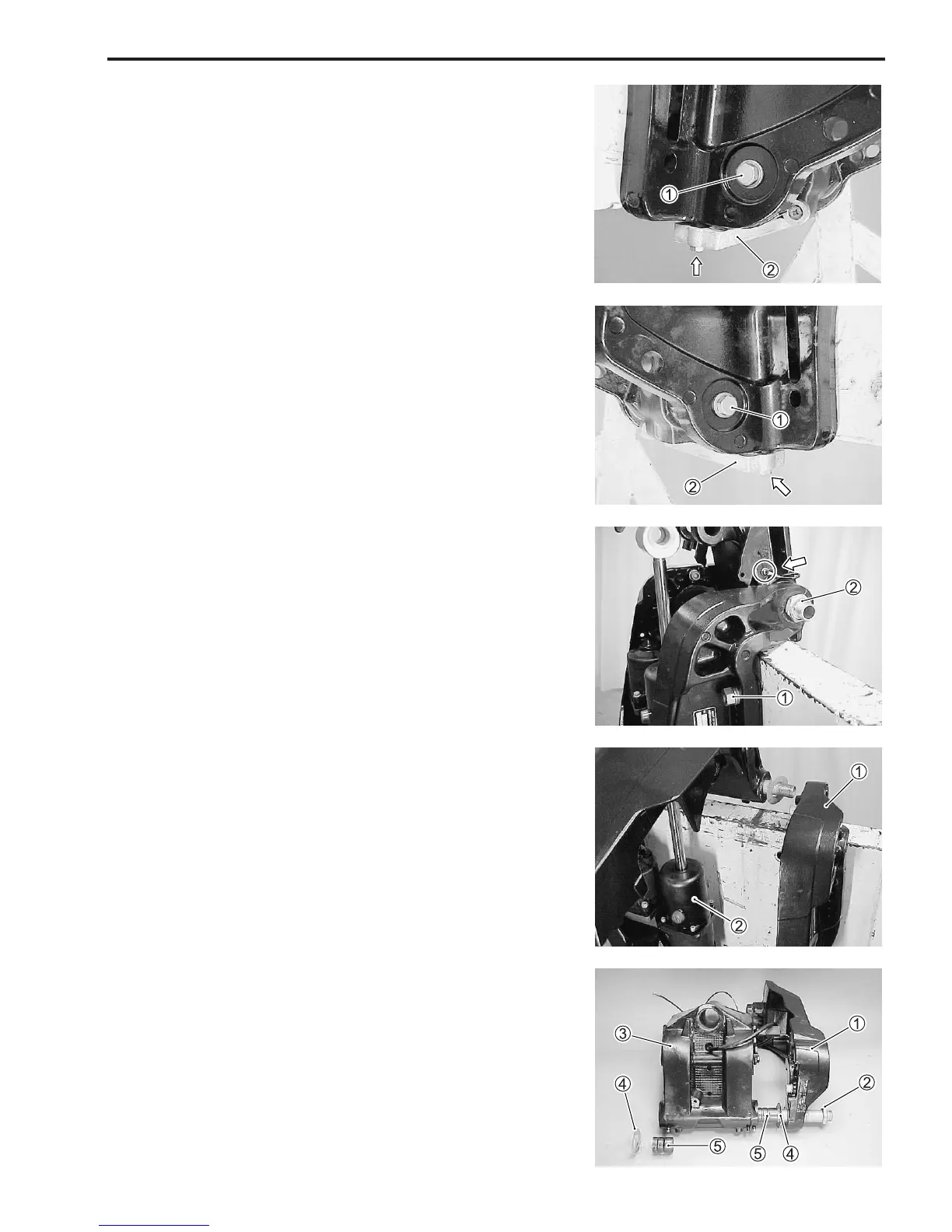

8. Remove the tilt cylinder lower shaft bolts 1.
9. Remove the bolts and anode 2.
10. Remove the starboard motor mounting bolts 1.
11. Remove the clamp bracket shaft nut 2.
12. Remove the screw and bonding wire from the swivel bracket.
13. Slide the starboard clamp bracket 1 off the clamp bracket
shaft.
14. Remove the PTT unit 2 with the lower rod.
15. Pull the port clamp bracket 1 outward to remove the clamp
bracket and the bracket shaft 2 from the swivel bracket 3.
16. Remove the washer 4 and bushing 5 from each side of the
swivel bracket.
