8-6 POWER TRIM AND TILT

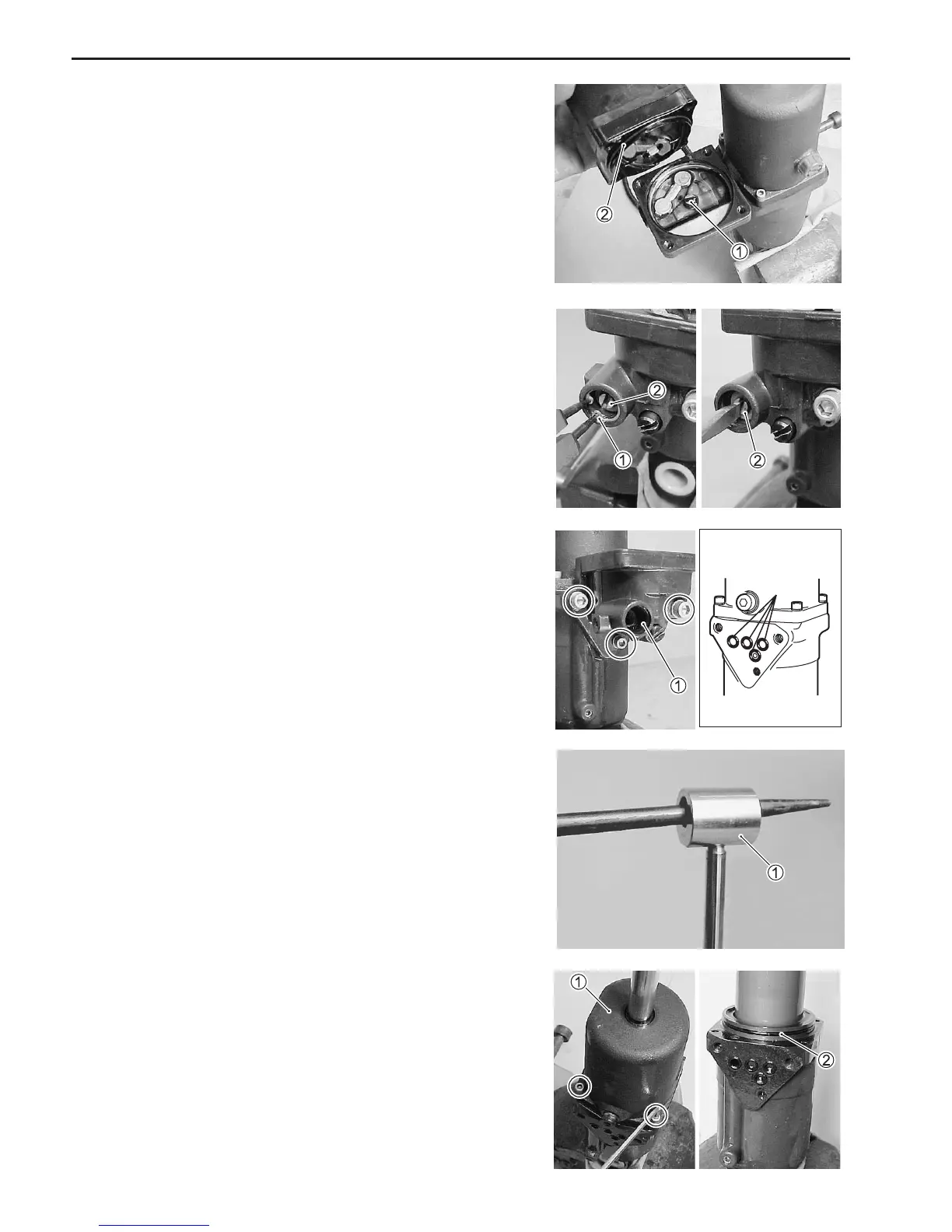

3. Remove the PTT motor. (See the page 8-10)
Note the position of the drive joint 1 and the O-ring 2, be-
fore removing them.
4. Remove the fill plug and drain the PTT oil into a suitable
container.
5. Remove the manual release valve snap ring 1, then remove
the manual release valve 2.
O-ring
6. Remove the three bolts securing the PTT pump case 1, then
detach the PTT pump case from the PTT body.
Note the position of the O-rings and remove them.
7. Remove the upper eye 1.
8. Remove the four bolts securing the cylinder cover 1, then
detach the cover from the PTT body.
9. Remove the O-ring 2.
