POWER TRIM AND TILT 8-23

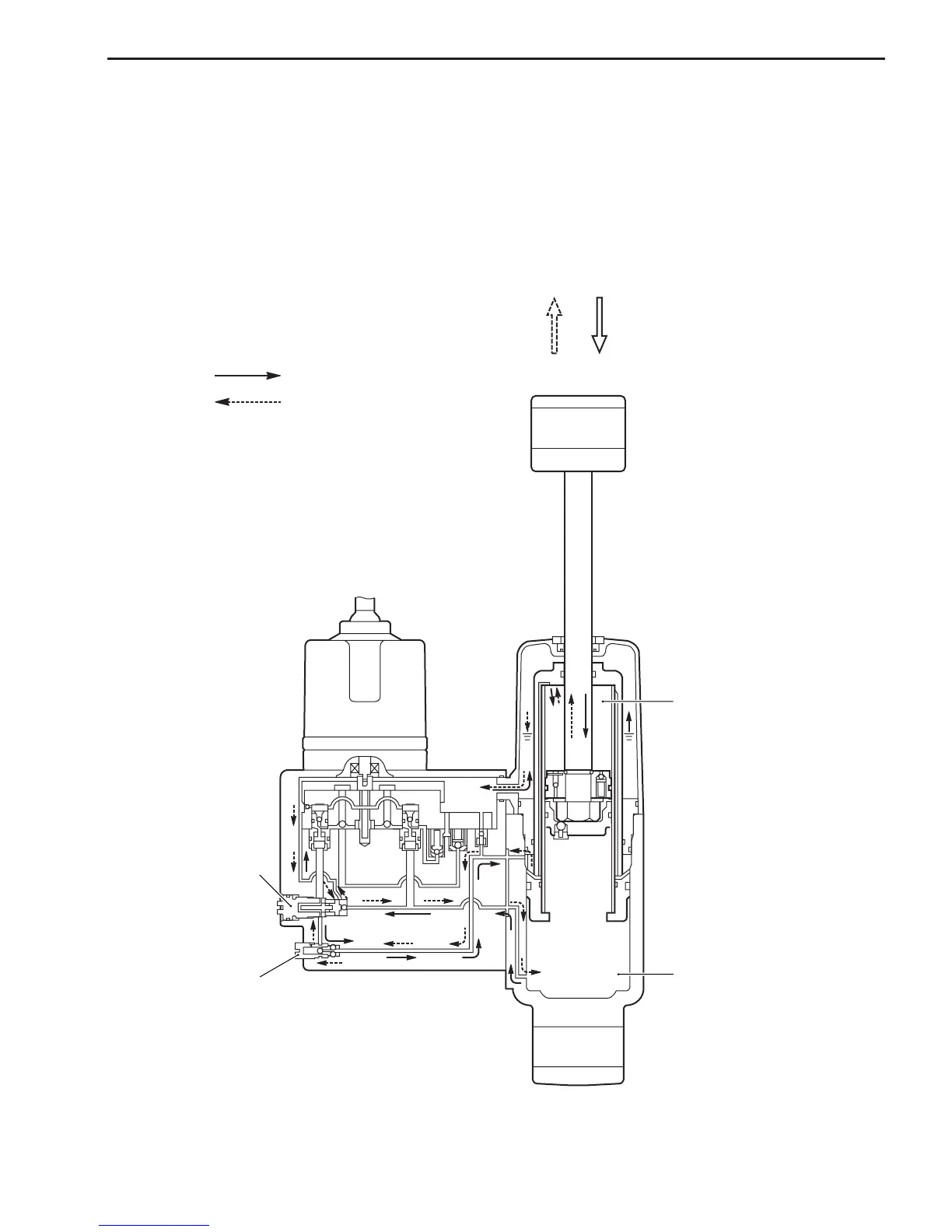

MANUAL RELEASE CIRCUIT (MANUAL VALVE)
Operation: Turn manual valve maximum three (3) full turns counterclockwise.
When the manual valve is loosened, oil will flow unimpeded (without resistance) through the internal pump
tubes, thereby facilitating manual tilting or lowering of the outboard. To hold the engine in a selected position,
the manual valve must be closed again.
Tilt cylinder upper chamber
Lower cylinder chamber
2-way valve
Manual release valve
: Tilt “DOWN”
: Tilt “UP”
