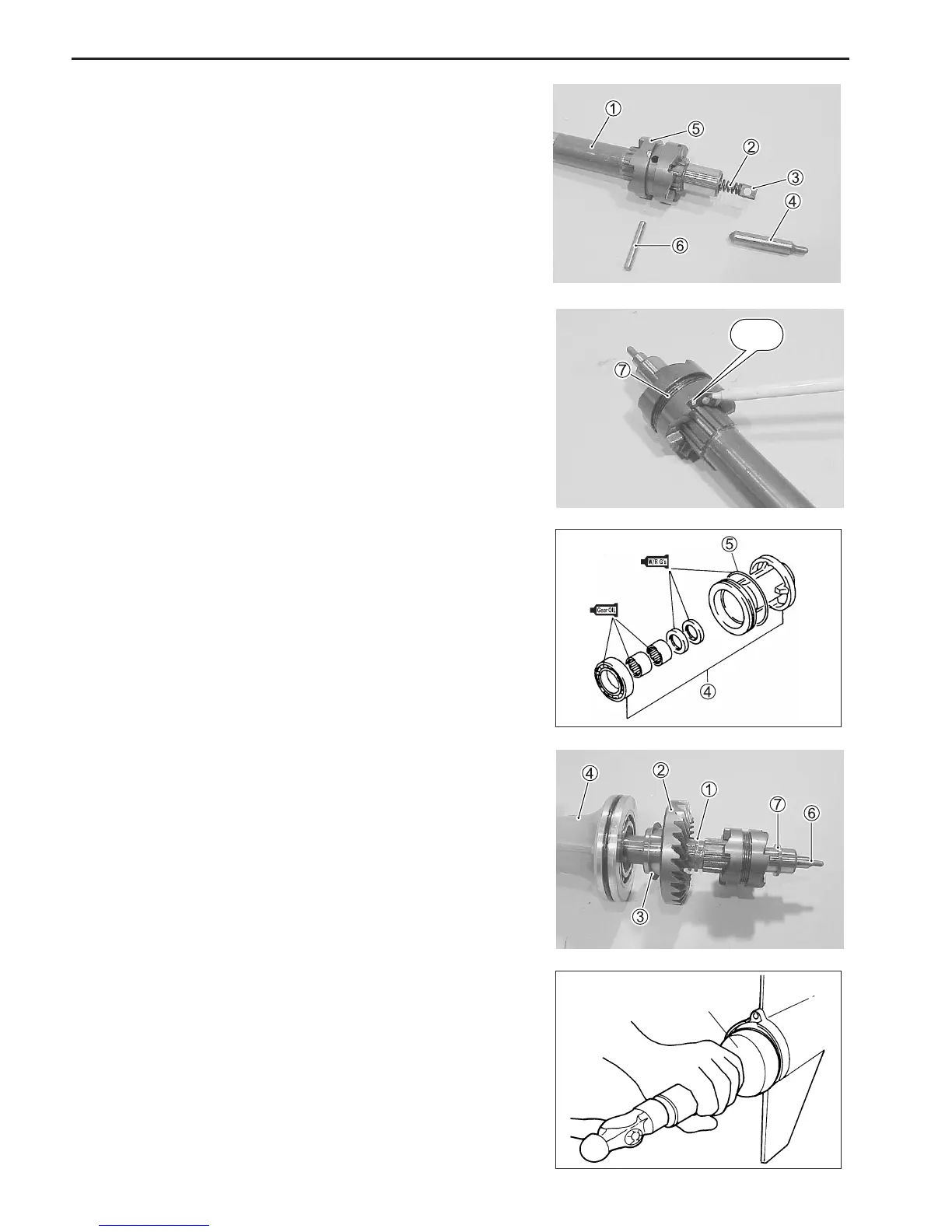

9-18 LOWER UNIT
PROPELLER SHAFT
1. Slide the clutch dog shifter 5 onto the propeller shaft 1.
NOTE:
For correct installation, the side of the clutch dog shifter which
should face toward the reverse gear is marked with the letter “R”.
2. Insert the spring 2, the push pin 3
and the push rod 4 into
the propeller shaft.
3. Align the holes in the clutch dog shifter 5 and the push pin
3, then slide the dog pin 6 through them.
4. Install the dog spring 7, ensuring that it fits snugly into the
groove on the clutch dog shifter.
PROPELLER SHAFT / BEARING HOUSING
1. Install the O-ring 5 to the propeller shaft bearing housing
4.
2. Assemble the propeller shaft in the following sequence:
Forward thrust washer 7
Reverse thrust washer 1
Reverse gear 2
Reverse gear back-up shim 3
Propeller shaft housing 4
$ 99000-25160: Suzuki Water Resistant Grease
% 99000-22540: Suzuki Outboard Motor Gear Oil
3. Using the special tools, install the propeller shaft and the
housing assembly in the gear case.
" 09922-59410: Propeller shaft housing installer
09922-59420: Housing Installer Handle
"
“R”
To Next Page
