LOWER UNIT 9-21

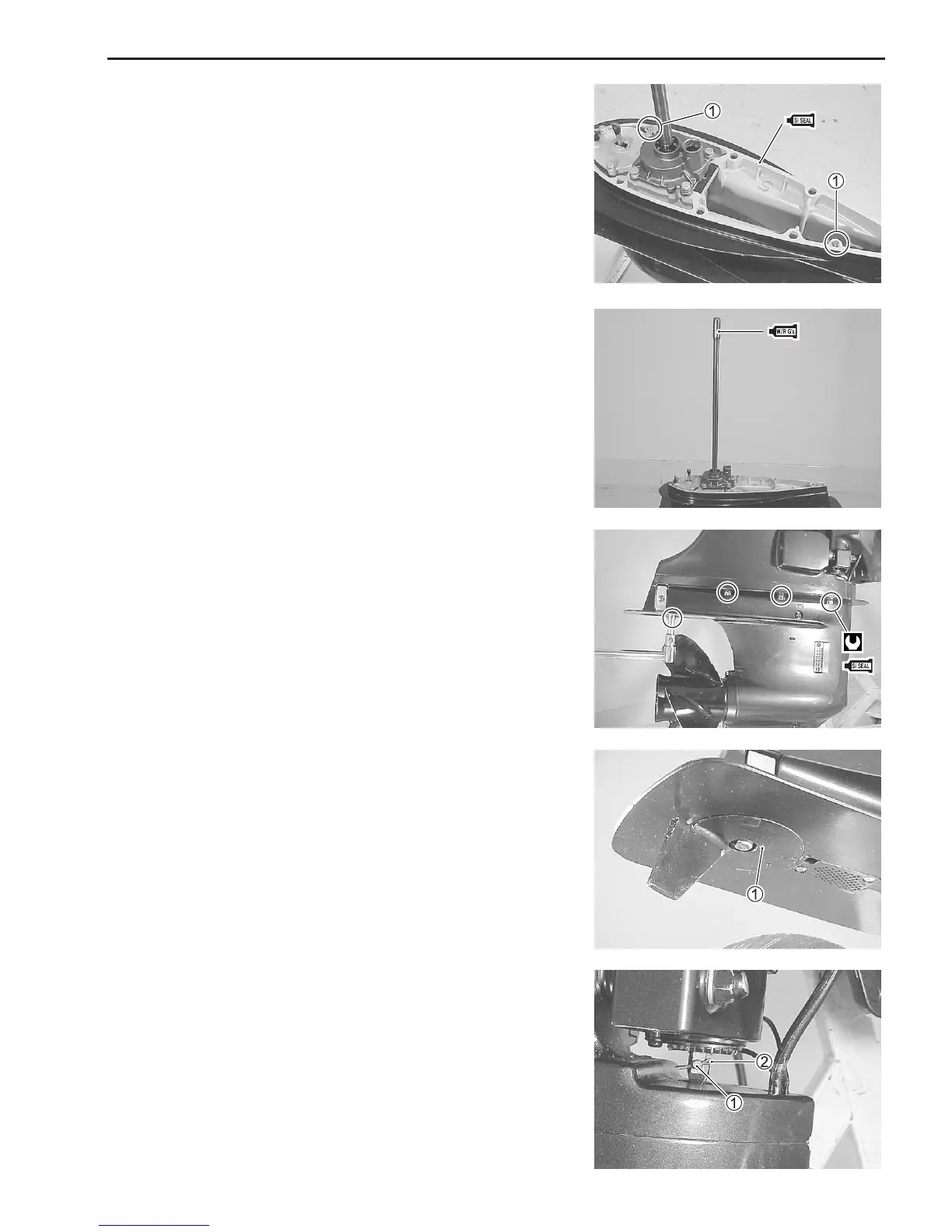

LOWER UNIT INSTALLATION
1. Install the dowel pins 1.
2. Apply the Water Resistant Grease to the driveshaft splines.
3. Apply the Silicone Seal lightly to the mating surfaces of the
gearcase and the driveshaft housing.
4. Slide the gearcase into place, making sure that the top of
the driveshaft engages properly with the crankshaft and the
water tube locates in the water pump case outlet.
$ 99000-25160: Suzuki Water Resistant Grease
( 99000-31120: Suzuki Silicone Seal
5. Apply the Silicone Seal to the seven gearcase bolts and
tighten them to the specified torque.
( 99000-31120: Suzuki Silicone Seal
&&
&&
& Gearcase bolt: 55 N
.
m (5.5 kg-m, 40.0 lb-ft)
6. Install the trim tab 1.
7. Connect the shift rod to the clutch rod with the connector pin
1 and the cotter pin 2.
