7-58 CHASSIS

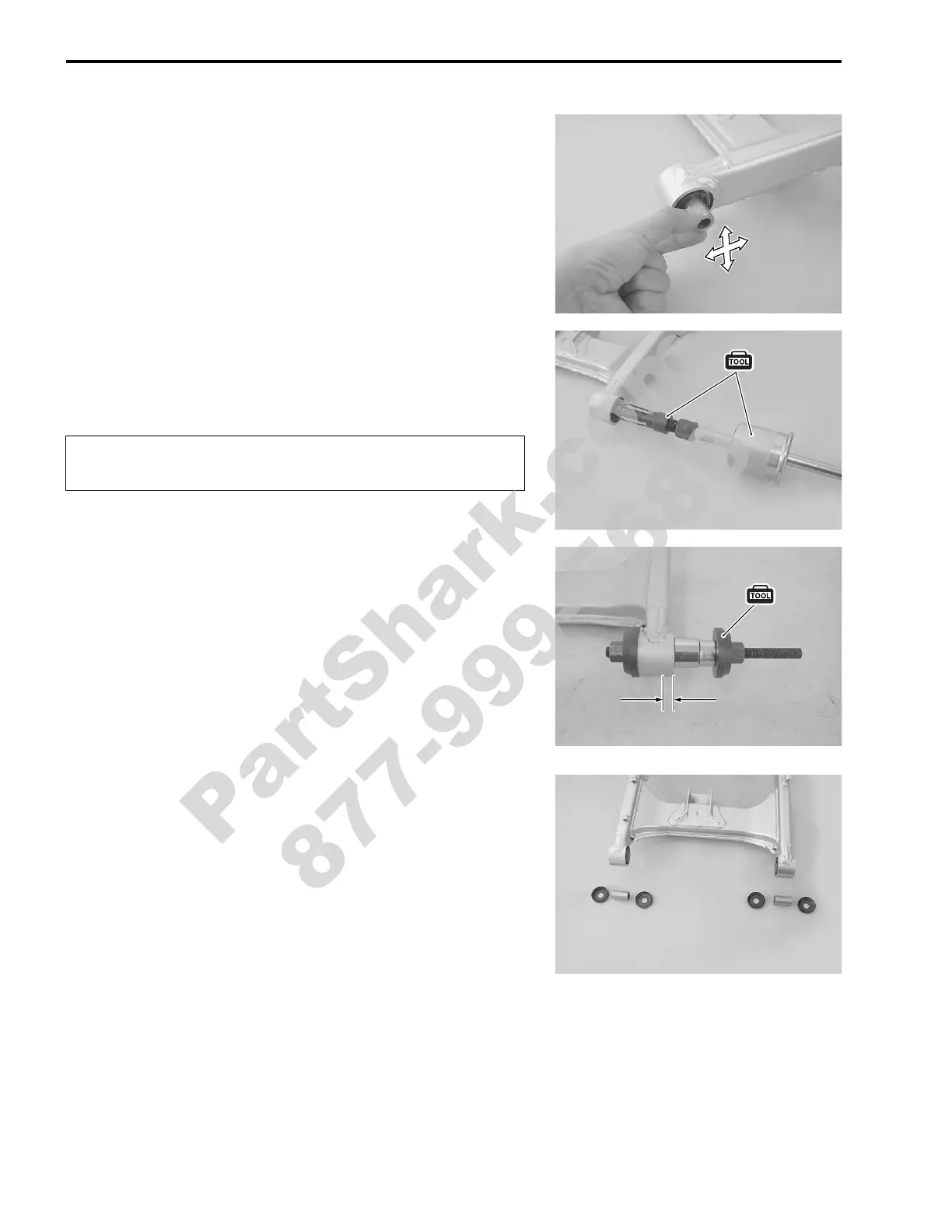

SWINGARM PIVOT BEARING
 Insert the spacer into the swingarm pivot bearings and then
check the play by moving the spacer up and down.
If excessive play is noted, replace the bearing with a new one.
 Remove the swingarm pivot bearing with the special tools.
% 09923-74510: Bearing remover
09930-30104: Sliding shaft
$
REASSEMBLY
SWINGARM PIVOT BEARING AND DUST SEAL
 Press the bearing into the swingarm pivot to the depth of 5.0
mm (0.197 in) from the outside with the special tool and suit-
able socket wrench.
NOTE:
When installing the swingarm pivot bearing, make sure that the
stamped mark faces outside.
% 09924-84510: Bearing installer set
 Apply SUZUKI SUPER GREASE to the bearings, spacers
and ips of the dust covers.
& 99000-25030: SUZUKI SUPER GREASE  A (USA)
99000-25010: SUZUKI SUPER GREASE  A (Others)
 Install the spacers and dust covers to the swingarm.
The removed bearing must be replaced with a new
one.
5.0 mm (0.197 in)
5.0 mm (0.197 in)
PartShark.com
877-999-5686

Suzuki LT-Z250 Specifications

General

Displacement	249 cc
Starting System	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Tires Rear	20 x 10-9
Fuel Capacity	9.5 L
Ignition	CDI
Front Suspension	Independent double-wishbone, coil spring, oil damped
Front Brakes	Hydraulic disc
Tires Front	21x7-10
Length	1, 830mm
Wheelbase	1270 mm
Engine Type	4-stroke, single cylinder
