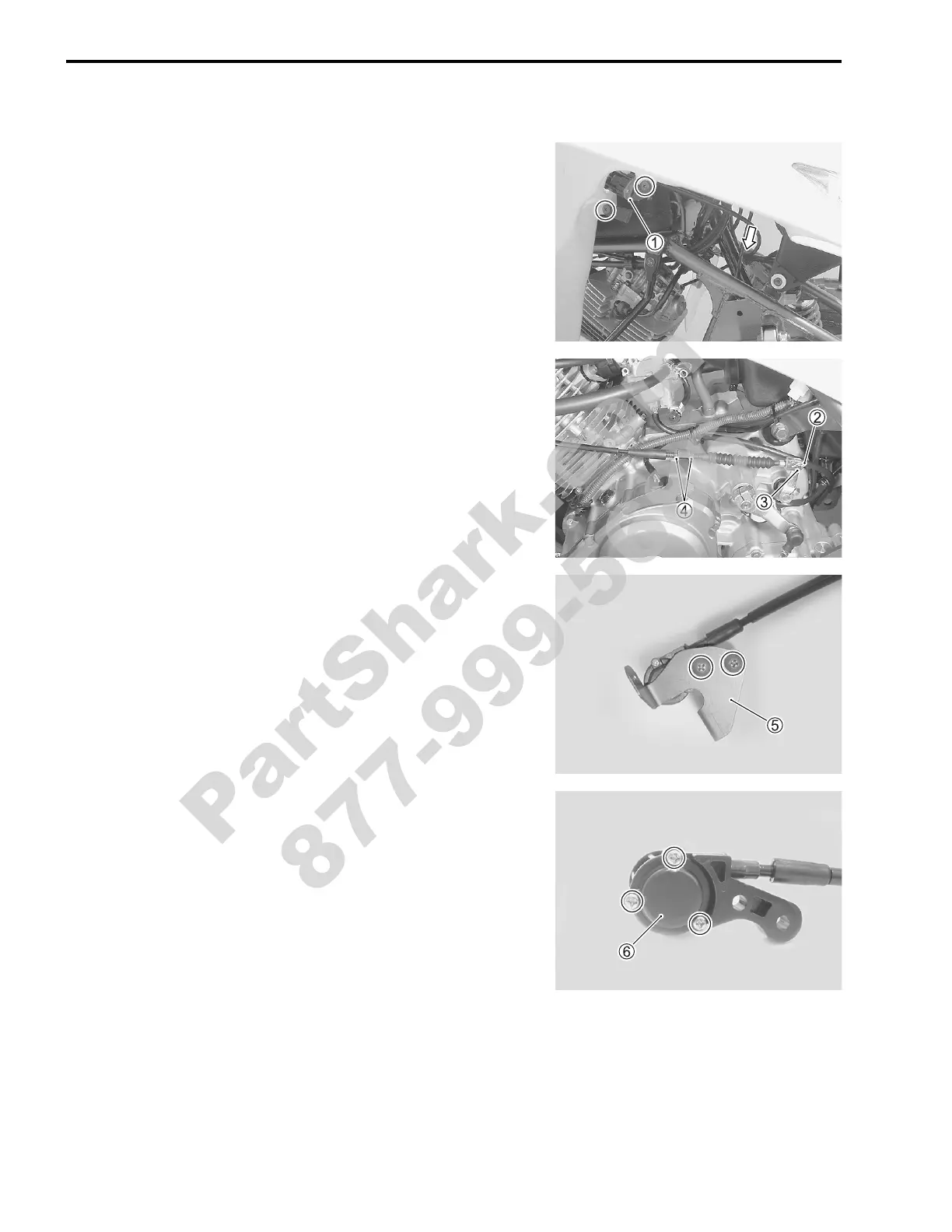

7-64 CHASSIS
REVERSE LOCK RELEASE CABLE
REMOVAL
 Remove the reverse lock release knob
1 from the front
fender.
 Open the fixed clamp.
 Remove the clip
2 and pin
3.
 Loosen the locknuts
4 and remove the reverse lock release
cable.
 Remove the bracket
5.
 Remove the cap
6.
